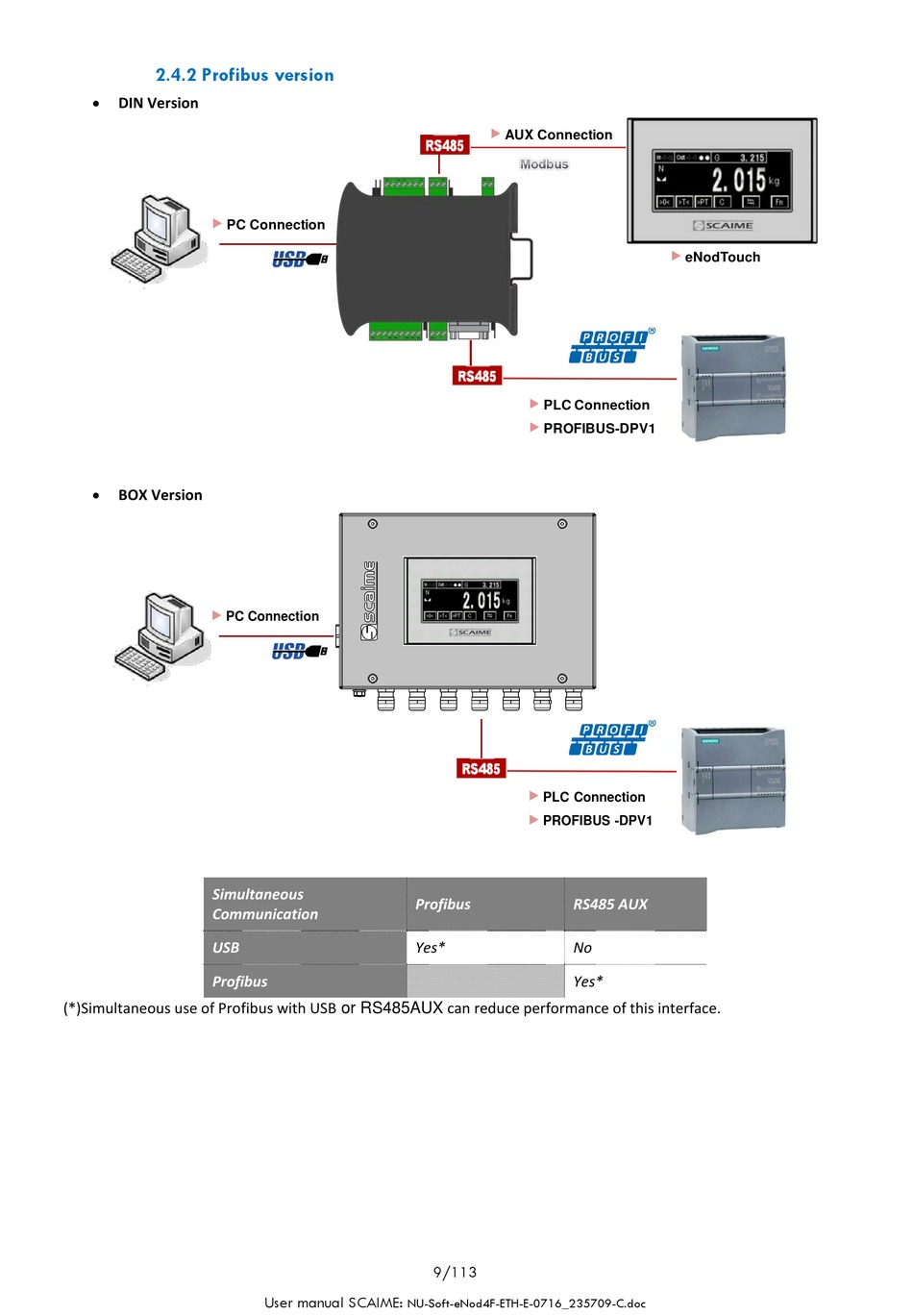

2.4.2 Profibus version

•
DIN Version

PC Connection
•
BOX Version

PC Connection

PC Connection
Simultaneous
Communication
USB
Profibus
(*)Simultaneous use of Profibus with USB or RS485AUX can reduce performance of this interface.
Profibus
Yes*
9/113
User manual SCAIME:
NU-Soft-eNod4F-ETH-E-0716_235709-C.doc

AUX Connection

PLC Connection

PROFIBUS-DPV1

AUX Connection

PLC Connection

PLC Connection

PROFIBUS - DPV1

PROFIBUS-DPV1
RS485 AUX
No
Yes*

eNodTouch

eNodTouch
