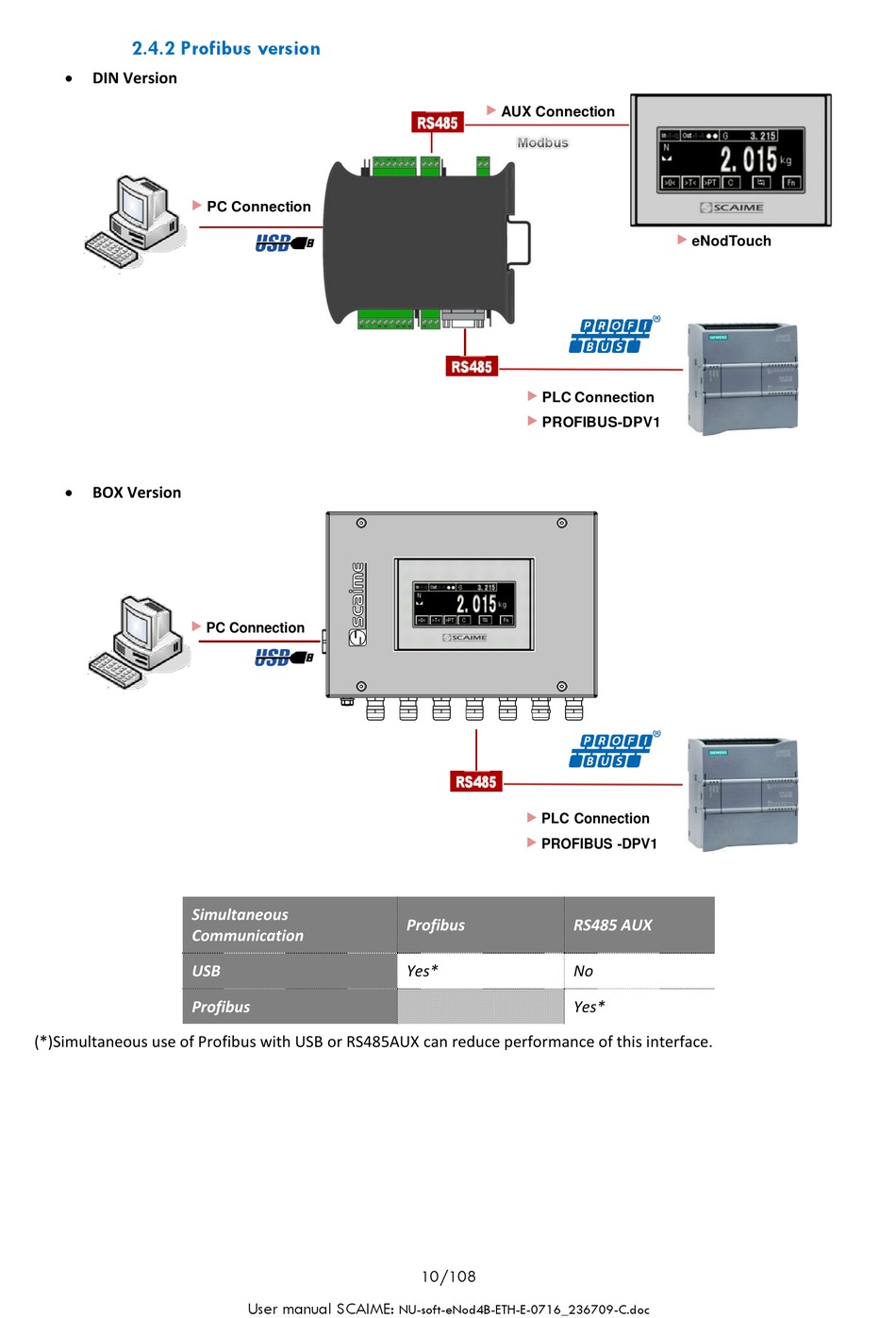

2.4.2 Profibus version
•
DIN Version
•
BOX Version
Simultaneous
Communication
USB
Profibus
(*)Simultaneous use of Profibus with USB or RS485AUX can reduce performance of this interface.
PC Connection
PC Connection
PC Connection
User manual SCAIME:
AUX Connection
PLC Connection
PROFIBUS-DPV1
AUX Connection
PLC Connection
PLC Connection
PROFIBUS-DPV1
PROFIBUS - DPV1
Profibus
Yes*
10/108
NU-soft-eNod4B-ETH-E-0716_236709-C.doc
eNodTouch
eNodTouch
RS485 AUX
No
Yes*
