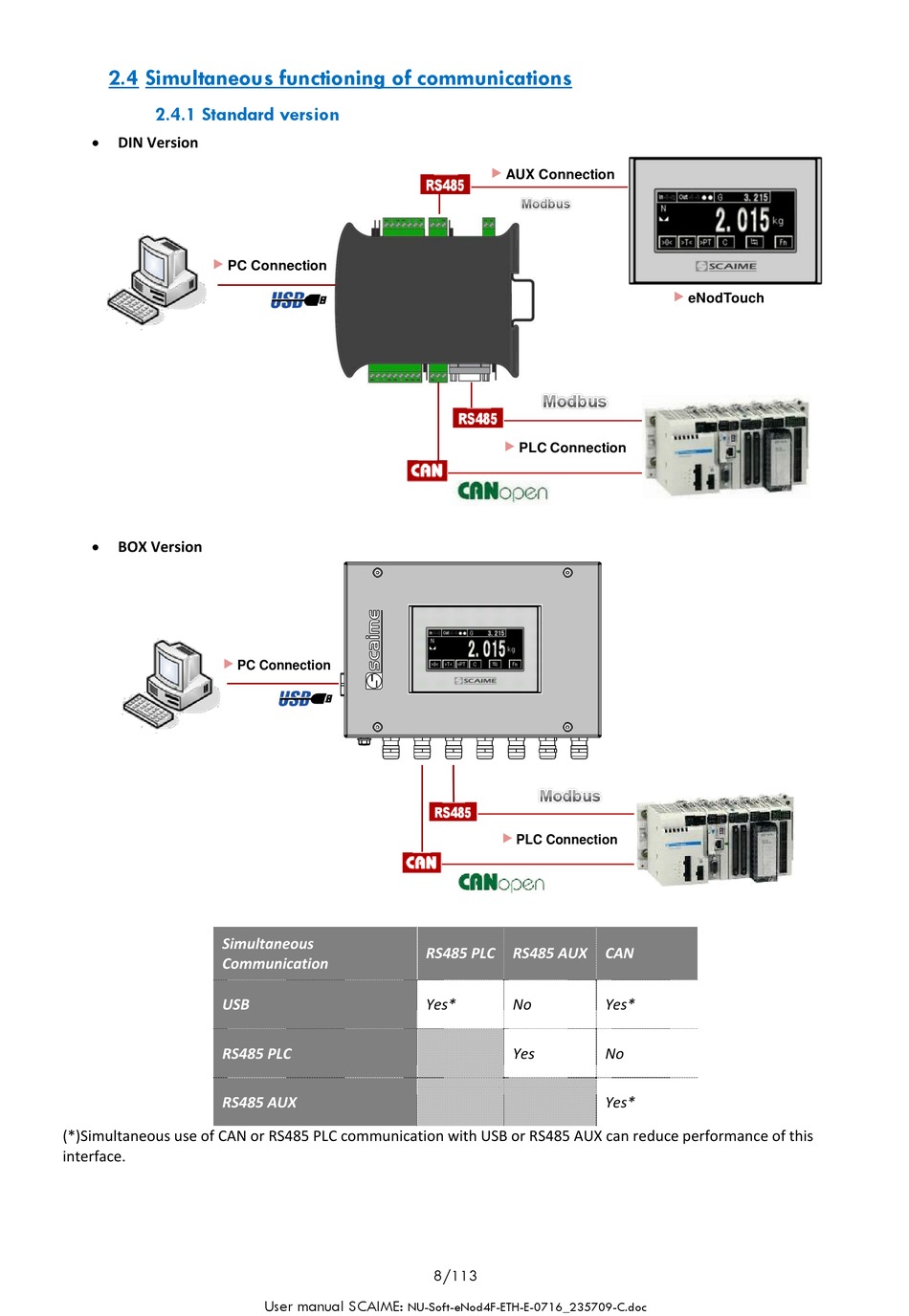

2.4 Simultaneous functioning of communications

2.4.1 Standard version

•
DIN Version

PC Connection
•
BOX Version


Simultaneous
Communication
USB
RS485 PLC
RS485 AUX
(*)Simultaneous use of CAN or RS485 PLC communication with USB or RS485 AUX can reduce performance of this
interface.
