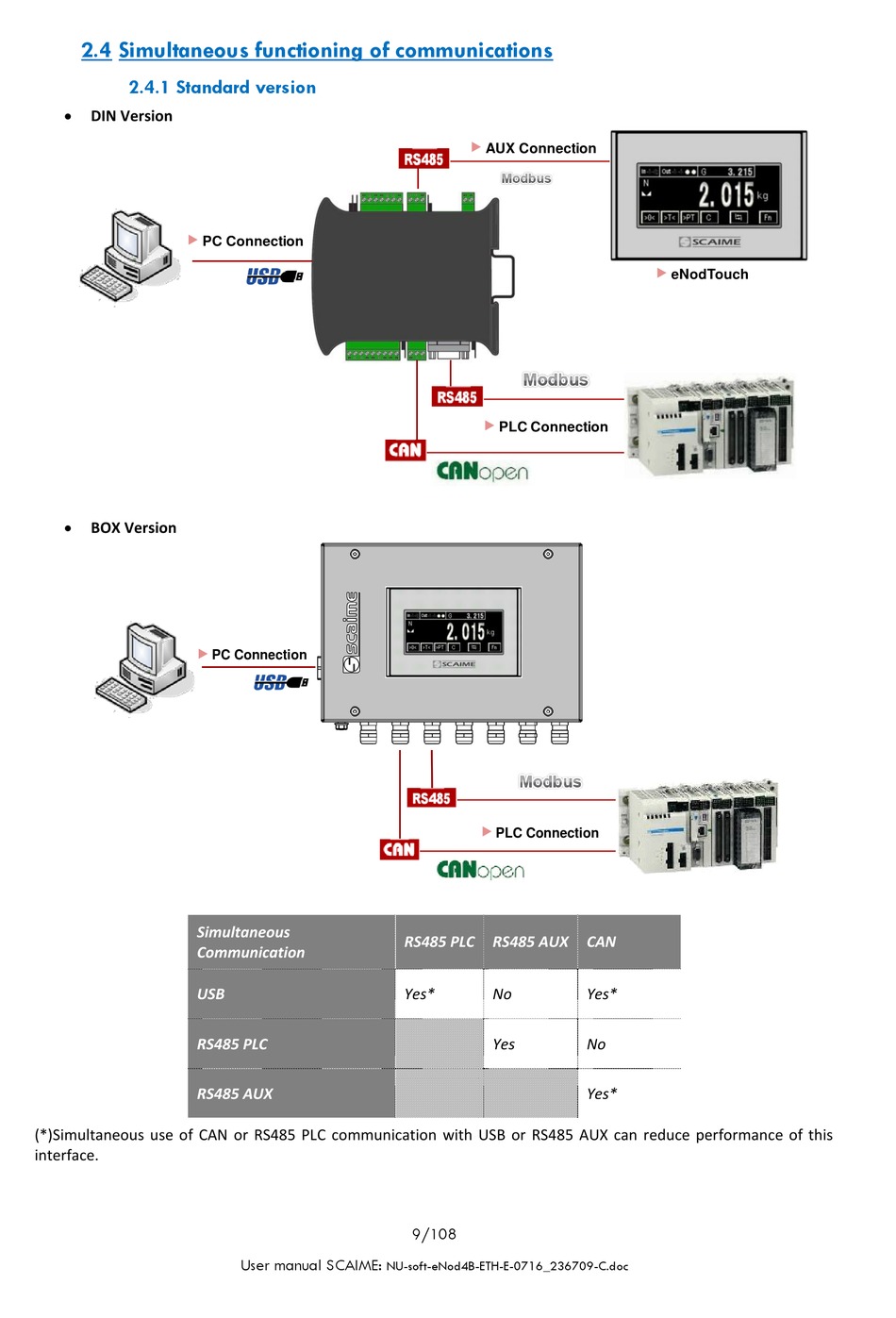

2.4 Simultaneous functioning of communications

2.4.1 Standard version

•
DIN Version

•
BOX Version


Simultaneous
Communication
USB
RS485 PLC
RS485 AUX
(*)Simultaneous use of CAN or RS485 PLC communication with USB or RS485 AUX can reduce performance of this
interface.
PC Connection
PC Connection
PC Connection
User manual SCAIME:

AUX Connection

PLC Connection

AUX Connection


PLC Connection
PLC Connection

PROFIBUS-DPV1
RS485 PLC RS485 AUX
Yes* No
Yes
9/108
NU-soft-eNod4B-ETH-E-0716_236709-C.doc

eNodTouch

eNodTouch
CAN
Yes*
No
Yes*
