SECTION 5: ALARM CONFIGURATION
Picture, Video to Cloud: Check the select box(es) upload alarm images and/or videos to a Cloud server when a PIR
—
event is detected. To enable the Cloud server, please see "7.2 Cloud settings" on page 53.
2. Click Apply to save your settings. You can also click Copy to use the same settings for other camera channels. Right click the
mouse to return to the Live View Main menu.
3. Click the Motion button to (re)configure the motion detection settings for a camera. Options in this menu are the same as
those in the Channel | Motion menu. See "3.2.9 Channel - Motion menu" on page 30 for more information.

5.2 PIR

To open the PIR alarm menu, click the Alarm tile in then Main menu, and then click the PIR link in the left column. Use this menu to

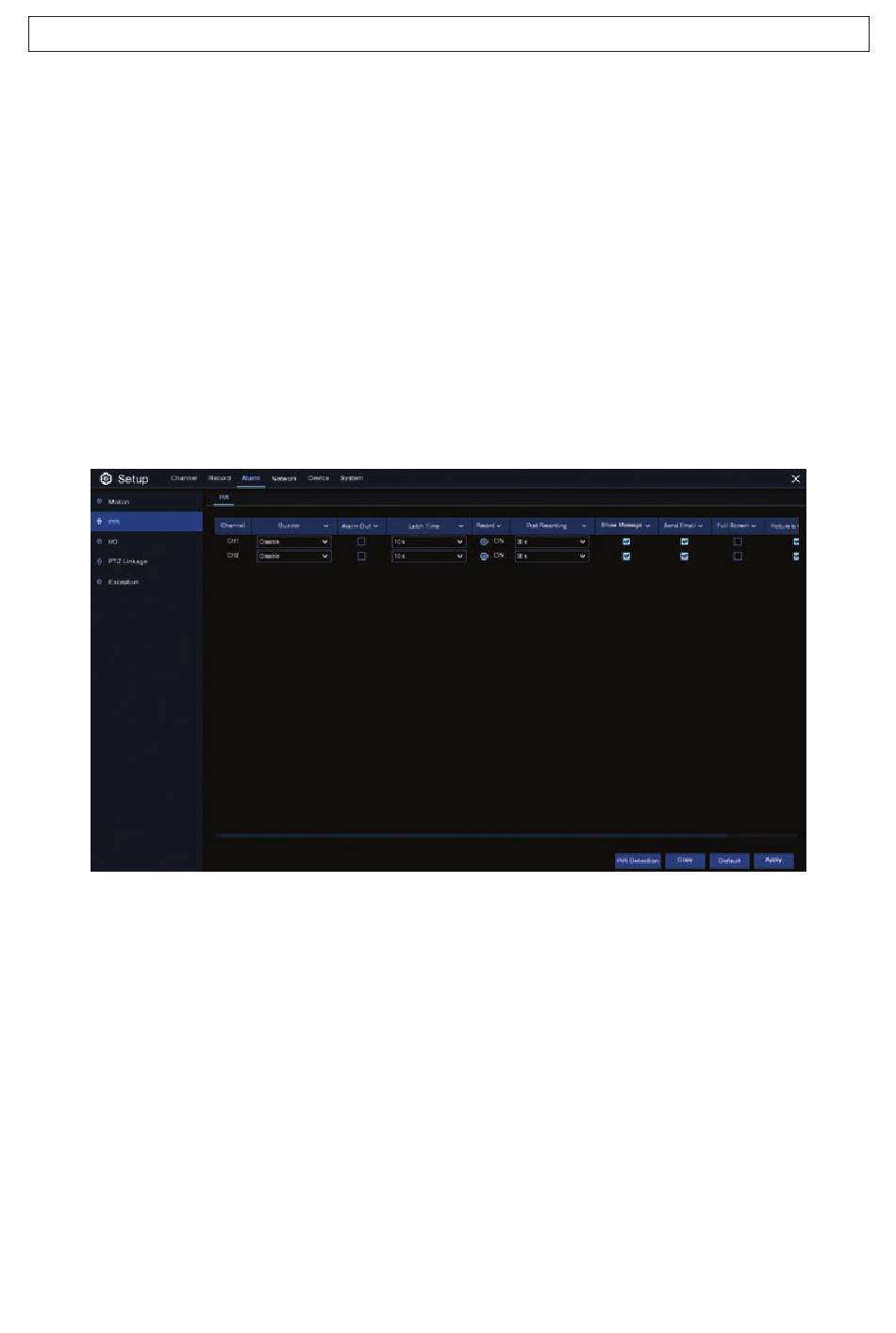

configure how the recorder will react to a PIR detection event. The PIR alarm menu is shown below.
1. Configure the PIR alarm options for the camera you are configuring:
Buzzer: Enable this option to sound an alarm tone when a PIR event is detected. You can set the buzzer duration in
—
seconds when the PIR is detected.
Alarm Out: Not used.
—
Latch Time: Use the Latch Time parameter to set how long the buzzer will sound when the alarm is triggered (10s, 20s,
—
40s, and 60s).
Record: Click the settings icon and choose which channel(s) you want to record when the PIR event is sensed.
—
Post Recording: You can set how long after an event occurs that the NVR will continue to record. The recommended
—
recording length is 30 seconds but it can be set higher up to 5 minutes.
Show Message: Check the select box to display the motion icon on the live view screen when a PIR event is detected.
—
Send Email: You can let the NVR to send you an auto-email when a PIR event is detected. You must configure your email
—
settings to use this feature. See "6.3 Email setup" on page 48.
