N4, N8, N16, N32 Network Video Recorders Quick Setup Guide
This guide provides instructions to initially setup the N4 (4 channel), N8 (8 channel), N16 (16 channel) and N32 (32 channel) network video
recorders (NVRs). The NVRs support these advanced features:
Supports IP cameras with ONVIF and other protocols
•
N4 supports recording bandwidth up to 40 MBps, N8 and N16 support recording bandwidth up to 128 MBps,
•
N32 supports recording bandwidths up to 320 Mbps
Supports recording resolutions of 8 MP, 5 MP, 3 MP, 2 MP (1080P), 1.3 MP (960P), 1.0 MP (720P)
•
H.264/H.265 Video encoding
•
N4, N8, N16 support 1 HDD up to 8TB, N32 supports 4 HDDs up to 8TB
•
Simultaneous HDMI / VGA monitor output
•
Supports HDVision mobile app for iOS and Android
•
DDNS, PoE and P2P remote connectivity
•

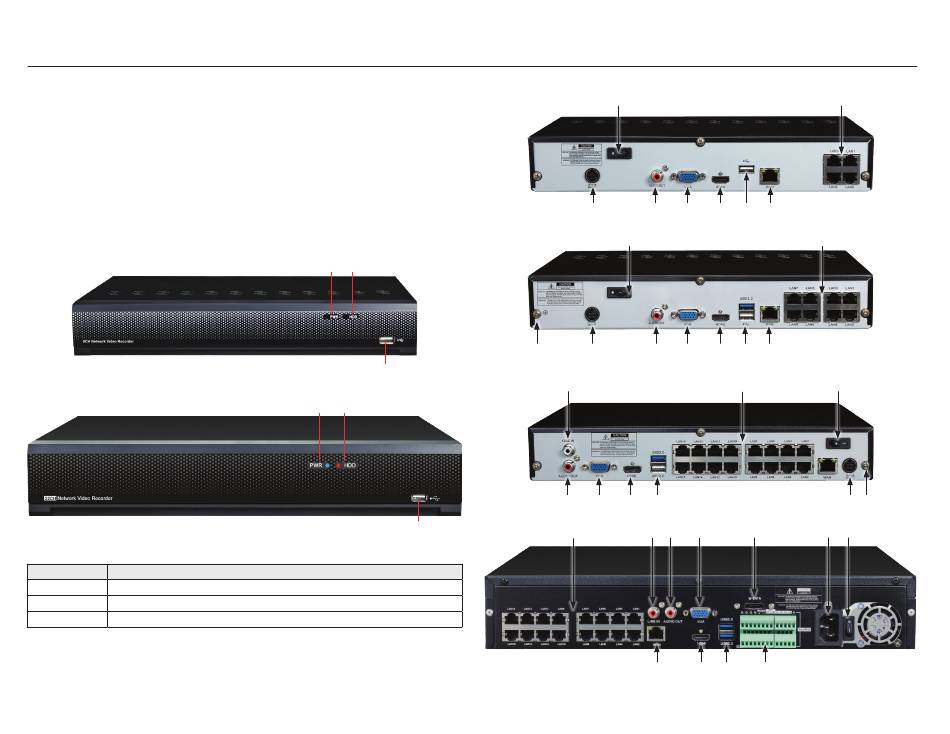

NVR Front Panel
10
Item Usage
Power LED Indicator turns green when NVR is powered up.
HDD in use Indicator turns red when HDD is reading / writing.
USB Interface This port can be used for a USB mouse or USB flash memory devices.
1
Power LED HDD in use
USB Interface
N4, N8, N16 front panels
Power LED HDD in use
N32 front panel
NVR Back panel
3
10
5
USB Interface
2
1
4 5 6 7 8 9
N4 backpanel
1
4 5 6 7 8 9
N8 backpanel
2
6 7 8
N16 backpanel
12
10 5 6
12
9 7 8
N32 backpanel
2
2
1
9 4
11
1
