GPi 3200/4300 Operation

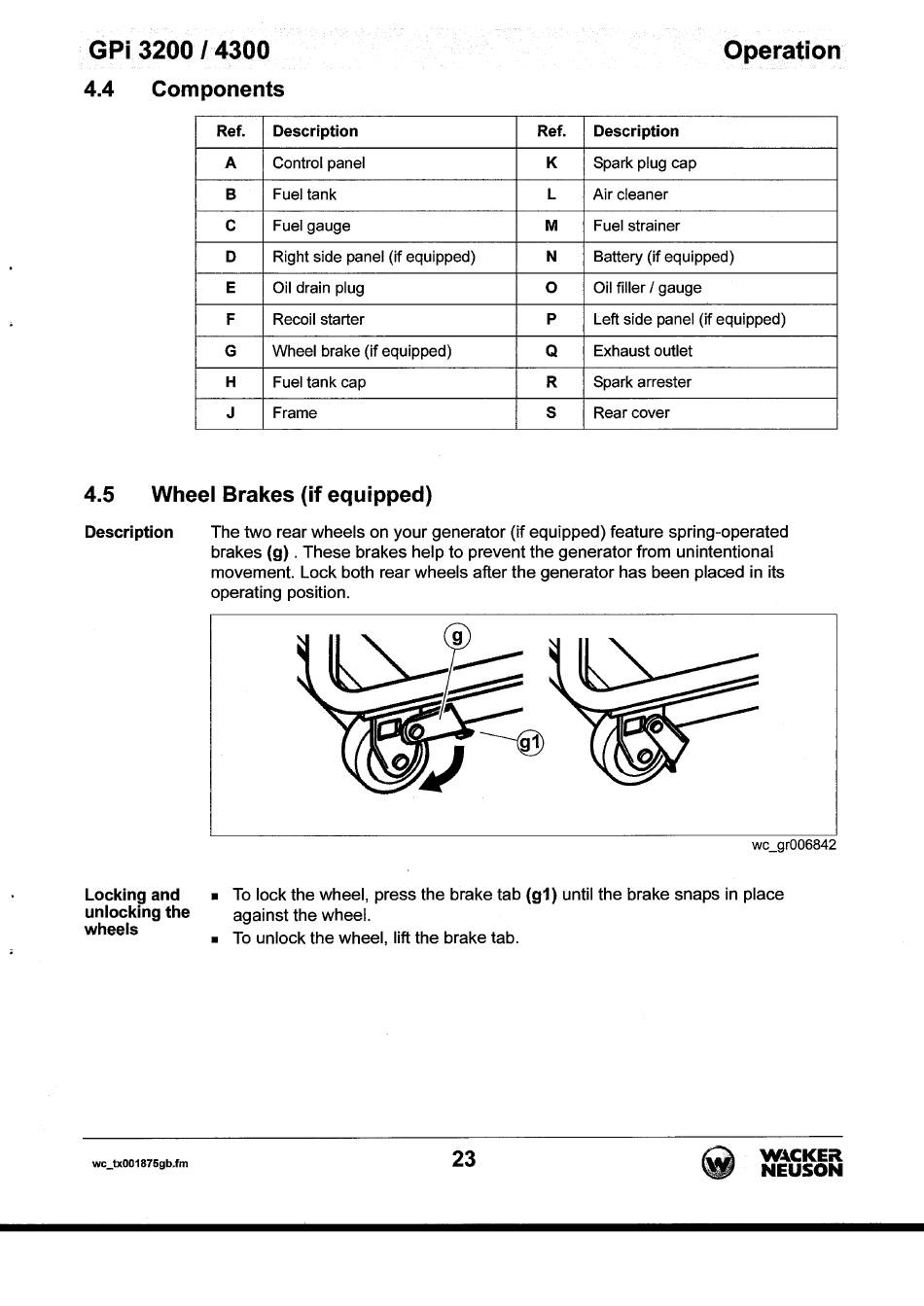

4.4 Components
Ref. Description Ref. Description
A Control panel K Spark plug cap
B Fuel tank L Air cleaner
c
Fuel gauge M Fuel strainer
D
Right side panel (if equipped) N Battery (if equipped)
E Oil drain plug 0 Oil filler I gauge
F
Recoil starter
p
Left side panel (if equipped)
G Wheel brake (if equipped) Q Exhaust outlet
H Fuel tank cap R Spark arrester
J Frame
s
Rear cover
4.5 Wheel Brakes (if equipped)
Description
Locking and
unlocking the
wheels
wc_tx001875gb.fm
The two rear wheels on your generator (if equipped) feature spring-operated
brakes {g) . These brakes help to prevent the generator from unintentional
movement. Lock both rear wheels after the generator has been placed in its
operating position.
wc_gr006842
• To lock the wheel, press the brake tab {g1) until the brake snaps in place
against the wheel.
• To unlock the wheel, lift the brake tab.
23
