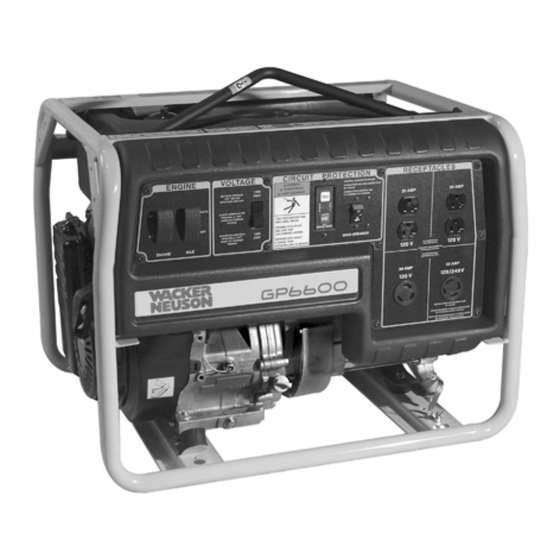

- Page 1 0171950en 0609 Generator GP 6600A GPS 6600A CARB OPERATOR’S MANUAL...
- Page 2 DANGER CARBON MONOXIDE Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This is a poison you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.
-
Page 3: Foreword
Foreword This manual provides information and procedures to safely operate and maintain this Wacker Neuson model. For your own safety and protection from injury, carefully read, understand and observe the safety instructions described in this manual. Keep this manual or a copy of it with the machine. If you lose this manual or need an additional copy, please contact Wacker Neuson Corporation. - Page 4 wc_tx000001gb.fm...
-
Page 5: Table Of Contents
GP/GPS 6600A Table of Contents Foreword California Evaporative Emission Control Warranty Statement 7 Safety Information Laws Pertaining to Spark Arresters ............9 Operating Safety ................10 Operator Safety while using Internal Combustion Engines ....12 Service Safety ..................13 Label Locations .................. 14 Safety and Operating Labels .............. - Page 6 Table of Contents GP/GPS 6600A Maintenance Engine Maintenance ................34 Periodic Maintenance Schedule ............34 Engine Oil ....................35 Servicing Air Cleaner ................36 Spark Plug ...................37 Cleaning the Sediment Cup ..............38 Carburetor Adjustment ................39 Adjusting Engine Speed ..............39 Storage ....................40 4.10 Transport .....................40 4.11 Troubleshooting ...................41 4.12...
-
Page 7: California Evaporative Emission Control Warranty Statement
This EECS is warranted for two years from the initial date of purchase. If any evaporative emission-related part on your equipment is defective, the part will be repaired or replaced by Wacker Neuson Corporation at no charge to you. The owner shall not be charged for... - Page 8 Corporation cannot deny warranty solely for the lack of receipts. As the portable generator owner, you should however be aware that Wacker Neuson Corporation may deny you warranty coverage if your portable generator or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
-
Page 9: Safety Information
GP/GPS 6600A Safety Information Safety Information This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE callouts which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 10: Operating Safety
Safety Information GP/GPS 6600A Operating Safety Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use this generator inside a home or garage, EVEN IF doors and windows are open. - Page 11 GP/GPS 6600A Safety Information 2.2.8 NEVER allow untrained personnel to operate or service the generator. The generator set should be set up by a certified electrician. 2.2.9 NEVER stand on the machine. 2.2.10 DO NOT stand under the machine while it is being hoisted or moved. 2.2.11 DO NOT attach equipment to the machine when it is suspended.
-
Page 12: Operator Safety While Using Internal Combustion Engines
Safety Information GP/GPS 6600A Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below. Failure to follow the WARNING warnings and safety standards could result in severe injury or death. -
Page 13: Service Safety
GP/GPS 6600A Safety Information Service Safety Poorly maintained equipment can become a safety hazard! In order for the equipment to operate safely and properly over a long period of time, periodic maintenance and occasional repairs are necessary. If WARNING the generator is experiencing problems or is being serviced, attach a “DO NOT START”... -
Page 14: Label Locations
Safety Information GP/GPS 6600A Label Locations wc_si000239gb.fm... -
Page 15: Safety And Operating Labels
GP/GPS 6600A Safety Information Safety and Operating Labels Wacker Neuson machines use international pictorial labels where needed. These labels are described below: Label Meaning WARNING! Hot surface! CAUTION Lifting point. Electrical ground Press circuit breaker switch to OFF position. Check the fuel level. - Page 16 Safety Information GP/GPS 6600A Label Meaning Open the fuel flow valve. Press engine switch to ON position. GPS - Press ignition switch. GP - Pull the rewind starter. Press circuit breaker switch to ON position. Press engine switch to OFF position. Close the fuel flow valve.
- Page 17 GP/GPS 6600A Safety Information Label Meaning Only use OUTSIDE and far away from win- dows, doors, and vents. WARNING! To reduce the risk of electrical shock and arc flash, read the Operator’s Manual. Improper connection of the generator to a building’s electrical system can allow electrical current from the generator to backfeed into utility lines.
- Page 18 Safety Information GP/GPS 6600A Label Meaning DANGER! No sparks, flames or burning objects near machine. Shut off the engine before refueling. Read the Operator’s Manual for machine information. WARNING Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required.
-
Page 19: Operation
Check with your nearest Wacker Neuson dealer, or contact the manufacturer or dealer of the tool or appliance, with questions regarding its power requirements. -
Page 20: Installation
Operation GP/GPS 6600A Installation Place the generator in an area where it will not be exposed to rain, snow, or direct sunlight. Make sure it is positioned on firm, level ground, so it will not slide or shift. Position the engine exhaust away from areas where people may be present. -
Page 21: Battery Installation (Gps Only)
GP/GPS 6600A Operation Battery Installation (GPS only) 3.4.1 Align the holes found in the battery tray (a) to the holes on the frame cross-member 3.4.2 Insert M8 x 14 screws (b) through the tray then through the holes of the cross-member. 3.4.3 Insert the nuts (c) onto the screws and tighten. -
Page 22: Wheel Kit
Operation GP/GPS 6600A Wheel Kit The wheel kit (Part No. 0161308) is a standard item on Item Number 0620012, 0620015, 0620043 and 0620046 only. It is available as an option on all other models. 3.5.1 Hoist the generator, and align the axle (c) with the lower cross-member of frame. - Page 23 GP/GPS 6600A Operation wc_tx000791gb.fm...
-
Page 24: Generator Derating
Operation GP/GPS 6600A Generator Derating All generators are subject to derating for altitude and temperature. Internal combustion engines, unless modified, run less efficiently at higher altitudes due to the reduction of air pressure. This translates into a lack of power and thus reduction in generator output. Temperature affects both engine and generator performance. -
Page 25: Grounding The Generator
GP/GPS 6600A Operation Grounding the Generator A ground connection (a) is located on the generator frame. For proper operating safety, this ground terminal must be connected to a good ground source. This ground connection must comply with National Electrical Code standards, and state and local regulations. wc_gr000544 Operating Heavy Loads Limit operations requiring the maximum rated output of 6600 W to 20–... -
Page 26: Use Of Extension Cords
Operation GP/GPS 6600A Use of Extension Cords When a long extension cord is used to connect an appliance or tool to the generator, a voltage loss occurs—the longer the cord, the greater the voltage loss. This results in less voltage being supplied to the appliance or tool and increases the amount of current draw or reduces performance. -
Page 27: Control Panel
GP/GPS 6600A Operation 3.10 Control Panel Ref. Description Ref. Description Engine Switch GFCI test button Auto Idle Switch GFCI reset button Twist-lock receptacle - 120V Twist-lock receptacle - 120/240V Main Circuit Breaker Ignition Switch (GPS only) Voltage Selector Switch 20A circuit breaker (CAN only) Duplex receptacle - 120V 30A circuit breaker (CAN only) wc_gr003143... -
Page 28: Ground Fault Circuit Interrupter (Gfci)
Operation GP/GPS 6600A 3.11 Ground Fault Circuit Interrupter (GFCI) The GFCI should be tested for proper operations every time the generator is used. Normal operating state - sensing device green LED is “ON” and circuit breaker is at “ON” position. 3.11.1 Press “TEST”... -
Page 29: Twist-Lock Receptacles
GP/GPS 6600A Operation 3.12 Twist-Lock Receptacles Twist-lock receptacles (c, j) are used at the 120V Amp and 120/240V outlets. These receptacles are protected by the GFCI. To attach a power cord to a twist-lock receptacle, insert plug into receptacle and turn it clockwise to lock it in place. 3.13 Engine Auto Idle The auto idle switch (b) automatically reduces engine speed approximately 7 seconds after all appliances or tools attached to the... -
Page 30: Voltage Selection
Operation GP/GPS 6600A 3.15 Voltage Selection The voltage selector switch (e) allows the generator to operate in either single (120V) or dual voltage (120/240V) mode. In single-voltage mode, use only the 120V twist-lock (c) and duplex receptacles (f1, f2). The full rated power of the generator is shared between the three receptacles. -
Page 31: Before Starting
GP/GPS 6600A Operation 3.16 Before Starting 3.16.1 Read and understand the safety and operating labels and instructions at the beginning of this manual. 3.16.2 Inspect the generator for any signs of damage which may affect operation or pose a safety hazard. 3.16.3 Check: •... -
Page 32: To Start
Operation GP/GPS 6600A 3.17 To Start Before starting, be sure you read and understand all the safety and operating instructions in this manual. 3.17.1 Ensure that the generator is properly installed in an outdoor location. See Sections Installation and Operator Safety while using Internal Combustion Engines for installation warnings and safety guidelines. -
Page 33: To Stop
GP/GPS 6600A Operation wc_gr002500 3.18 To Stop 3.18.1 Turn off and disconnect all tools and appliances attached to the generator. 3.18.2 Place the main circuit breaker in the OFF position (a2). 3.18.3 Turn the engine switch to “OFF” (b2). 3.18.4 Close the fuel valve (d2). Note: To stop the engine quickly in an emergency, turn or press the engine switch to “OFF”... -
Page 34: Maintenance
Maintenance GP/GPS 6600A Maintenance Engine Maintenance The chart below lists basic machine and engine maintenance. Refer to your engine operator’s manual for additional information on engine maintenance. Periodic Maintenance Schedule Daily After Every Every Every before first starting 20 hrs. hrs. -
Page 35: Engine Oil
GP/GPS 6600A Maintenance Engine Oil 4.3.1 Drain the oil while the engine is still warm. 4.3.2 Remove the oil filler plug (a) and the drain plug (b) to drain the oil. Note: In the interests of environmental protection, place a plastic sheet and a container under the machine to collect any liquid that drains off. -
Page 36: Servicing Air Cleaner
Maintenance GP/GPS 6600A Servicing Air Cleaner Service the air cleaner frequently to prevent carburetor malfunction. NOTICE: NEVER run the engine without the air cleaner. Severe engine damage will occur. NEVER use gasoline or other types of low flash-point solvents for cleaning the air cleaner. -
Page 37: Spark Plug
GP/GPS 6600A Maintenance Spark Plug Clean or replace the spark plug as needed to ensure proper operation. Refer to your engine operator’s manual. The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot. WARNING Note: Refer to section “Technical Data”... -
Page 38: Cleaning The Sediment Cup
Maintenance GP/GPS 6600A Cleaning the Sediment Cup 4.6.1 Turn the fuel valve off. 4.6.2 Remove the sediment cup (a) and the O-ring (b). 4.6.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall them. 4.6.4 Turn the fuel valve on and check for leaks. wc_gr000029 wc_tx000799gb.fm... -
Page 39: Carburetor Adjustment
GP/GPS 6600A Maintenance Carburetor Adjustment 4.7.1 Start the engine and allow it to warm up to operating temperature. Set the pilot screw (a) two turns out. See Note. 4.7.2 4.7.3 With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm. -
Page 40: Storage
Maintenance GP/GPS 6600A Storage Before storing the generator for a long period of time: 4.9.1 Close the fuel valve and remove and empty the sediment cup or fuel strainer. 4.9.2 Disconnect the fuel line from the carburetor. Place the open end of the fuel line into a suitable container and open the fuel valve to drain the fuel from the tank. -
Page 41: Troubleshooting
GP/GPS 6600A Maintenance 4.11 Troubleshooting Problem / Symptom Reason / Remedy If engine doesn't start, check • Engine switch is on “Start”. that: • Fuel valves under fuel tank and on engine are open. • Fuel tank has fuel. • Choke lever is in correct position. Choke should be closed when starting a cold engine. -
Page 42: Wire Colors
Maintenance GP/GPS 6600A 4.12 Wire Colors Wire Colors Black Yellow Orange Green Brown Purple Blue Violet Clear Shield Pink White Gray Light blue 4.13 Electrical Schematic Ref. Description Ref. Description Generator Honda Engine Control box Electric start engines (GPS) Ref. Description Ref. - Page 43 GP/GPS 6600A Maintenance...
-
Page 44: Engine Schematic
Maintenance GP/GPS 6600A 4.14 Engine Schematic Ref. Description Ref. Description Generator Honda Engine Control box Electric start engines (GPS) Ref. Description Ref. Description Idle solenoid Solenoid (GPS only) Fuel cut solenoid Starter (GPS only) Oil alert module Charging coil (GPS only) Oil level switch Battery (GPS only) Coil... - Page 45 GP/GPS 6600A Maintenance...
-
Page 46: Technical Data
Technical Data GP/GPS 6600A Technical Data Generator Item No. GP 6600A GP 6600A GPS 6600A 0620330 0620329 0620331 Generator Maximum Output 6600 Continuous Output 6000 Type Dual voltage, single phase, Auto voltage regulator system AC Voltages Avail- volts 120 / 240... -
Page 47: Engine
GP/GPS 6600A Technical Data Engine Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. Item No. GP 6600A GPS 6600A 0620330 0620331 0620329 Engine Engine type Single cylinder, 4-cycle, air-cooled, gasoline engine... - Page 48 Fax: +49 - (0)89-3 54 02-390 Wacker Neuson Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : (262) 255-0500 · Fax: (262) 255-0550 · Tel. : (800) 770-0957 Wacker Neuson Limited - Room 1701–03 & 1717–20, 17/F. Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hongkong.
