Maintenance
. , GPi 3200/4300

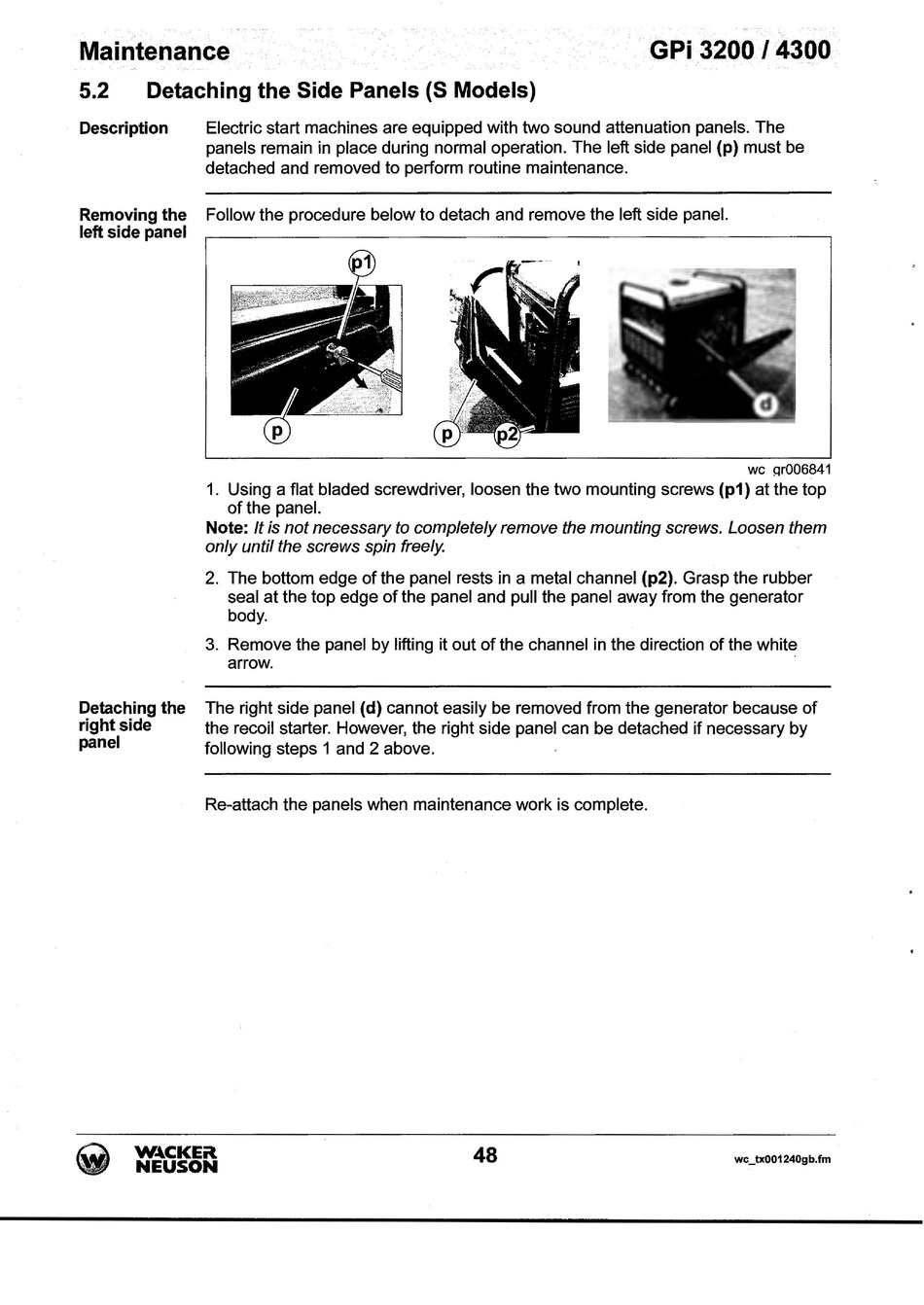

5.2 Detaching the Side Panels (S Models)
Description Electric start machines are equipped with two sound attenuation panels. The
panels remain in place during normal operation. The left side panel (p) must be
detached and removed to perform routine maintenance.
Removing the Follow the procedure below to detach and remove the left side panel.
left side panel
we Qr006841
1. Using a flat bladed screwdriver, loosen the two mounting screws (p1) at the top
of the panel.
Note: It is not necessary to completely remove the mounting screws. Loosen them
only until the screws spin freely.
2. The bottom edge of the panel rests in a metal channel (p2). Grasp the rubber
seal at the top edge of the panel and pull the panel away from the generator
body.
3. Remove the panel by lifting it out of the channel in the direction of the white
arrow.
Detaching the The right side panel (d) cannot easily be removed from the generator because of
right side the recoil starter. However, the right side panel can be detached if necessary by
panel following steps 1 and 2 above.
Re-attach the panels when maintenance work is complete.
