1. Inlet catchpot
2. Inlet dust filter
3. Inlet desiccant trap
4. Inlet chemical trap
5. Solenoid operated gas-ballast valve
6. Foreline trap
7. Solenoid operated pipeline valve
© Edwards Limited 2018. All rights reserved.
Edwards and the Edwards logo are trade marks of Edwards Limited.

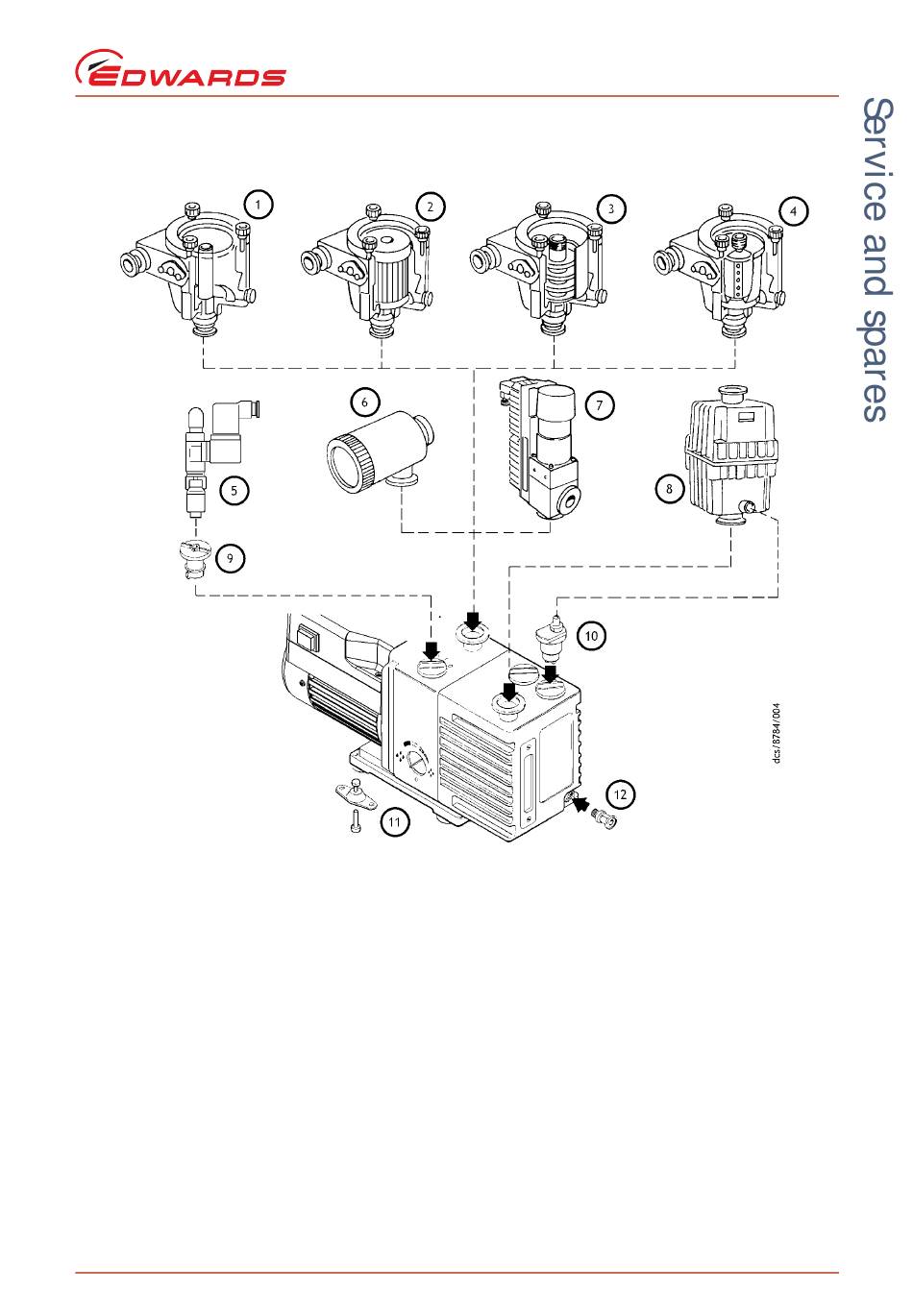

Figure 10 - Accessories
8. Outlet mist filter
9. Gas-ballast adaptor
10. Gravity oil drain kit
11. Vibration isolators
12. Oil drain-extension
A652–01–880 Issue Y
Page 45
