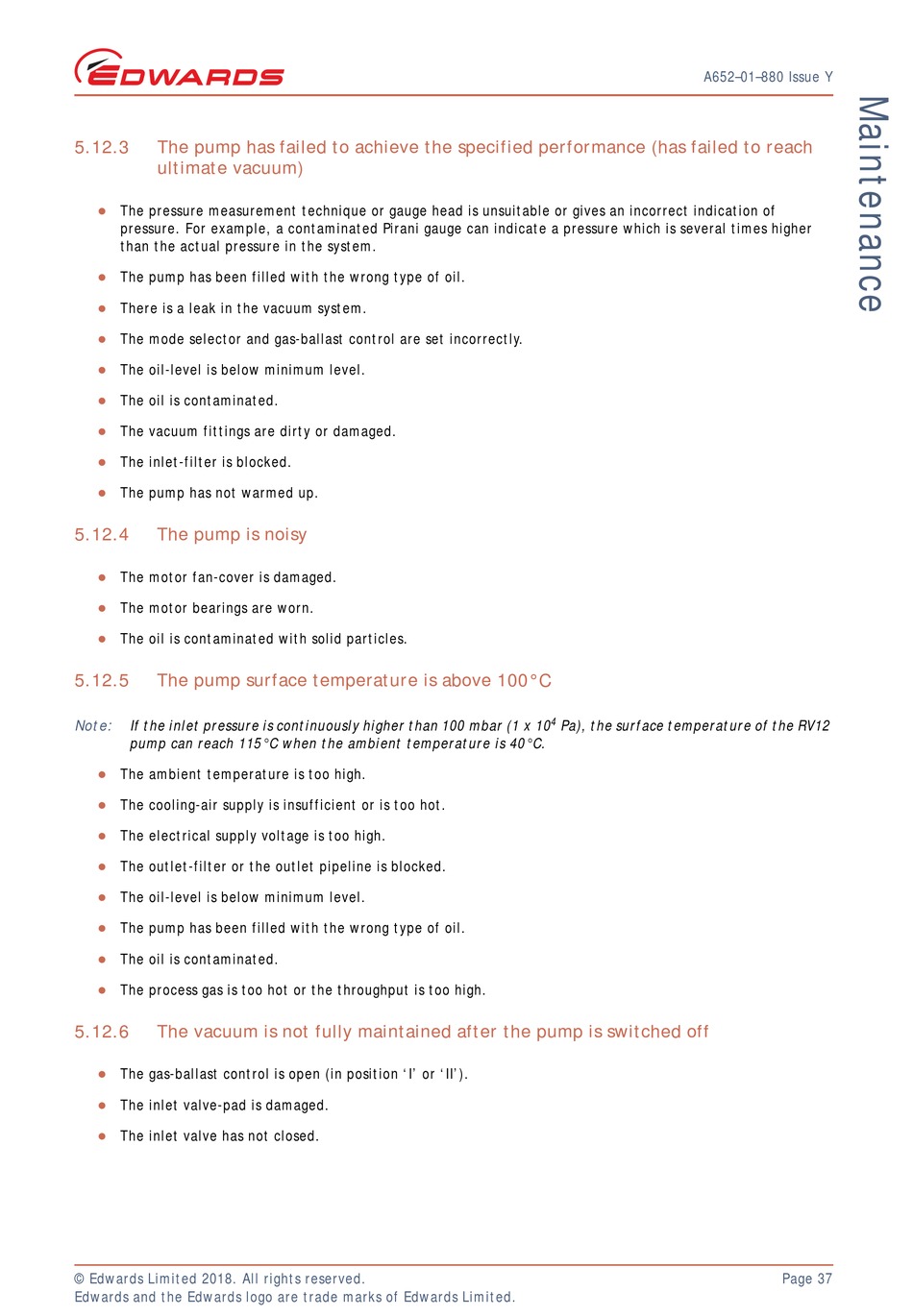

5.12.3 The pump has failed to achieve the specified performance (has failed to reach
ultimate vacuum)
The pressure measurement technique or gauge head is unsuitable or gives an incorrect indication of

pressure. For example, a contaminated Pirani gauge can indicate a pressure which is several times higher
than the actual pressure in the system.
The pump has been filled with the wrong type of oil.

There is a leak in the vacuum system.

The mode selector and gas-ballast control are set incorrectly.

The oil-level is below minimum level.

The oil is contaminated.

The vacuum fittings are dirty or damaged.

The inlet-filter is blocked.

The pump has not warmed up.

5.12.4

The pump is noisy

The motor fan-cover is damaged.

The motor bearings are worn.

The oil is contaminated with solid particles.

5.12.5 The pump surface temperature is above 100°C
Note: If the inlet pressure is continuously higher than 100 mbar (1 x 10
pump can reach 115°C when the ambient temperature is 40°C.
The ambient temperature is too high.

The cooling-air supply is insufficient or is too hot.

The electrical supply voltage is too high.

The outlet-filter or the outlet pipeline is blocked.

The oil-level is below minimum level.

The pump has been filled with the wrong type of oil.

The oil is contaminated.

The process gas is too hot or the throughput is too high.

5.12.6

The vacuum is not fully maintained after the pump is switched off

The gas-ballast control is open (in position 'I' or 'II').

The inlet valve-pad is damaged.

The inlet valve has not closed.

© Edwards Limited 2018. All rights reserved.
Edwards and the Edwards logo are trade marks of Edwards Limited.
A652–01–880 Issue Y
4
Pa), the surface temperature of the RV12
