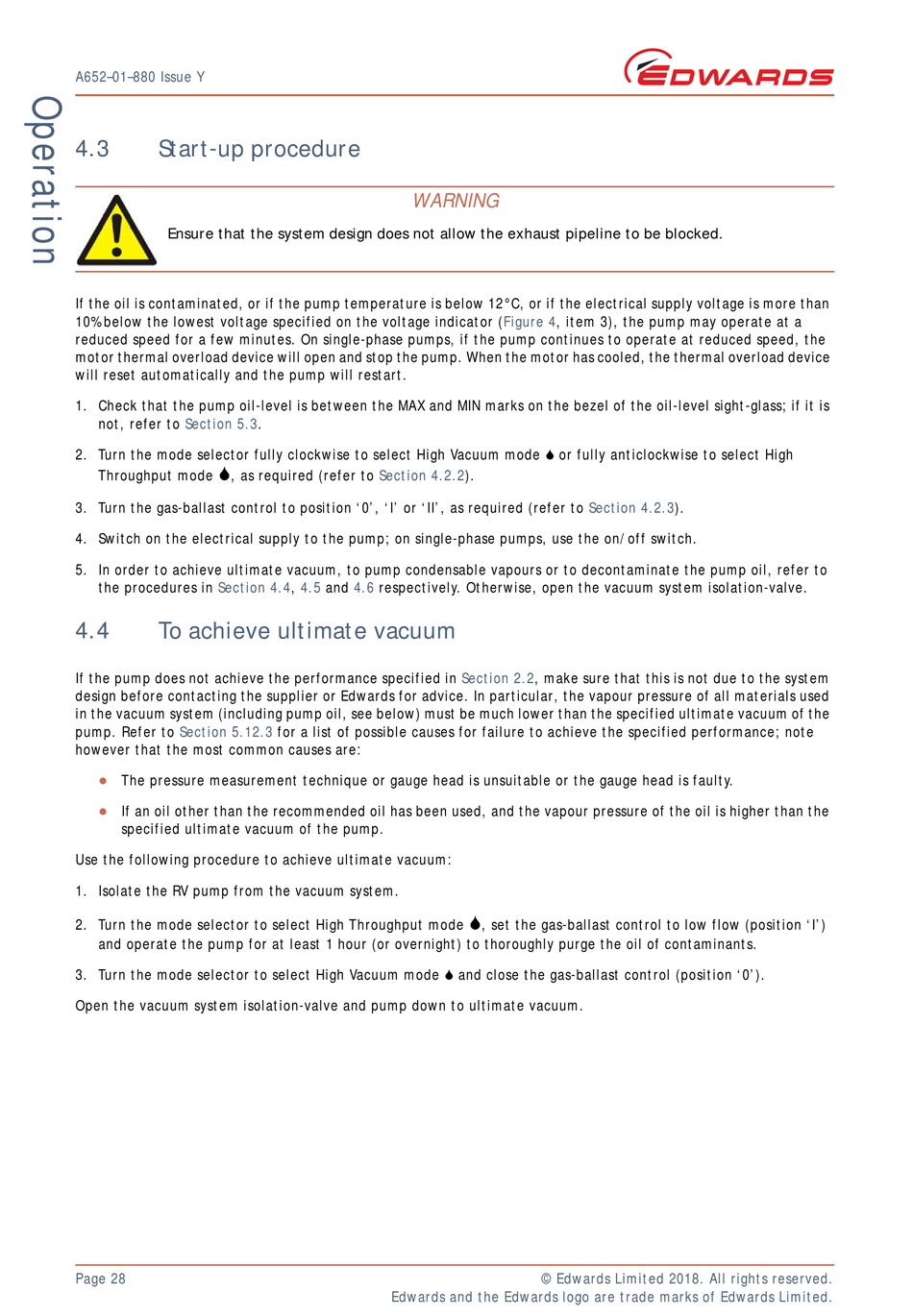

Start-Up Procedure; To Achieve Ultimate Vacuum - Edwards RV3 Instruction Manual

A652–01–880 Issue Y
4.3

Start-up procedure

Ensure that the system design does not allow the exhaust pipeline to be blocked.
If the oil is contaminated, or if the pump temperature is below 12°C, or if the electrical supply voltage is more than
10% below the lowest voltage specified on the voltage indicator
reduced speed for a few minutes. On single-phase pumps, if the pump continues to operate at reduced speed, the
motor thermal overload device will open and stop the pump. When the motor has cooled, the thermal overload device
will reset automatically and the pump will restart.
1. Check that the pump oil-level is between the MAX and MIN marks on the bezel of the oil-level sight-glass; if it is
not, refer to Section 5.3.
2. Turn the mode selector fully clockwise to select High Vacuum mode  or fully anticlockwise to select High

Throughput mode , as required (refer to
3. Turn the gas-ballast control to position '0', 'I' or 'II', as required (refer to
4. Switch on the electrical supply to the pump; on single-phase pumps, use the on/off switch.
5. In order to achieve ultimate vacuum, to pump condensable vapours or to decontaminate the pump oil, refer to
the procedures in Section
4.4

To achieve ultimate vacuum

If the pump does not achieve the performance specified in
design before contacting the supplier or Edwards for advice. In particular, the vapour pressure of all materials used
in the vacuum system (including pump oil, see below) must be much lower than the specified ultimate vacuum of the
pump. Refer to Section 5.12.3
however that the most common causes are:
The pressure measurement technique or gauge head is unsuitable or the gauge head is faulty.

If an oil other than the recommended oil has been used, and the vapour pressure of the oil is higher than the

specified ultimate vacuum of the pump.
Use the following procedure to achieve ultimate vacuum:
1. Isolate the RV pump from the vacuum system.
2. Turn the mode selector to select High Throughput mode
and operate the pump for at least 1 hour (or overnight) to thoroughly purge the oil of contaminants.
3. Turn the mode selector to select High Vacuum mode  and close the gas-ballast control (position '0').
Open the vacuum system isolation-valve and pump down to ultimate vacuum.
Page 28
WARNING
Section 4.2.2).
4.4, 4.5 and 4.6 respectively. Otherwise, open the vacuum system isolation-valve.
for a list of possible causes for failure to achieve the specified performance; note
Edwards and the Edwards logo are trade marks of Edwards Limited.
(Figure 4, item 3), the pump may operate at a
Section
Section 2.2, make sure that this is not due to the system

, set the gas-ballast control to low flow (position 'I')
© Edwards Limited 2018. All rights reserved.
4.2.3).
