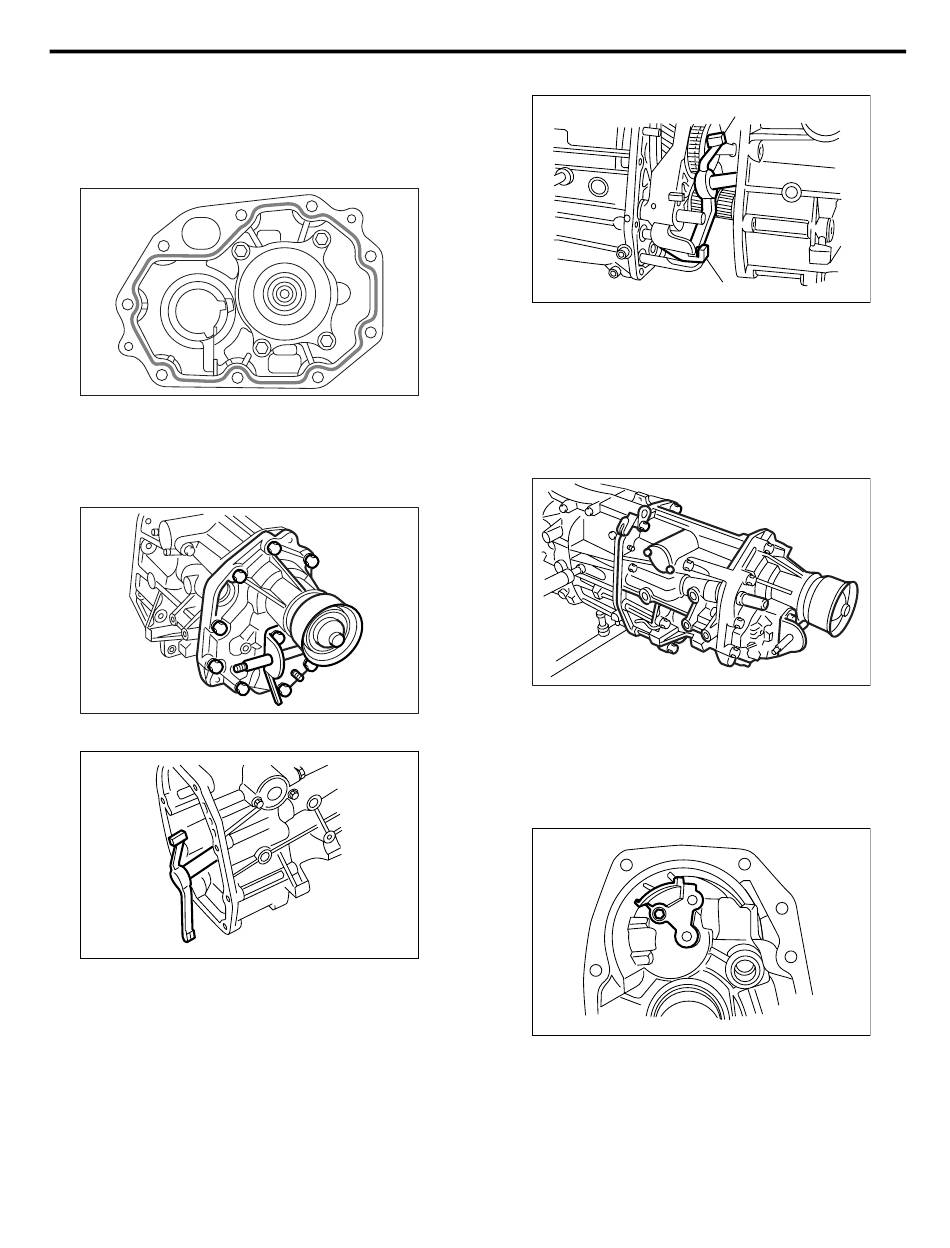

15) Apply proper amount of liquid gasket to the
transfer case mating surface.
Liquid gasket
THREE BOND 1215 (Part No. 004403007) or
equivalent
16) Install the extension assembly into transfer
case.
Tightening torque:
⋅
40 N m (4.1 kgf-m, 29.7 ft-lb)
17) Install the shifter arm to transfer case.
Transfer Case and Extension Case Assembly
MT-00124
MT-00117
MT-00126
MANUAL TRANSMISSION AND DIFFERENTIAL
18) Hang the shifter arm on 3rd-4th fork rod.
(A) Shifter arm
(B) 3rd-4th fork rod
19) Install the transfer case with extension case as-
sembly to transmission case.
Tightening torque:
⋅
25 N m (2.5 kgf-m, 18.4 ft-lb)
C: DISASSEMBLY
1. TRANSFER CASE
1) Remove the reverse check assembly. <Ref. to
5MT-52, REMOVAL, Reverse Check Sleeve.>
2) Remove the oil guide.
5MT-45
(A)
(B)
MT-00127
MT-00116
MT-00129
