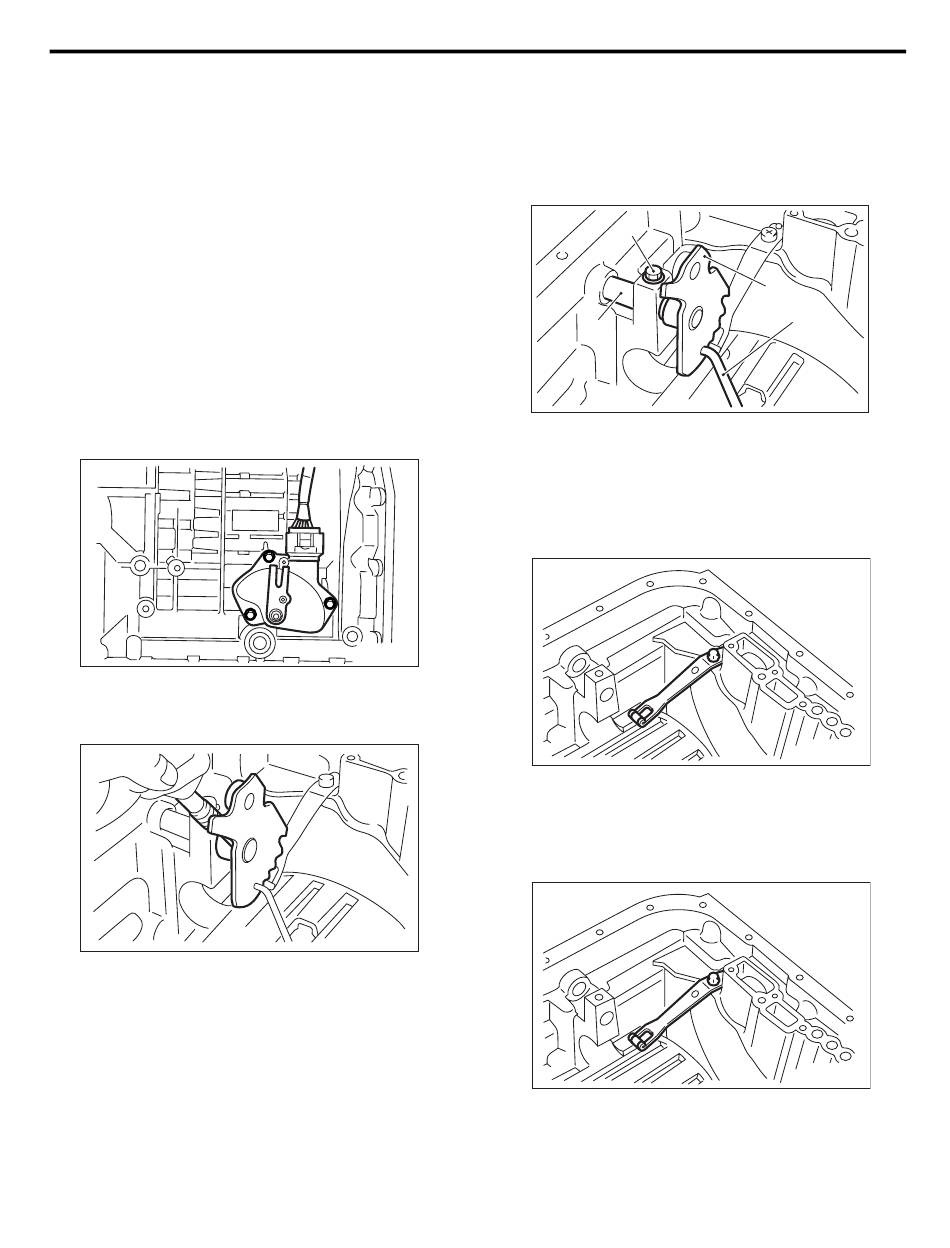

AUTOMATIC TRANSMISSION
42.Transmission Control Device
A: REMOVAL
1) Remove the transmission assembly from vehi-
cle. <Ref. to 4AT-39, REMOVAL, Automatic Trans-
mission Assembly.>
2) Pull out the torque converter clutch assembly.
<Ref. to 4AT-81, REMOVAL, Torque Converter
Clutch Assembly.>
3) Remove the input shaft.
4) Lift up the lever on rear part of transmission har-
ness connector, and then remove it from stay.
5) Disconnect the air breather hose. <Ref. to 4AT-
79, REMOVAL, Air Breather Hose.>
6) Remove the inhibitor switch connector from stay.
7) Wrap vinyl tape around the nipple attached to
the air breather hose.
8) Remove the pitching stopper bracket.
9) Remove the inhibitor switch.
10) Remove the control valve body assembly.
<Ref. to 4AT-62, REMOVAL, Control Valve Body.>
11) Pull out the straight pin of manual plate.
Transmission Control Device
AT-00304
AT-02224
4AT-142
12) Remove the bolts securing select lever, and
then remove the select lever, manual plate and
parking rod.
NOTE:
Be careful not to damage the lips of press-fitted oil
seal in the case.
(A)
(B)
(A) Bolt
(B) Range select lever
(C) Manual plate
(D) Parking rod
13) Remove the detention spring.
B: INSTALLATION
1) Install the detention spring to transmission case.
Tightening torque:
⋅
6 N m (0.6 kgf-m, 4 ft-lb)
(C)
(D)
AT-02225
AT-00307
AT-00307
