I. Install the Log Assembly
Log Set Assembly: LOGS-2537, LOGS-2538, LOGS-2539
Models: EXCURSION-I, EXCURSION-II, EXCURSION-III
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
CAUTION: Logs are fragile, handle with care.
NOTICE: To simplify the installation process, use
Figure 1 to positively identify each individual log
before beginning installation.
1
3
2

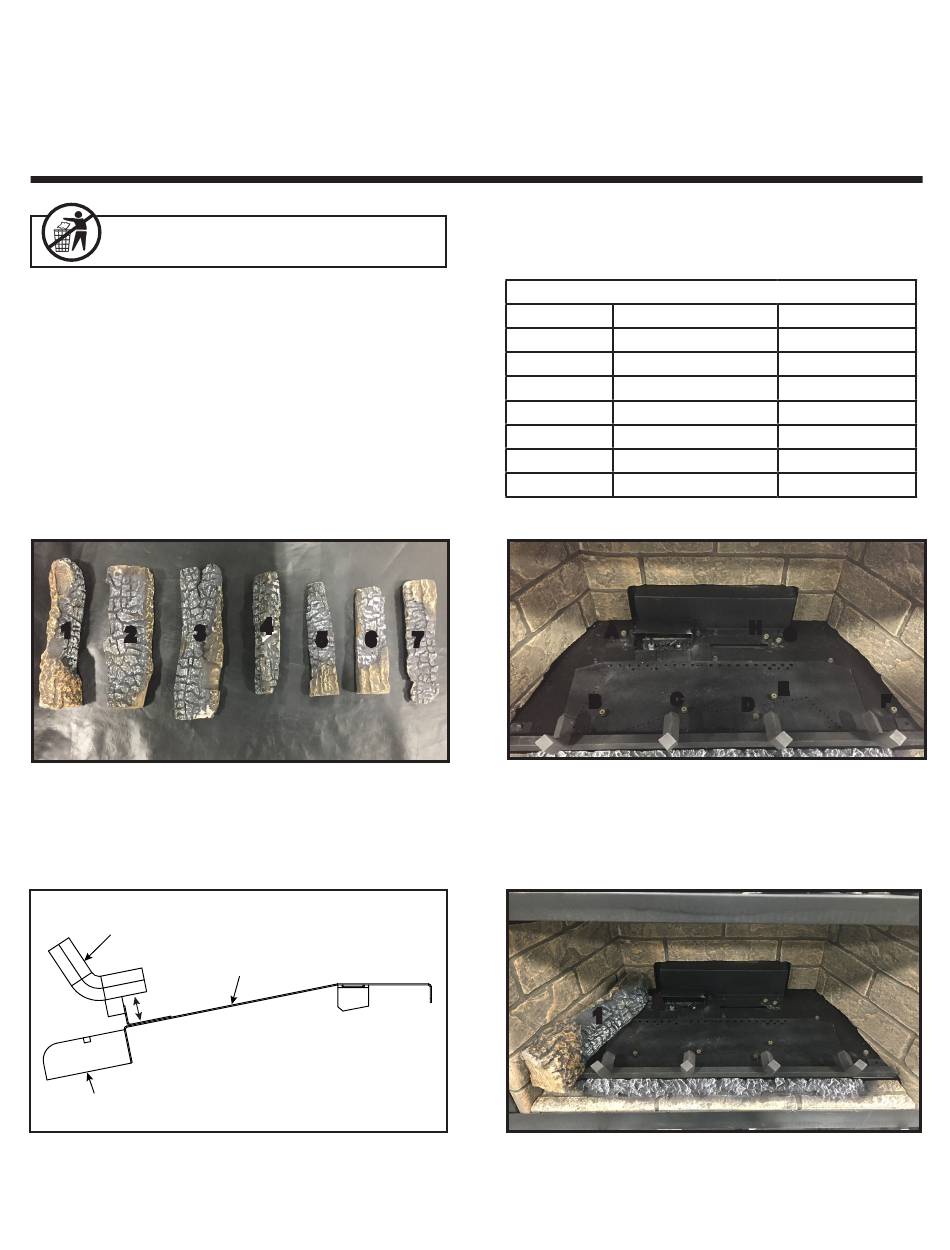

Figure 1. Log Identification - Excursion-I
LOG #1: Set log #1 against left refractory and slide back until the burnout end touches the back refractory. Rotate log so
the burnout end touches pin A and bark end touches left refractory. See Figure 4.
GRATE
7/8 in.
BASE REFRACTORY
Figure 3. Side Profile Grate Location Reference
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
4
5 6
BASEPAN
LOG PLACEMENT INSTRUCTIONS
MODEL: EXCURSION-I
LOG ID
1
2
3
4
5
6
7
7
B
Figure 2. Empty Firebox with Front Hearth Installed
Figure 4. Log #1 Installed
EXCURSION-I SRV LOGS
SRV PART #
SRV2537-711
SRV2537-712
SRV2537-713
SRV2538-714
SRV2537-716
SRV2537-717
SRV2537-715
H
A
C
D
A
1
MOLDED LOG #
37-1
37-2
37-3
37-4
37-6
37-7
37-5
G
E
F
