F. Install the Log Assembly
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the following instructions.
1

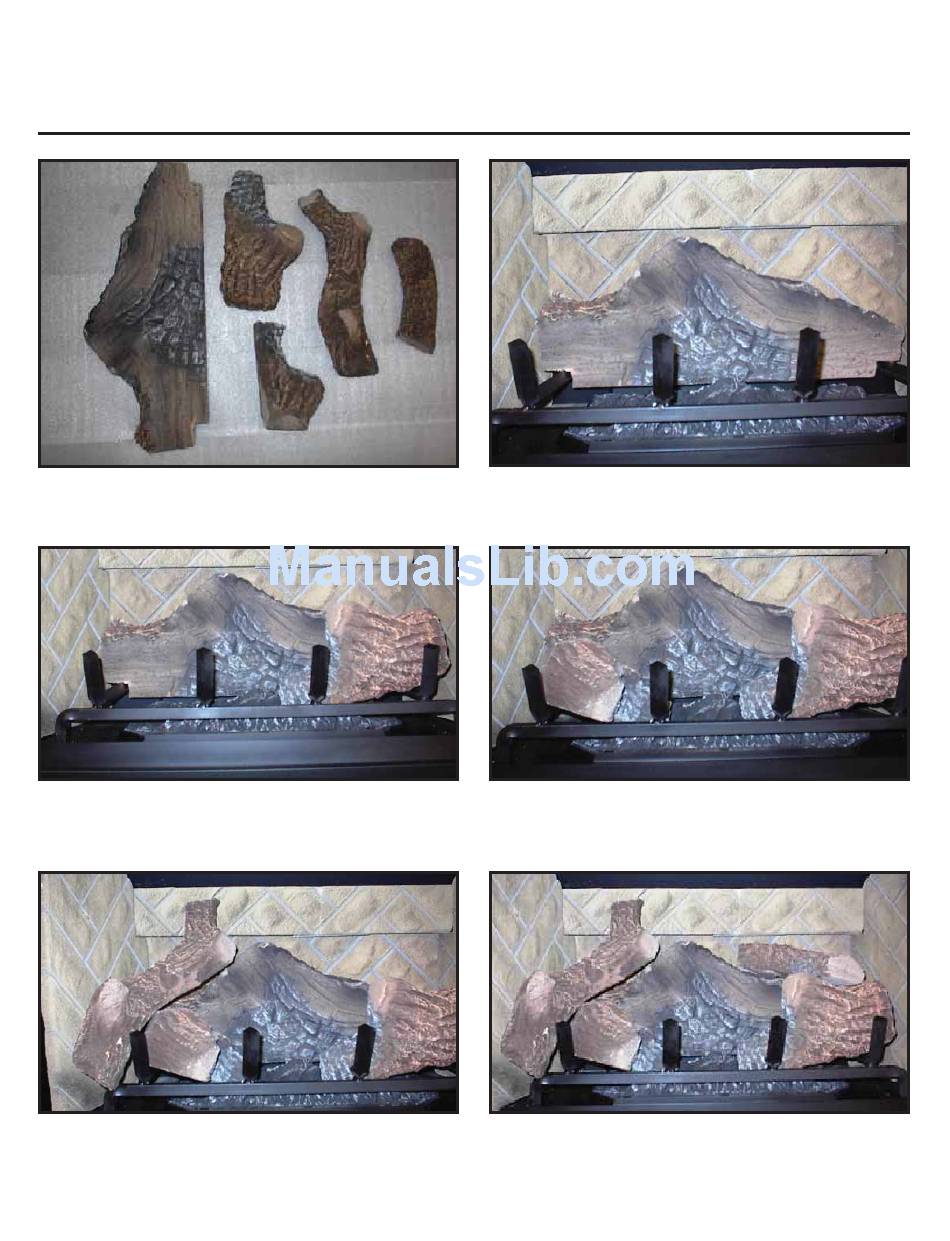

STEP 1: Carefully remove the logs from the packaging.
CAUTION: Logs are fragile!
STEP 3: LOG #2 (SRV2014-703): Place log # 2 with the left
tip of the log on the fl at spot on the burner and the right end
pulled forward against grate.
4
3
STEP 5: LOG #4 (SRV780-707): Place log #4 across log
#3 and resting on log #1.
2
4
5
3
2
1
Quadra-Fire • QV32B-A, QV36B-A • 2014-900 Rev. U • 1/12
Log Set Assembly: LOGS-2014
STEP 2: LOG #1 (SRV2014-701): Place log # 1 cen-
tered on the grate and pushed against the back of fi rebox.
3
STEP 4: LOG #3 (SRV2014-702): Place burned area of log
#3 on the fl at spot on the burner, and knob on log resting
on grate.
STEP 6: LOG #5 (SRV2014-704): Place log #5 on log #1
and log #2 with burned area facing burner.
Model: QV32B-A
1
5
1
2
