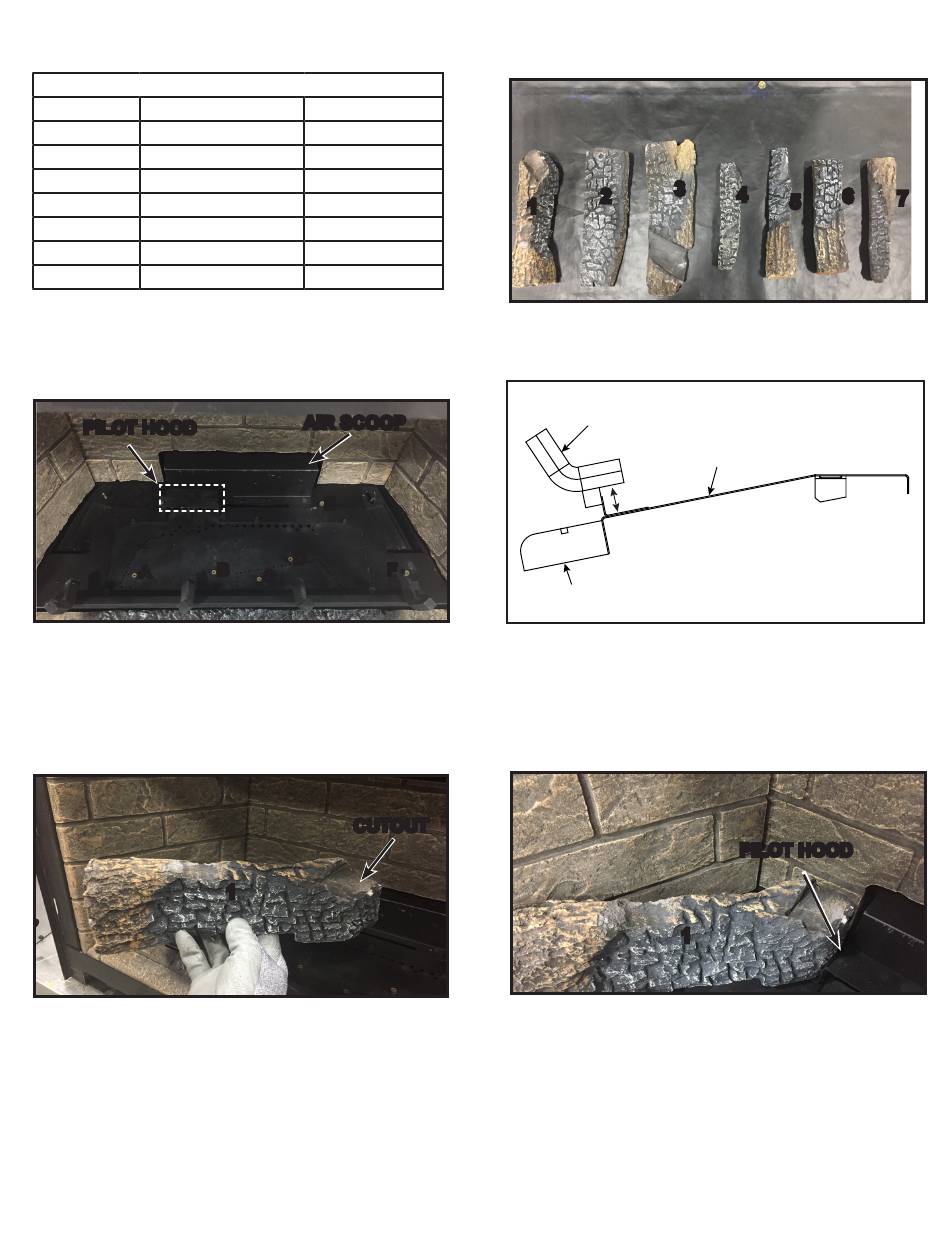

Quadra-Fire EXCURSION-I Installation Manual page 43

MODELS: EXCURSION-II
EXCURSION-II SRV LOGS
LOG ID SRV PART #
1 SRV2538-711
2 SRV2538-712
3 SRV2538-713
4 SRV2538-714
5 SRV2538-716
6 SRV2538-717
7 SRV2538-715
NOTICE: To simplify the installation process, use
Figure 11 to positively identify each individual log
before beginning installation.
PILOT HOOD
A
Figure 12. Empty Firebox with Front Hearth Installed
LOG #1: Place cutout area of log #1 against the left side of the pilot hood. Lower the bark end of the log down until it rests
on the horizontal beam of the log grate. It will sit between tine #1 and the refractory. The transition from bark to burnout
will line up with the grate bar. Ensure that the cutout section of the log is pushed up against the side of the pilot hood. See
Figures 14, 15 and 16.
Figure 14. Log #1 Cutout
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
MOLDED LOG #
38-1
38-2
38-3
38-4
38-6
38-7
38-5
AIR SCOOP
E
D
B F
C
CUTOUT
1
3
2
1
Figure 11. Log Identification - Excursion-II
GRATE
7/8 in.
BASE REFRACTORY
Figure 13. Side Profile Grate Location Reference
1
Figure 15. Log #1 Against Pilot Hood
4
6
5
BASEPAN
PILOT HOOD
7
43
