INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.

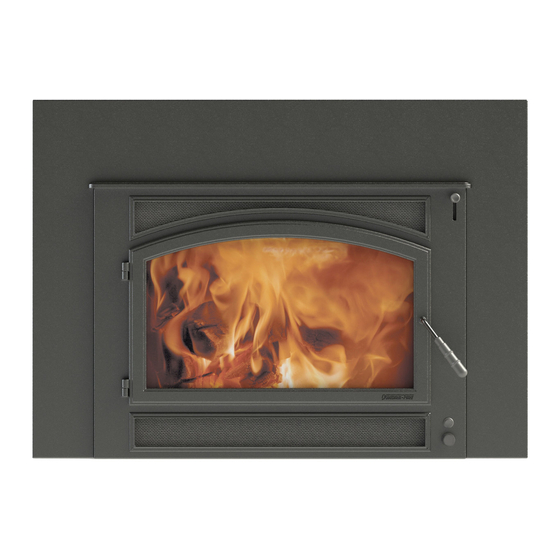

EXPEDITION II WOOD INSERT
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL(S):
EXPEDITION-II
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
R
If the information in these instructions
is not followed exactly, a fire may result
causing property damage, personal injury,
or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
•
Do not over fire - If heater or chimney connector
glows, you are over firing. Over firing will void
your warranty.
•
Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
•
Do not touch glass until it is cooled
•
Use leather gloves when reloading fuel
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room
as appliance.
•
Alert children and adults to hazards of
high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
NOTE: To obtain a French translation of this
manual, please contact your dealer or visit
www.quadrafire.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s'il vous plaît contacter votre
revendeur ou visitez
7095-802B
WARNING
WARNING
WARNING
www.quadrafire.com
July 30, 2019
Advertisement
Table of Contents
Related Manuals for Quadra-Fire EXPEDITION II
Summary of Contents for Quadra-Fire EXPEDITION II
- Page 1 OWNER: Retain this manual for future reference. NOTICE: DO NOT DISCARD THIS MANUAL WARNING If the information in these instructions EXPEDITION II WOOD INSERT is not followed exactly, a fire may result causing property damage, personal injury, AUTOMATIC COMBUSTION or death.
-
Page 2: Table Of Contents
B. Accessories .......26 Quadra-Fire is a registered trademark of Hearth & Home Technologies. -
Page 3: Important Safety Information
EXPEDITION II INSERT Important Safety Information A. Insert Certification B. BTU & Efficiency Specifications Model: Emissions Report No: Expedition II wood Insert 0061WN100E Laboratory: OMNI Test Laboratories, Inc. EPA Certification #: Number: 199-19 Safety Report No: EPA Certified Emissions: 1.9 g/h... -
Page 4: Mobile Home Approved (Usa Only)
EXPEDITION II INSERT C. Mobile Home Approved (USA only) I. California - Prop65 • WARNING: DO NOT INSTALL IN A SLEEPING ROOM. WARNING • CAUTION: THE STRUCTURE INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND CEILING/ROOF This product and the fuels used to operate this product (wood), and MUST BE MAINTAINED. -
Page 5: Getting Started
EXPEDITION II INSERT Install Guide Getting Started A. Design and Installation Considerations B. Draft Draft is the pressure difference needed to vent appliances CAUTION successfully. When a appliance is drafting successfully, all combustion byproducts are exiting the home through Check building codes prior to installation. -
Page 6: Negative Pressure
EXPEDITION II INSERT C. Negative Pressure D. Tools And Supplies Needed Before beginning the installation be sure the following tools WARNING and building supplies are available: • Reciprocating saw Asphyxiation Risk. • Framing material • Negative pressure can cause spillage •... -
Page 7: Install Checklist
EXPEDITION II INSERT F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual. _________________________________________________________________________________ Customer: ______________________________________________________________________________... -
Page 8: Dimensions And Clearances
EXPEDITION II INSERT Dimensions and Clearances A. Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 31-1/2 in (800mm) 31-1/2 in (800mm) 31-1/2 in (800mm) 31-1/2 in (800mm) 23-5/8 in (602mm) 23-5/8 in (602mm) 23-5/8 in (602mm) 23-5/8 in (602mm) - Page 9 EXPEDITION II INSERT 13-1/4 in 13-1/4 in 14 in 14 in (337mm) (337mm) (356mm) (356mm) 23-1/8 in 23-1/8 in 23-1/8 in 23-1/8 in 15° 15° 15° 15° (589mm) (589mm) (589mm) (589mm) 23-3/4 in 23-3/4 in 23-3/4 in 23-3/4 in (604mm)
-
Page 10: Clearances To Combustibles
EXPEDITION II INSERT B. Clearances to Combustibles United States and Canada (UL and ULC) In Canada a full length 6 inch (152mm) S635 flue liner required as per ULC S628. In USA a minimum 5 ft length (1.82m), 6 inch (152mm) diameter flue liner is required as per UL 1482. - Page 11 EXPEDITION II INSERT Material WARNING Thermal Resistance: R value The R value is a measure of a material’s resistance to Fire Risk. heat transfer. • Comply with all minimum clearances to combustibles as specified. R value is convenient when more than one material is used •...
-
Page 12: Chimney Systems
EXPEDITION II INSERT Chimney Systems A. Locating Your Stove & Chimney Location of the appliance and chimney will affect performance. As shown in figure 12.1 the chimney should: • Install through the warm space enclosed by the building envelope. This helps to produce more draft, especially during lighting and die down of the fire. -
Page 13: Chimney Termination Requirements
EXPEDITION II INSERT B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in Follow manufacturer’s instructions for clearance, securing a location of considerable air movement flashing and terminating the chimney (Figure 13.1 & 13.2). can cause intermittent smoke spillage from •... -
Page 14: Venting Systems
EXPEDITION II INSERT D. Venting Systems F. Chimney Height / Rise and Run Chimney Connector: This product was designed for and tested on a 6 inch It is also known as flue pipe or stove pipe. It must be (152mm) chimney, 14 to 16 feet (420-480cm) high,... -
Page 15: Larger Chimneys
EXPEDITION II INSERT H. Larger Chimneys Cross-sectional area shall conform to NFPA 211-2006 • Section 12.4.5.1. It is recommended that chimneys with larger diameters • Should be lined with a 6 inch (152mm) stainless than 6 inches (152mm) be relined. An oversized flue can... -
Page 16: Metal Heat Circulating Masonry
EXPEDITION II INSERT J. Metal Heat Circulating Masonry • No dilution air is allowed to enter the chimney. a. Secure the fireplace damper in the open position. If This insert conforms with the safety standard UL-1482 and this cannot be accomplished, it will be necessary to... -
Page 17: Ovalizing Round Stainless Steel Liners
EXPEDITION II INSERT L. Ovalizing Round Stainless Steel Liners N. Zero-Clearance Fireplace Ovalizing round stainless steel liners to accommodate the A permit may be required for installations, final approval is liner passing through the damper region of a fireplace is an contingent of the authority having local jurisdiction. -
Page 18: Appliance Set-Up
EXPEDITION II INSERT Appliance Set-Up A. Outside Air Kit A source of air (oxygen) is necessary in order for combustion to take place. Whatever combustion air is consumed by the fire must be replaced. Air is replaced via air leakage around windows and under doors. In homes that have tightly sealed doors and windows, an outside air source is needed. -
Page 19: Stove Pipe Or Liner To Flue Collar
Optional use of a Simpson Duravent 15° Universal Elbow Part Number 4615 may be purchased directly through your local Simpson Duravent Pipe Distributor or from your local Quadra-Fire dealer, Part Number DV-6DLR-E15ADSS. 5/16 Bolts Figure 19.2 shows a vertical installations and also how to create an optional 30°... -
Page 20: Power Cord
EXPEDITION II INSERT E. Power Cord The power cord is shipped assembled to the appliance. You may route the power cord either to the left or right side depending on your configuration for power source (Figure 20.1). Figure 20.3 4. Lift surround on to front of appliance (Figure 20.4). -
Page 21: Flat Surround With Trim Kit
EXPEDITION II INSERT G. Flat Surround with Trim Kit 5. Install two steel springs at the top on each side and between the flat surround and the assembled trim kit as Overall Part shown in Figure 21.3. Trim Kit Dimensions... -
Page 22: Standard Surround & Cast Trim Kit
EXPEDITION II INSERT H. Standard Surround & Cast Trim Kit Overall Dimensions Part Number Standard 43” x 31” CT2-4331 Surround Front of Large 51” x 34” CT2-5134 Surround Surround Fits both standard Cast Trim Kit 811-0930 and large surrounds Table 22.1 1. -
Page 23: Mobile Home Installation
EXPEDITION II INSERT Mobile Home Installation , Approved for USA Installation only! You must use a Quadra-Fire Outside Air Kit Part #: Spark Arestor Cap OAK-ACC 1. An outside air inlet must be provided for combustion and must remain clear of leaves, debris, ice and/or Storm Collar snow. -
Page 24: Reference Materials
EXPEDITION II INSERT Reference Materials A. Service and Maintenance Log Date of Service Performed By Description of Service 7095-802B July 30, 2019... - Page 25 EXPEDITION II INSERT Date of Service Performed By Description of Service July 30, 2019 7095-802B...
-
Page 26: Accessories
EXPEDITION-II Service Parts EXPEDITION II INSERT Beginning Manufacturing Date: July 2019 Ending Manufacturing Date: Active B. Accessories IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or EXPEDITION-II Service Parts Stocked Hearth and Home Technologies does not sell directly to consumers distributor. - Page 27 EXPEDITION II INSERT EXPEDITION-II Service Parts Beginning Manufacturing Date: July 2019 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or Hearth and Home Technologies does not sell directly to consumers distributor.
- Page 28 CONTACT INFORMATION Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
