Quadra-Fire 2700-I Instruction Manual

2700-i act wood insert advanced combustion technology (act)
Hide thumbs Also See for Quadra-Fire 2700-I:
Table of Contents

Advertisement

Quick Links

Model:
2700-I
•
Important operating
a n d m a i n t e n a n c e
instructions included.
If the information in these
instructions is not followed
exactly, a fire may result causing
property damage, personal injury,
or death.
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• Do not overfire - If heater or chimney
connector glows, you are overfiring.
Overfiring will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies recommends NFI certified
professionals, or technicians supervised by an
NFI certified professional.
1445 North Highway
Colville, WA 99114-2008

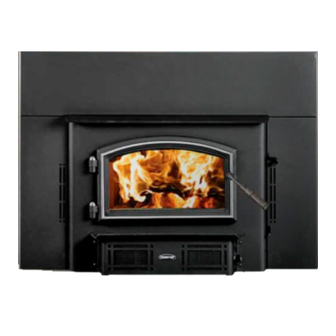

2700-I ACT WOOD INSERT
Advanced Combustion Technology (ACT)
DO NOT DISCARD THIS MANUAL
• Read, understand and
follow these instructions
for safe installation and
operation.
WARNING
7007-161H
NOTICE
• Leave this manual with
party responsible for
use and operation.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in the same room
as appliance
• Alert children and adults to hazards of high
temperatures
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other
combustibles away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
September 1, 2008
R
O-T L
Portland
Tested and
Listed by
Oregon USA
US
C
OMNI-Test Laboratories, Inc.
WARNING
HOT SURFACES!
G L A S S A N D O T H E R
S U R FA C E S A R E H O T
DURING OpERATION AND
COOL DOWN.
WARNING
www.quadrafire.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quadra-Fire 2700-I and is the answer not in the manual?

Questions and answers

Related Manuals for Quadra-Fire Quadra-Fire 2700-I

Summary of Contents for Quadra-Fire Quadra-Fire 2700-I

  • Page 1 Advanced Combustion Technology (ACT) Model: 2700-I • Important operating a n d m a i n t e n a n c e instructions included. WARNING If the information in these instructions is not followed exactly, a fire may result causing property damage, personal injury, or death.

  • Page 2: Sample Of Serial Number / Safety Label

    2700-I WOOD INSERT (ACT) earth & Home Technologies welcomes you to our tradition of excellence! In choosing a Quadra-Fire appliance, you have our assurance of commitment to quality, durability, and performance. This commitment begins with our research of the market, includ- ing ‘Voice of the Customer’...

  • Page 3: Table Of Contents

    SAFETY & OVERVIEW OF AppLIANCE Location of Serial Number Label ------------------------- 2 Dimensions ----------------------------------------------------- 4 Minimum Clearances to Combustibles ------------------ 4 Listings ---------------------------------------------------------- 5 Chimney Height & Draft and 2-10- Rule -------------- 5 Installation Recommendations ---------------------------- 5 Alternate Floor Protection Worksheet ------------------- 6 Design, Installation &...

  • Page 4: Dimensions

    2700-I WOOD INSERT (ACT) DIMENSIONS 26-1/16" (681mm) 18-1/2" 470mm) 12-5/8" (21mm) Figure 4.1 Top View 4-1/16" (10mm) 22-1/16" (560mm) 6-15/16" .0" (76mm) (160mm) Figure 4.2 Side View 27-5/16" (694mm) Figure 4.3 Front View Inches panel Size Standard 44-5/8 0-1/2 Large 50-1/2 4-1/2 Page 4...

  • Page 5: Listings

    LISTINGS These installation instructions describe the installation and opera- tion of the Quadra-Fire 2700-I Wood Insert. This insert meets the U.S. Environmental Protection Agency’s 1990 particulate emission standards. The 2700-I is listed by OMNI-Test Laboratories, Inc. (Report No. 061-S-52-2), to UL Safety Standard 1482, and ULC S628-9, and (UM) 84-HUD.

  • Page 6: Calculating Alternate Floor Protection

    2700-I WOOD INSERT (ACT) CALCULATING ALTERNATE FLOOR pROTECTION Material Thermal Conductivity: k value The k value indicates the amount of heat (in BTU’s) that will flow in 1 hour through 1 square foot of a uniform material 1 inch thick for each degree (F) of temperature difference from one side of the material to the other.

  • Page 7: Chimney Requirements

    CHIMNEY REqUIREMENTS WARNING Fire Risk. Follow Chimney Connector Manufacturer’s Instructions for Proper Installation. ONLY use connector: • Within the room, between appliance and ceiling or wall. Connector shall NOT pass through: • Attic or roof space • Closet or similar concealed space •...

  • Page 8: Mobile Home

    2700-I WOOD INSERT (ACT) NSTALLATIONS INTO MOBILE HOMES 1. An outside air inlet must be provided for combustion. See page 12 for installation information. 2. Appliance must be secured to the mobile home structure by bolting the pedestal through hearth pad and into floor.

  • Page 9: Masonry Fireplace

    MASONRY FIREpLACE USING DIRECT-CONNECT METHOD The Quadra-Fire 2700-I Insert conforms with the UL Stan- dard for Safety 1482 and ULC S628 (Canada) in all respects, and is approved to UL & ULC safety standards for installa- tion and use within a fireplace with a masonry chimney in accordance with NFPA 211, with a direct flue collar connec- tion.

  • Page 10: Factory-Built Zero Clearance Fireplace

    2700-I WOOD INSERT (ACT) FACTORY BUILT ZERO CLEARANCE FIREpLACE The Quadra-Fire 2700-I Insert is listed to UL 1482 Standard and is approved for installation into listed factory-built zero clearance fireplaces listed to UL 127 conforming to the follow- ing specifications and instructions:...

  • Page 11: Canadian Masonry & Heat Circulating

    INSTALLATION IN CANADA MASONRY and HEAT-CIRCULATING (INSTALLATIONS INTO FACTORY-BUILT FIREPLACES ARE PROHIBITED IN CANADA) Whether installed in a masonry or heat-circulating fire- place, this fireplace insert must be installed with a continu- ous chimney liner of 6 inches (152mm) diameter extending from the fireplace insert to the top of the chimney.

  • Page 12: Parts & Accessory Installation Quick Connect Collar (Optional)

    2700-I WOOD INSERT (ACT) OpTIONAL qUICK CONNECT COLLAR f you would like to use the Quick Connect Collar for easy flue installation and removal, follow the directions below. 1. Attach venting to Quick Connect Collar. Secure with 2 screws. 2. Remove baffle and ceramic blanket. See page 20. .

  • Page 13: Panel And Trim Set

    pANEL and TRIM SET The Outside Air Cover Boxes must be installed on both panels legs FIRST before installing the panels on the insert. See page 12. Included in Kit: (2) side panels, left and right; (1) panel top; (2) side trim, left and right, (1) top trim (2) “L” brackets, fastener package and (2) outside air cover boxes Tools Required: Phillips head screw driver panel &...

  • Page 14: Top Installation

    2700-I WOOD INSERT (ACT) TOp INSTALLATION INSTRUCTIONS The top is packaged separately and shipped with the insert. Install on insert after unit is in place and the installation of the panels and trim are complete. Push the top into place by aligning the pins into the slots and then press down into position.

  • Page 15: Zero Clearance Adjustable Trim Support

    ZERO CLEARANCE ADJUSTABLE TRIM SUPPORT, 2 inch to 10 inch Included in Kit: 1 trim top; 1 trim front; 2 trim sides; double-sided tape (already installed) Tools Required: Phillips head screw driver; sheet metal shears; measuring tape; gloves CAUTION Injury Risk. • Gloves recommended •...

  • Page 16: Wood Selection And Storage

    2700-I WOOD INSERT (ACT) OpERATION WOOD SELECTION AND STORAGE Burn only dry seasoned wood. Dry, well-seasoned wood will not only minimize the chance of creosote formation but will give you the most efficient heat output. Even dry wood con- tains at least 15% moisture by weight and should be burned hot enough to keep the chimney hot enough to maintain par- ticulate (smoke) burning.

  • Page 17: Operating Tips

    OpERATING TIpS For maximum operating efficiency with the lowest emissions, follow these operating procedures: Regardless of desired heat output, when loading insert, burn your Quadra-Fire with both air controls wide open for a minimum of 5 to 15 minutes. Regulate burn rate (heat output) by using the Primary Con- trol (center control under ashlip).

  • Page 18: Air Quality

    2700-I WOOD INSERT (ACT) AIR qUALITY AND YOUR qUADRA-FIRE INSERT In recent years there has been an increasing concern about the quality of our air. Much of the blame for poor air quality has been placed on the burning of wood for home heating. In order to improve this situation we at Quadra-Fire have developed cleaner burning inserts that surpass the stringent requirements for emissions established by our governing...

  • Page 19: Maintenance

    CLEANING pLATED SURFACES IMpORTANT: You must clean all the fingerprints and oils from the plated surfaces before firing the insert for the first time. Use warm soapy water and a soft rag, glass cleaner and a paper towel, or vinegar and a paper towel to remove the oils.

  • Page 20: Brick Replacement

    2700-I WOOD INSERT (ACT) BRICK REpLACEMENT INSTRUCTIONS The firebox of your Quadra-Fire 2700-I Insert is lined with high quality firebrick which has exceptional insulating properties. There is no need for a grate, simply build a fire on the firebrick floor.

  • Page 21: Exploded View

    19.0" Ceramic Blanket 2-1/2" 26.0" Figure 21.1 Item Description Door Assembly Hinge Pin Glass Assembly Spring Handle, 1/2 in. Blower Housing September 1, 2008 EXpLODED VIEW 12.0" Item Description Ash Lip Blower Assembly Spring Handle, 1/4 in. Leveling Leg, Right Leveling Leg, Left 7007-161H 2700-I WOOD INSERT (ACT)

  • Page 22: Service Parts

    2700-I WOOD INSERT (ACT) Service parts IMpORTANT: THIS IS DATED INFORMATION. quadrafire.com. When ordering, supply serial and model numbers to ensure correct part. Item Ash Lip Assembly Baffle, Fiberboard Blanket, Ceramic, 1/2” thick Blower Assembly Blower Cord with Speed Control Blower Housing Blower Replacement (Motor Only) Bracket, Hinge, Start-Up...
  • Page 23 Item Manifold Tubes, (Set of 3) Nut, Locking (Door Handle) Quick Connect Collar Rivnut Repair Kit Screw, Glass Frame, (10) Speed Control for Blower Spring Handle, Air Control, 1/4”, Gold (2 ea) Spring Handle, Air Control, 1/4” Nickel (1) Spring Handle, Door, 1/2”, Gold Spring Handle, Door, 1/2”, Nickel Top Assembly, Cast Touch-up Paint, MBK...
  • Page 24 2700-I WOOD INSERT (ACT) Item # ACCESSORIES (in alphabetically order) Panel & Trim, Gold, Standard Panel & Trim, Gold, Large Panel & Trim, Nickel, Standard Panel & Trim, Nickel, Large Panel Trim set, Gold, Large Panel Trim set, Gold, Small Panel Trim set, Nickel, Large Panel Trim set, Nickel, Small Item #...

  • Page 25: Warranty Policy

    2700-I WOOD INSERT (ACT) Service And Maintenance Log Date of Service performed By Description of Service Page 25 September 1, 2008 7007-161H...

  • Page 26: Minimum Clearances To Combustibles

    2700-I WOOD INSERT (ACT) Warranty policy Hearth & Home Technologies LIMITED WARRANTy Hearth & Home Technologies (“HHT”) and its respective brands extends the following warranty for HHT gas, wood, pellet and electric appliances purchased from an authorized HHT dealer and installed in the United States of America or Canada.
  • Page 27 Hearth & Home Technologies LIMITED WARRANTy (Cont’d)  HHT’s obligation under this warranty does not extend to damages resulting from: (1) installation, operation or main- tenance of the appliance not in accordance with the installation instructions; operating instructions and the listing agent identification label furnished with the appliance;...

  • Page 28: Contact Information

    please contact your quadra-Fire dealer with any questions or concerns. For the number of your nearest quadra-Fire dealer, please visit our web site at www.quadrafire.com SERIAL NUMBER: __________________ DATE pURCHASED: __________________ DATE INSTALLED: __________________ This product may be covered by one or more of the following patents: (United States) 459510, 4686807, 4766876, 47922, 481154, 5000162, 5016609, 5076254, 51184, 5191877, 521895, 526471, 52856, 541794, 54798, 5429495, 5452708, 5542407, 560107, 561487, 564740, 5688568, 5762062, 5775408, 5890485, 591661, 594127, 5947112, 5996575, 600674, 6019099, 6048195, 605165, 6145502, 6170481, 627588, 6296474, 674822, 641079, 649226, 6484712, 654698, 6550687, 6601579,...
