E. Connecting Vent Pipe
Reference instructions in the termination kit.
• Install the 3 in. flexible vent pipe(s) down through the
chimney.
• Secure the exhaust flexible vent pipe to the exhaust
starting collar on top of the appliance with three screws.
See Figure 5.1.
For best results in cold climate be sure 3 in. flex is flush
and tight to the collar slide plate assembly. Seal with
stove cement or aluminum foil tape. Do not use silicone.
• Use 3 screws to attach the section of inlet air vent to the
inlet air starting collar on the collar slide plate assembly.
See Figure 5.1. NOTE: The collar slide plate assembly
may be removed from appliance to aid installation and
service.
For best results in cold climate be sure 3 in. flex is flush
and tight to the collar slide plate assemby. Seal with
stove cement or aluminum foil tape. Do not use silicone.

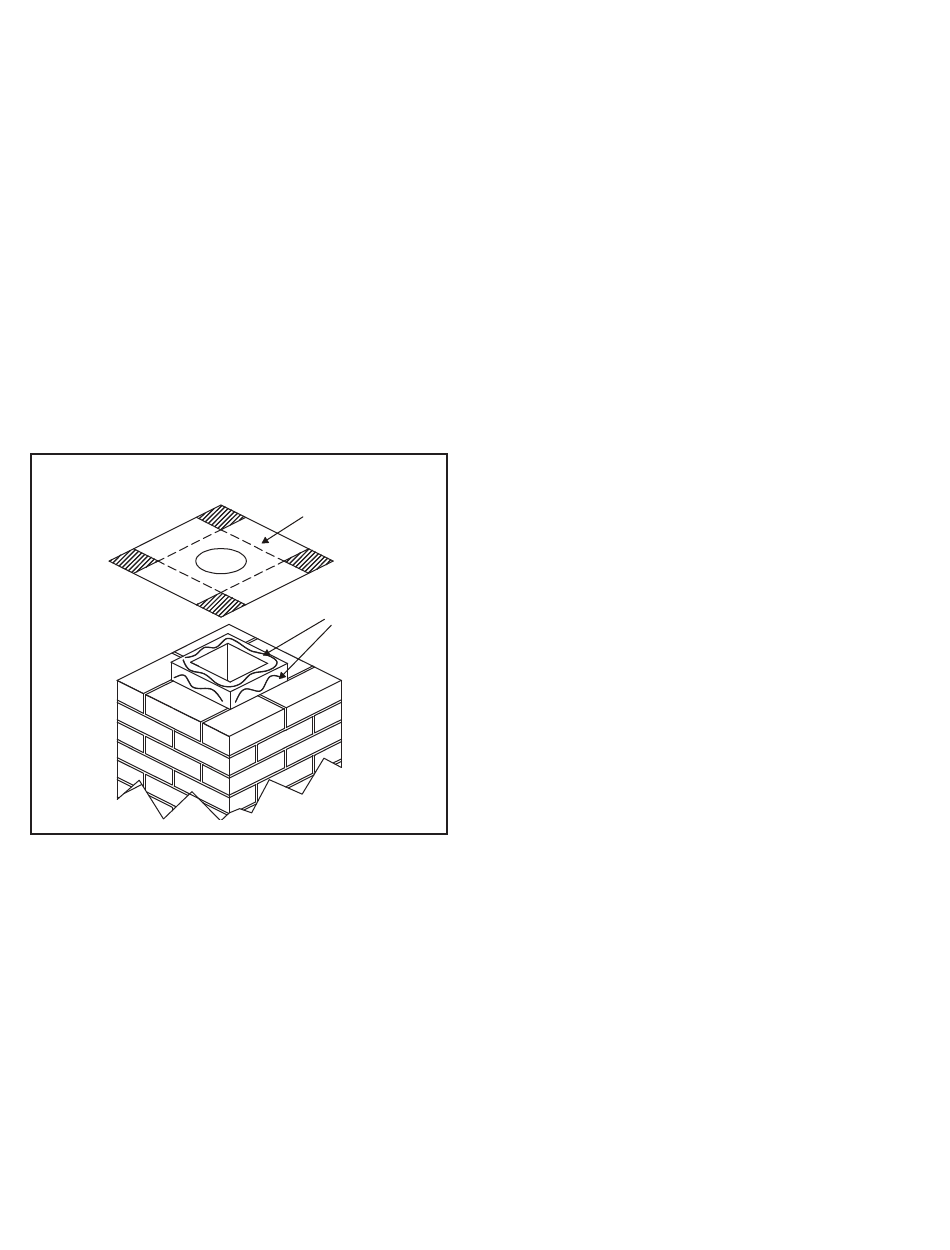

Figure 5.6
• Trim chimney top plate to minimize excess overhang or
bend over flue tile. See Figure 5.6.
• Place 3/8 inch bead of 300 ºF minimum continuous
exposure rating silicone on flue tile top.
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
24
CUT AND BEND
FLASHING AS NEEDED
TO FIT CHIMNEY
SEALANT
ADHESIVE
