Quadra-Fire EXCURSION-I Installation Manual page 47

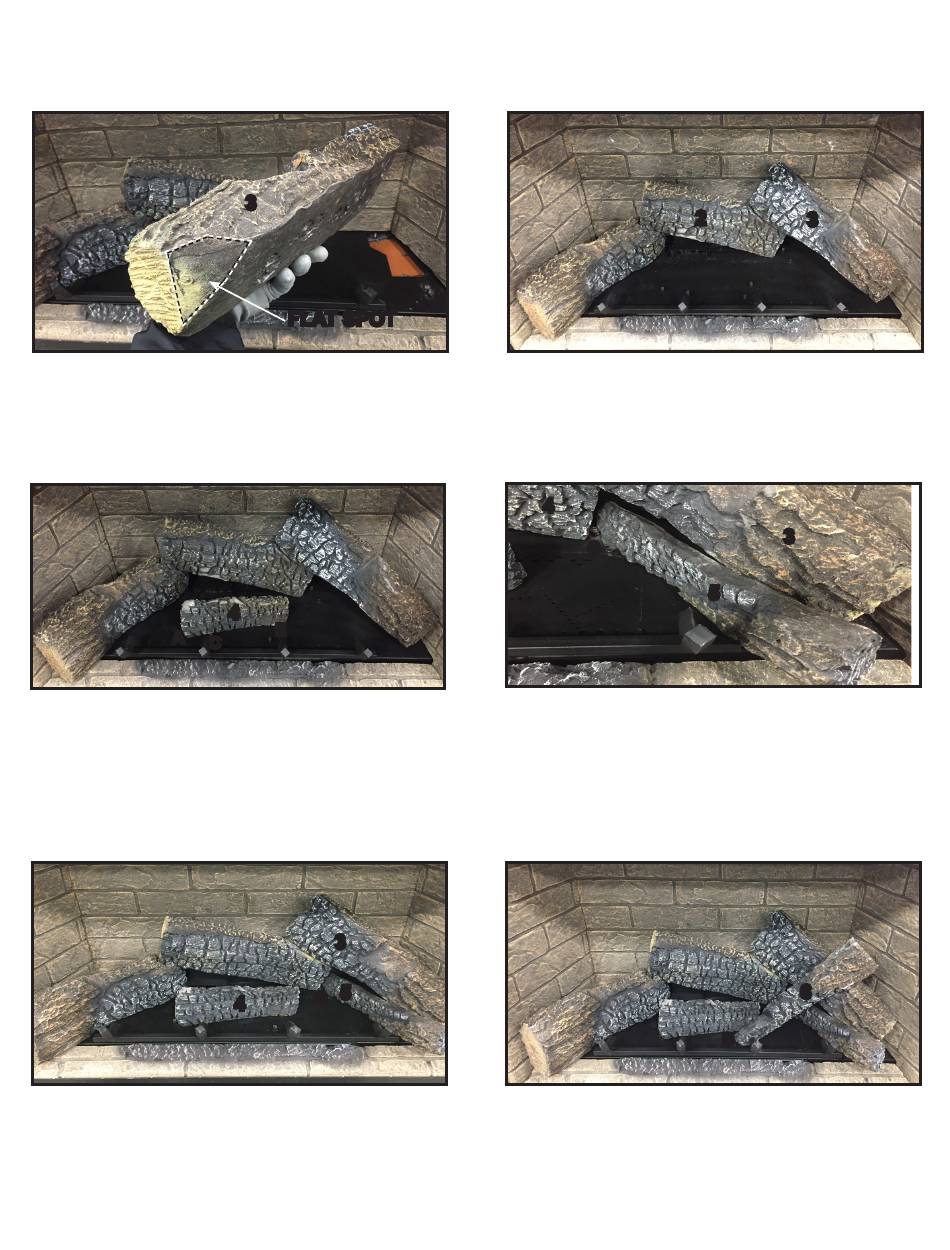

LOG #3: Place lower right side of log #3 against pin H and burnout end of log #3 on flat spot of log #2. Rotate the log so
the flat spot on the back side is flush against the right side refractory. Slide the burnout end of log #3 back until it contacts
the back refractory. See Figure 30 & 31.
Figure 30. Log #3
LOG #4: Place the left tip of log #4 against pin A and lay flat on the burner. Rotate the log forward until it contacts both pin
C and pin E. Log will contact all 3 pins. See Figure 32.
A
Figure 32. Log #4 Installed
LOG #5: The tip of the burnout end of log #5 will contact pin G and the bark end will rest on the grate between tine #4 and
log #3. See Figures 33 and 34.
LOG #6: Place the burnout tip of log #6 against pin D and the end of tine #3. Place the bark end in the notch on log #3.
See Figure 35.
Figure 34. Log #5 Installed
Quadra-Fire • EXCURSION-I, EXCURSION-II, EXCURSION-III Installation Manual • 2538-980 Rev. E • 5/19
3
FLAT SPOT
4
E
C
3
5
G
4
Figure 31. Log #3 Installed
4
G
Figure 33. Log #5 Installed
Figure 35. Log #6 Installed
2
3
H
3
5
6
D
47
