Table 16. Cn9 Hdmi; Figure 12. Cn9 Hdmi ® Connector Pinout - ST STM32MP157C-DK2 User Manual

I/O
PG1
PD12
PF15
PA10
Figure 12 shows the pinout of HDMI
Table 16 describes the pinout of HDMI
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
UM2534 - Rev 1
PG1 is connected to HDMI_INT.
PD12 is connected to I2C1_SCL (I2C shared).
PF15 is connected to I2C1_SDA (I2C shared).
PA10 is connected to HDMI_NRST
®
connector CN9.

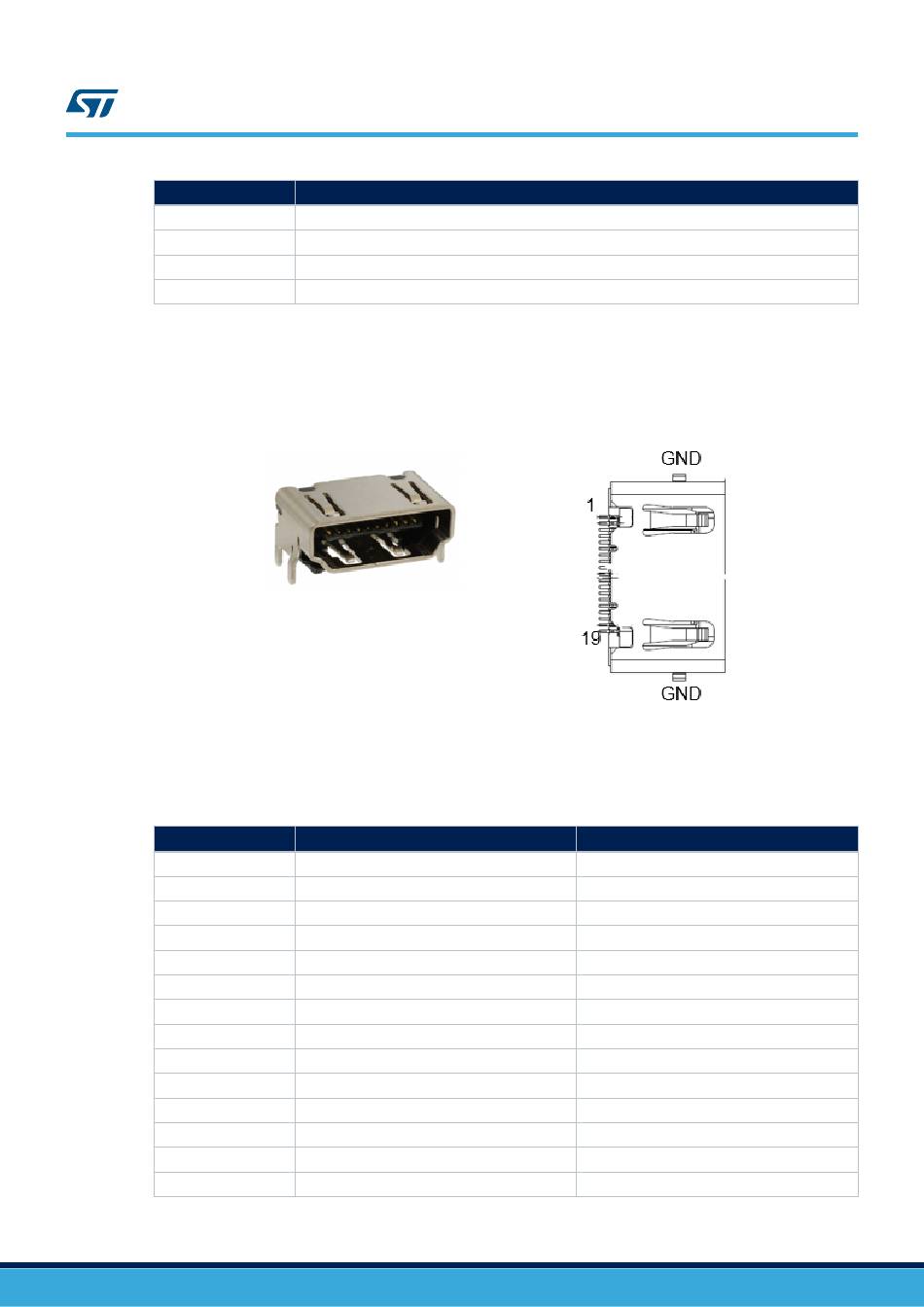

Figure 12. CN9 HDMI
®
connector CN9.
Table 16. CN9 HDMI
Pin name
RX2+
GND
RX2-
TX1+
GND
RX1-
RX0+
GND
RX0-
RXC+
GND
RXC-
CEC
-
Configuration
®
connector pinout
®
connector pinout
Signal name
UM2534
HDMI®
TX2C_P
GND
TX2C_N
TX1C_P
GND
TX1C_N
TX0C_P
GND
TX0C_N
TXCC_P
GND
TXCC_N
CEC_A
-
page 21/47
