7.7.2 USB Host interface
Table 8 describes the I/O configuration for the USB Host interface.
I/O
PD12
PF15
USB_DP1
USB_DM1
1. I2C1 not connected by default (SB7 and SB8 OFF).
Figure 9 shows the CN1 and CN5 USB Type-A connector pinout.
Table 9 describes CN1 and CN5 USB Host connector pinout.
Pin
T1
T2
T3
T4
B1
B2
B3
B4
T1
T2
UM2534 - Rev 1
Table 8. I/O configuration for the USB Host interface
PD12 used as I2C1_SCL shared between AUDIO, DSI, and HDMI
PF15 used as I2C1_SDA shared between AUDIO, DSI, and HDMI
USB1_P
USB1_N

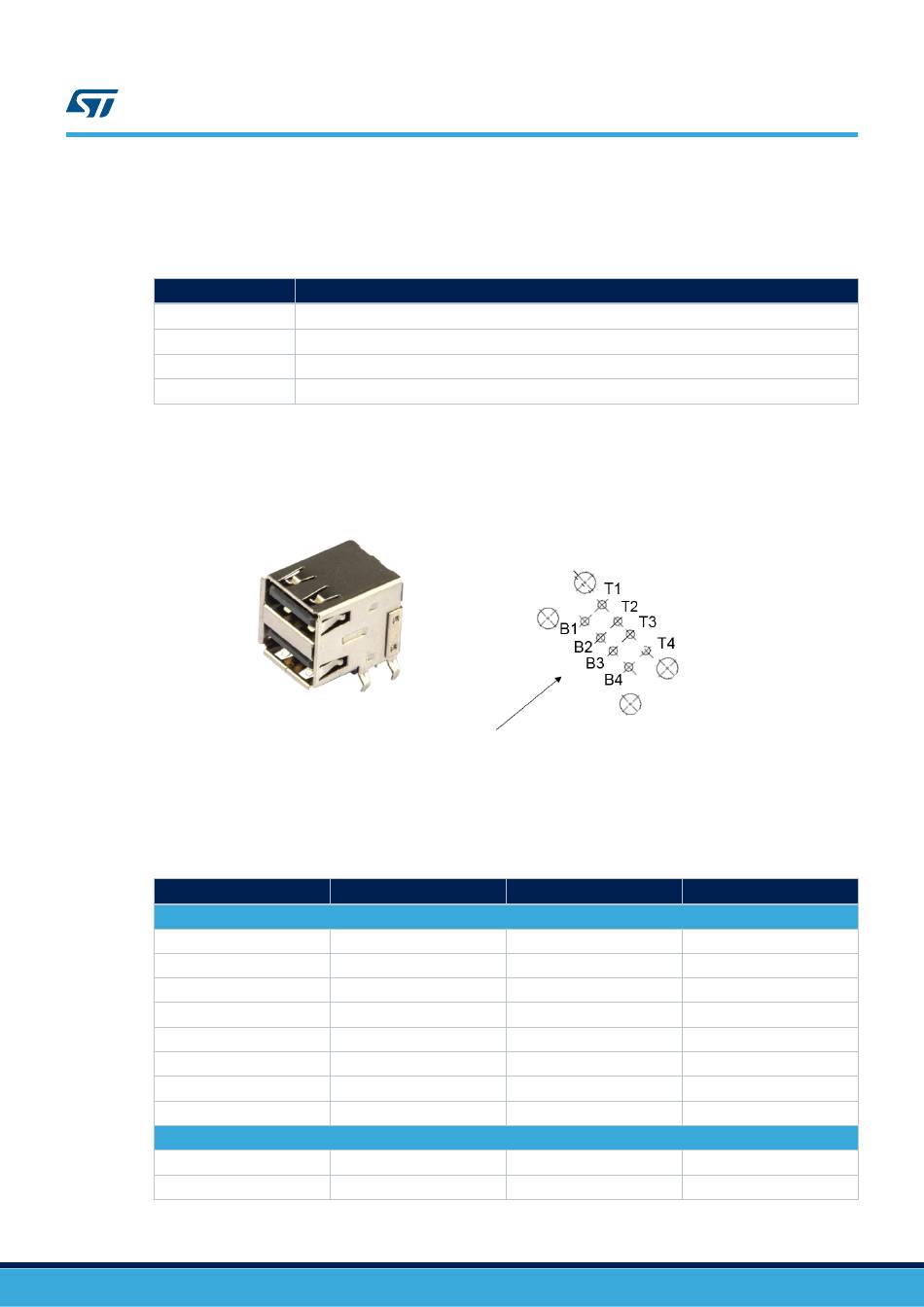

Figure 9. CN1 and CN5 USB Type-A connector pinout
Table 9. CN1 and CN5 USB Host connector pinout
Pin name
T1
T2
T3
T4
B1
B2
B3
B4
T1
T2
Configuration
(1)
(1)
Signal name
CN1
VBUS
USB1CN25_N
USB1CN25_P
GND
VBUS
USB1CN25_N
USB1CN25_P
GND
CN5
VBUS
USB1CN26_N
UM2534
USB Host
Function
VBUS
DM
DP
GND
VBUS
DM
DP
GND
VBUS
DM
