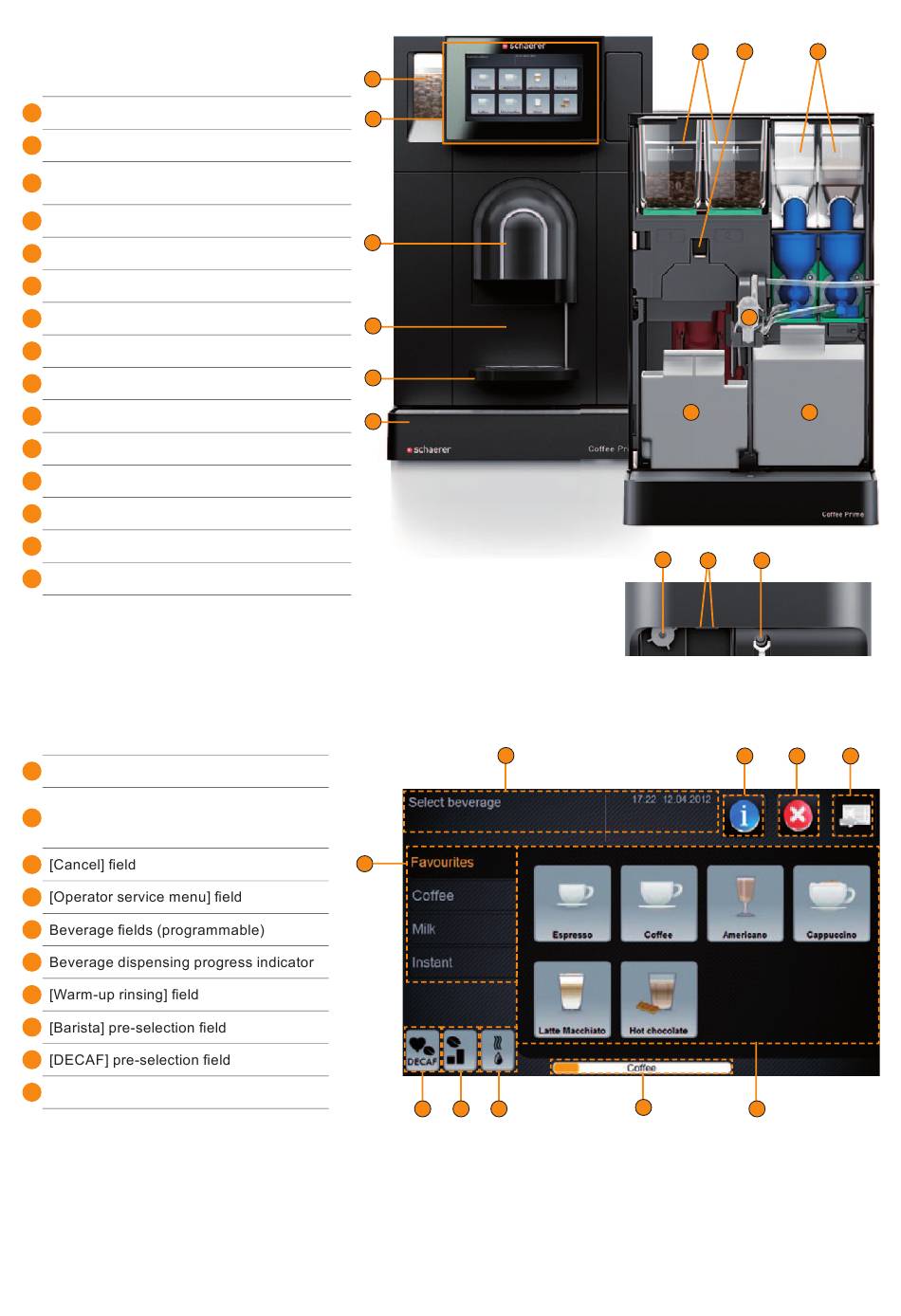

Schaerer Coffee Prime Operating Instructions Manual page 2

1
Bean hopper inspection window
2
User panel
Beverage outlet
3
(with hot water dispensing)
4
Service door
5
Cup platform
6
Drip tray with drip grid
7
Bean hopper
8
Cleaning tablet inlet
9
Powder container
10
Disposable foamer head
11
Grounds container
12
Drinking water tank
13
Mains water supply
14
Power connection and main on / off switch
15
Waste water outlet
1
Status bar
Smart Info
2
(information, operating instructions, error
messages)
3
4
5
6
7
8
9
10
Beverage register (programmable)
