CEM700 COM Express

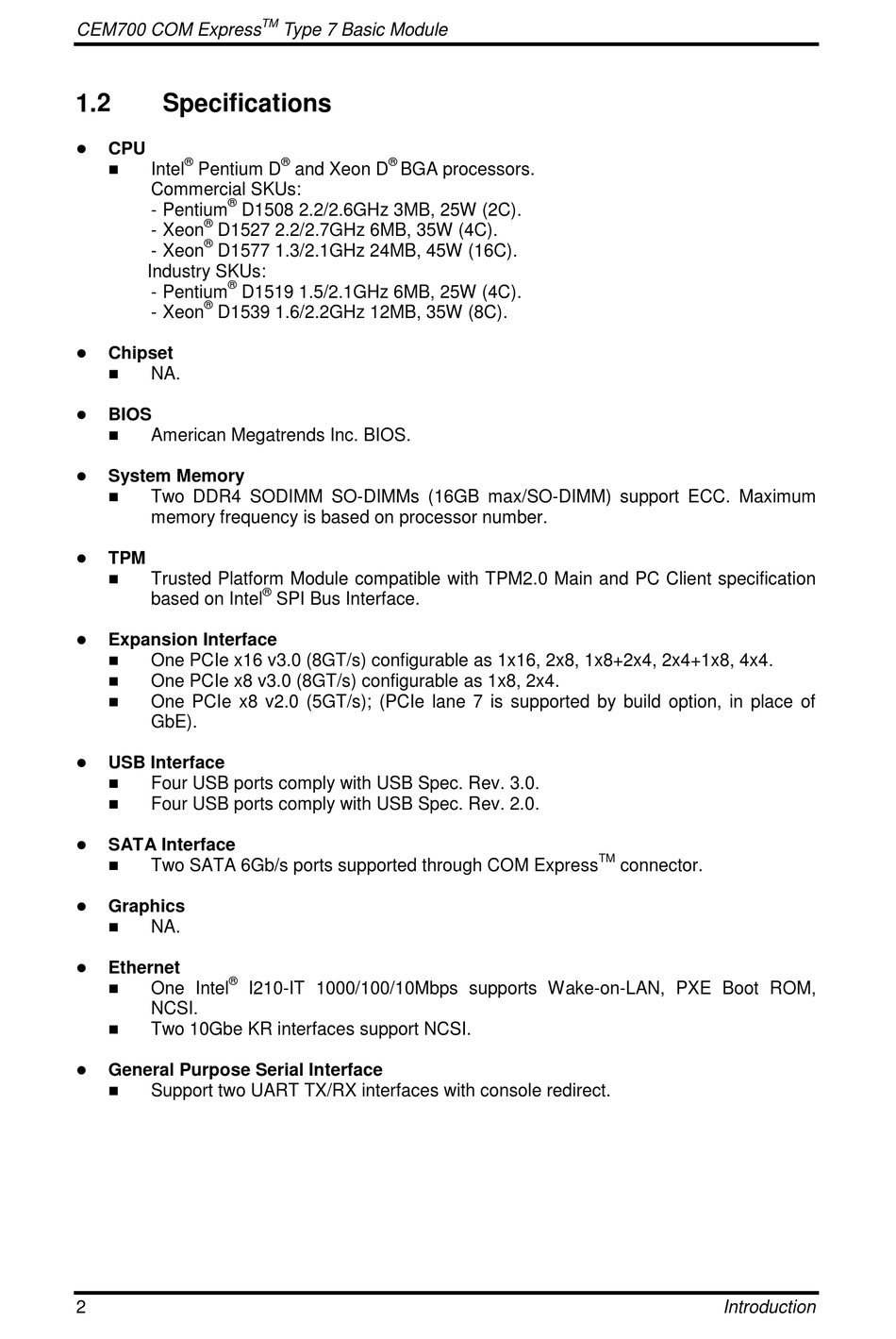

1.2

Specifications

 CPU
®
 Intel Pentium D
Commercial SKUs:
®
- Pentium D1508 2.2/2.6GHz 3MB, 25W (2C).
®
- Xeon D1527 2.2/2.7GHz 6MB, 35W (4C).
®
- Xeon D1577 1.3/2.1GHz 24MB, 45W (16C).
Industry SKUs:
®
- Pentium D1519 1.5/2.1GHz 6MB, 25W (4C).
®
- Xeon D1539 1.6/2.2GHz 12MB, 35W (8C).

Chipset
 NA.
 BIOS
 American Megatrends Inc. BIOS.
 System Memory
 Two DDR4 SODIMM SO-DIMMs (16GB max/SO-DIMM) support ECC. Maximum
memory frequency is based on processor number.
 TPM
 Trusted Platform Module compatible with TPM2.0 Main and PC Client specification
based on Intel

Expansion Interface
 One PCIe x16 v3.0 (8GT/s) configurable as 1x16, 2x8, 1x8+2x4, 2x4+1x8, 4x4.
 One PCIe x8 v3.0 (8GT/s) configurable as 1x8, 2x4.
 One PCIe x8 v2.0 (5GT/s); (PCIe lane 7 is supported by build option, in place of
GbE).
 USB Interface

Four USB ports comply with USB Spec. Rev. 3.0.
 Four USB ports comply with USB Spec. Rev. 2.0.
 SATA Interface
 Two SATA 6Gb/s ports supported through COM Express
 Graphics

NA.
 Ethernet
®
 One Intel
NCSI.
 Two 10Gbe KR interfaces support NCSI.
 General Purpose Serial Interface
 Support two UART TX/RX interfaces with console redirect.
2
TM
Type 7 Basic Module
® ®
and Xeon D BGA processors.
®
SPI Bus Interface.
I210-IT 1000/100/10Mbps supports Wake-on-LAN, PXE Boot ROM,
TM
connector.
