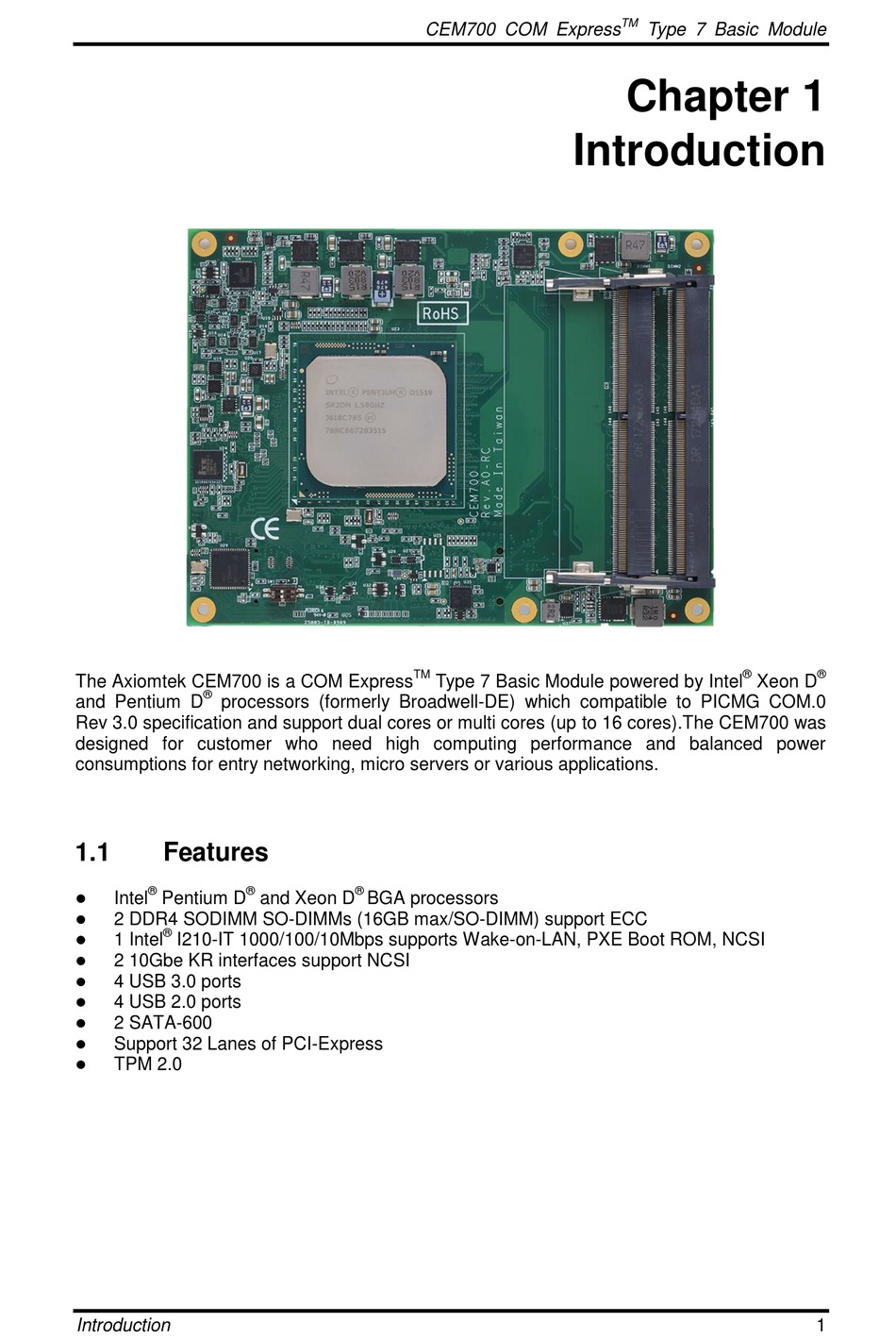

The Axiomtek CEM700 is a COM Express
®
and Pentium D processors (formerly Broadwell-DE) which compatible to PICMG COM.0
Rev 3.0 specification and support dual cores or multi cores (up to 16 cores).The CEM700 was
designed for customer who need high computing performance and balanced power
consumptions for entry networking, micro servers or various applications.
1.1

Features

®
 Intel Pentium D
 2 DDR4 SODIMM SO-DIMMs (16GB max/SO-DIMM) support ECC
®
 1 Intel I210-IT 1000/100/10Mbps supports Wake-on-LAN, PXE Boot ROM, NCSI
 2 10Gbe KR interfaces support NCSI
 4 USB 3.0 ports
 4 USB 2.0 ports
 2 SATA-600
 Support 32 Lanes of PCI-Express
 TPM 2.0
Introduction
TM
® ®
and Xeon D BGA processors
CEM700 COM Express
Introduction
Type 7 Basic Module powered by Intel
TM
Type 7 Basic Module
Chapter 1
®
Xeon D
®
1
