AXIOMTEK CEM501 Quick Installation Manual

Quick Start
The basic procedures required to power on CEM501/511:
(1). Make sure the power is OFF before connecting the CEM501/511.
(2). Check to ensure the onboard switch SW1-1 is set to default (OFF
position).
(3). Firmly install DDR4 SO-DIMM in DIMM2/DIMM1 until fully seated. For
single memory channel configuration, install memory module in
channel 0 (DIMM2) DDR4 SO-DIMM socket. For dual memory
channel configuration, install memory modules of the same size, chip
width, density and rank in both channel 0 (DIMM2) and channel 1
(DIMM1) DDR4 SO-DIMM sockets.
Note: It must be DDR4 memory module.
(4). Attach thermal solution to the CEM501/511, refer to section Installing
Thermal Solution.
(5). Install the CEM501/511 onto COM Express
CEB94011 baseboard.
(6). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(7). Firmly attach power supply to the baseboard's power connector.
(8). Turn on the system power.
(9). Press power button on the baseboard to start CEM501/511.
4
TM
baseboard, for example,
9418D501010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A2 June 2017
Printed in Taiwan
CEM501/511 Quick Installation Guide
Checklist
CEM501/511 Board x1
Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information DVD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.

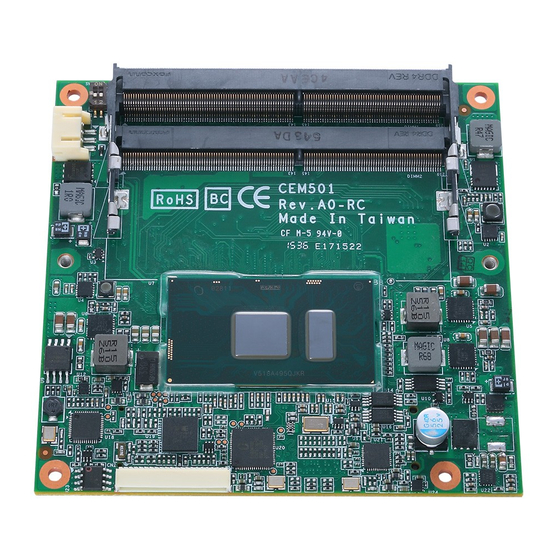

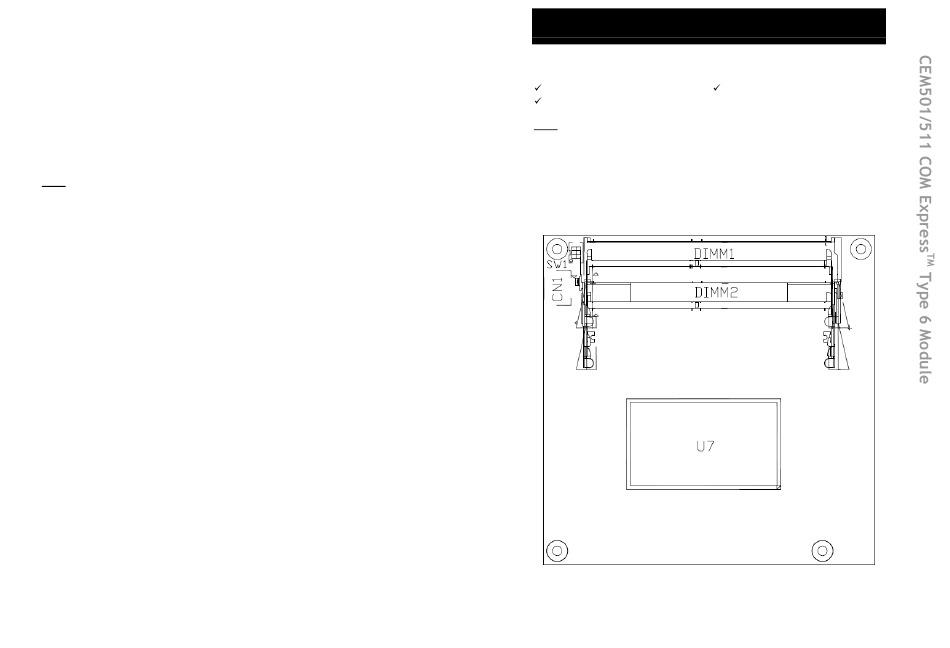

Module Layout
Top View
9418D501010E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A2 June 2017
Printed in Taiwan
Product Information DVD x1
1
