CEM510 COM Express

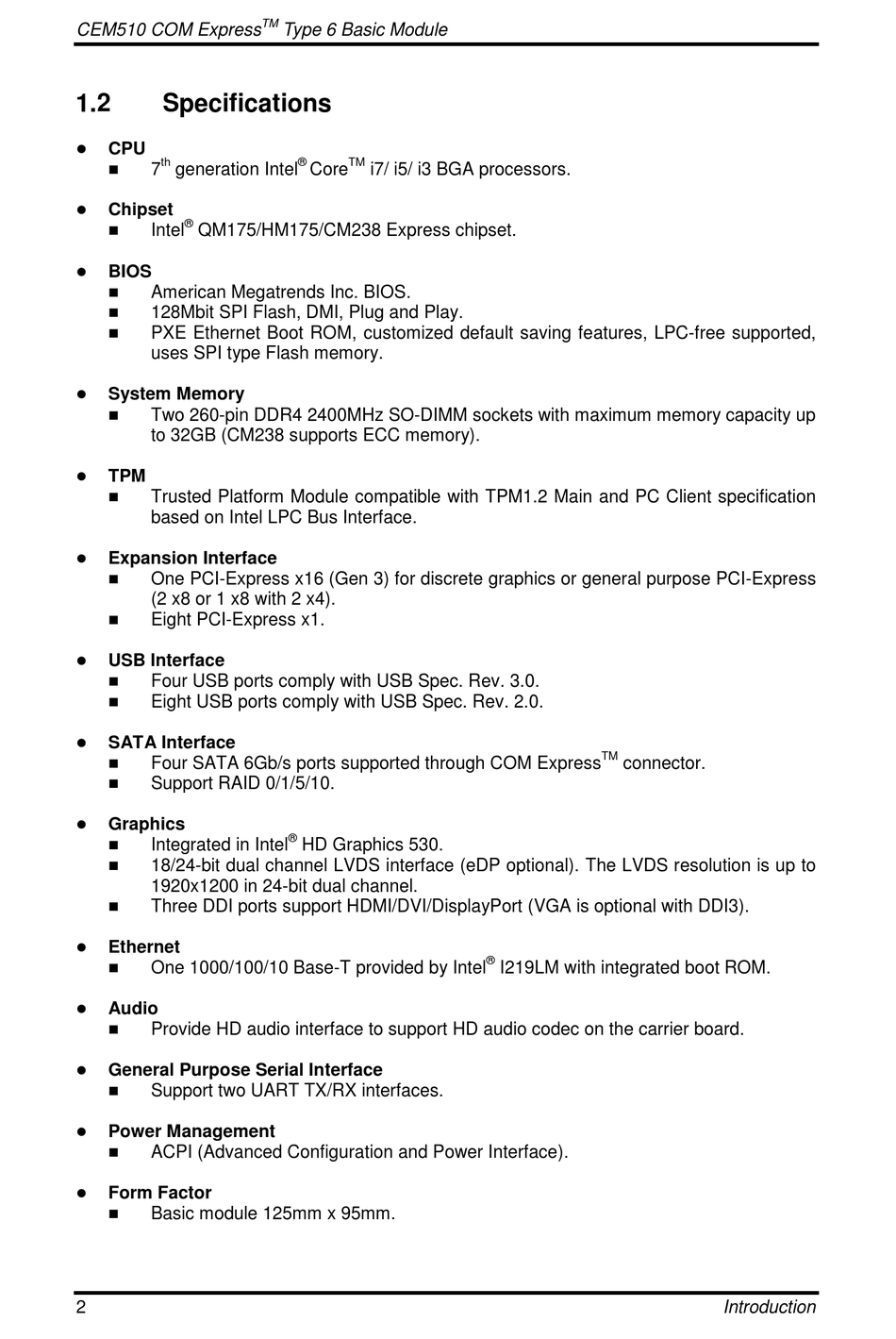

1.2

Specifications

 CPU
th
 7 generation Intel

Chipset
®
 Intel QM175/HM175/CM238 Express chipset.
 BIOS
 American Megatrends Inc. BIOS.
 128Mbit SPI Flash, DMI, Plug and Play.
 PXE Ethernet Boot ROM, customized default saving features, LPC-free supported,
uses SPI type Flash memory.
 System Memory

Two 260-pin DDR4 2400MHz SO-DIMM sockets with maximum memory capacity up
to 32GB (CM238 supports ECC memory).
 TPM
 Trusted Platform Module compatible with TPM1.2 Main and PC Client specification
based on Intel LPC Bus Interface.
 Expansion Interface
 One PCI-Express x16 (Gen 3) for discrete graphics or general purpose PCI-Express
(2 x8 or 1 x8 with 2 x4).
 Eight PCI-Express x1.
 USB Interface
 Four USB ports comply with USB Spec. Rev. 3.0.
 Eight USB ports comply with USB Spec. Rev. 2.0.
 SATA Interface
 Four SATA 6Gb/s ports supported through COM Express

Support RAID 0/1/5/10.
 Graphics
 Integrated in Intel
 18/24-bit dual channel LVDS interface (eDP optional). The LVDS resolution is up to
1920x1200 in 24-bit dual channel.

Three DDI ports support HDMI/DVI/DisplayPort (VGA is optional with DDI3).
 Ethernet
 One 1000/100/10 Base-T provided by Intel

Audio
 Provide HD audio interface to support HD audio codec on the carrier board.
 General Purpose Serial Interface
 Support two UART TX/RX interfaces.
 Power Management
 ACPI (Advanced Configuration and Power Interface).
 Form Factor

Basic module 125mm x 95mm.
2
TM
Type 6 Basic Module
® TM
Core i7/ i5/ i3 BGA processors.
®
HD Graphics 530.
TM
connector.
®
I219LM with integrated boot ROM.
Introduction
