CEM312/313 COM Express

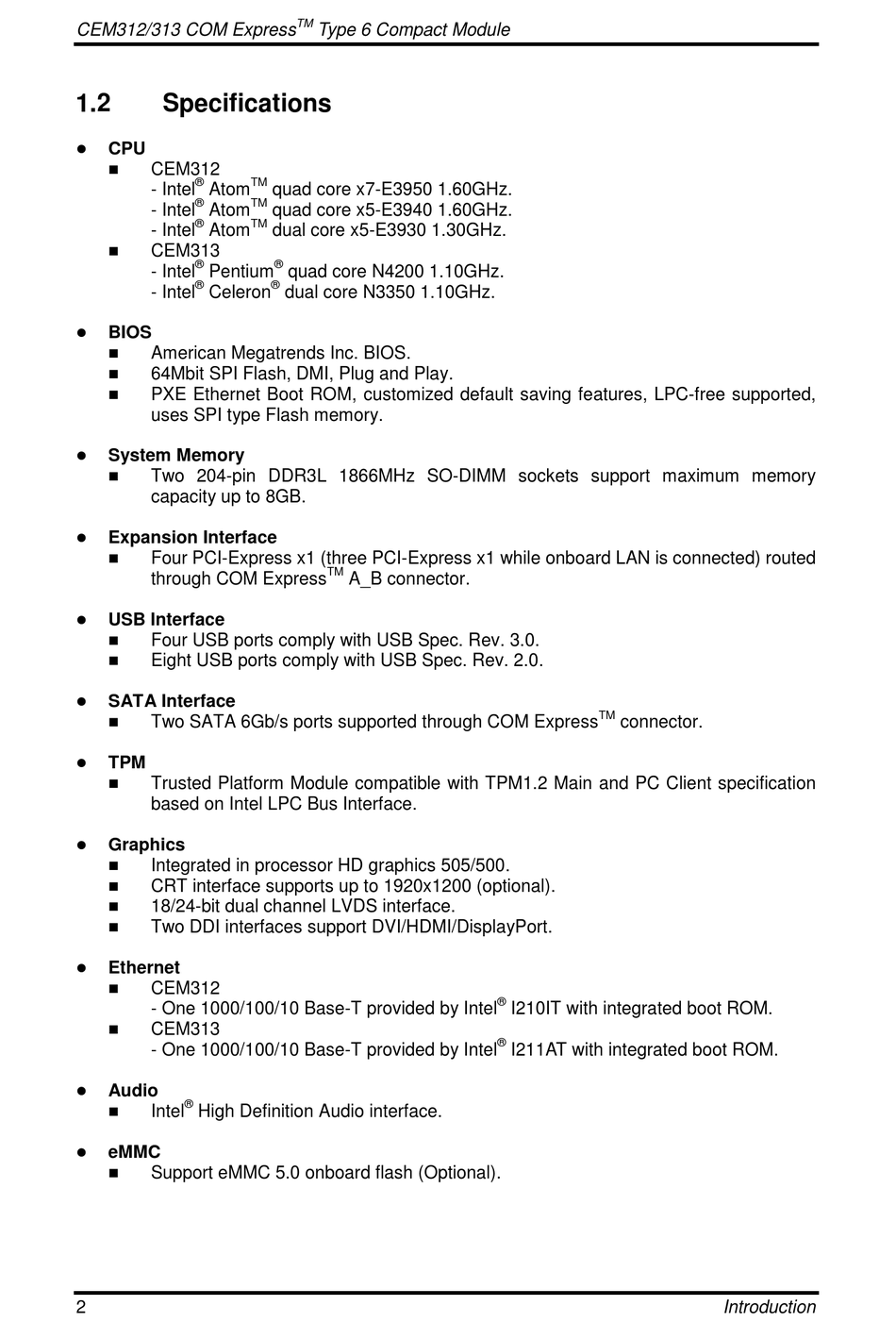

1.2

Specifications

 CPU
 CEM312
®
- Intel Atom
®
- Intel Atom
®
- Intel Atom

CEM313
®
- Intel Pentium
®
- Intel Celeron
 BIOS
 American Megatrends Inc. BIOS.
 64Mbit SPI Flash, DMI, Plug and Play.

PXE Ethernet Boot ROM, customized default saving features, LPC-free supported,
uses SPI type Flash memory.
 System Memory
 Two 204-pin DDR3L 1866MHz SO-DIMM sockets support maximum memory
capacity up to 8GB.
 Expansion Interface
 Four PCI-Express x1 (three PCI-Express x1 while onboard LAN is connected) routed
through COM Express
 USB Interface
 Four USB ports comply with USB Spec. Rev. 3.0.
 Eight USB ports comply with USB Spec. Rev. 2.0.
 SATA Interface
 Two SATA 6Gb/s ports supported through COM Express
 TPM

Trusted Platform Module compatible with TPM1.2 Main and PC Client specification
based on Intel LPC Bus Interface.
 Graphics
 Integrated in processor HD graphics 505/500.
 CRT interface supports up to 1920x1200 (optional).

18/24-bit dual channel LVDS interface.

Two DDI interfaces support DVI/HDMI/DisplayPort.
 Ethernet
 CEM312
- One 1000/100/10 Base-T provided by Intel
 CEM313
- One 1000/100/10 Base-T provided by Intel
 Audio
®
 Intel High Definition Audio interface.

eMMC
 Support eMMC 5.0 onboard flash (Optional).
2
TM
Type 6 Compact Module
TM
quad core x7-E3950 1.60GHz.
TM
quad core x5-E3940 1.60GHz.
TM
dual core x5-E3930 1.30GHz.
®
quad core N4200 1.10GHz.
®
dual core N3350 1.10GHz.
TM
A_B connector.
TM
connector.
®
I210IT with integrated boot ROM.
®
I211AT with integrated boot ROM.
Introduction
