AXIOMTEK CEM312 Quick Installation Manual

Quick Start
The basic procedures required to power on CEM312/313:
(1). Require DC +12V power at minimum 2.67A. Make sure the power is
OFF before connecting the CEM312/313.
(2). Check to ensure the onboard switch SW1-1 is set to default (OFF
position).
(3). Firmly install DDR3L module in SODIMM1/SODIMM2 until fully seated.
For single memory channel configuration, install memory module in
channel 0 (SODIMM2) DDR3L SO-DIMM socket. For dual memory
channel configuration, install memory modules of the same size, chip
width, density and rank in both channel 0 (SODIMM1) and channel 1
(SODIMM2) DDR3L SO-DIMM sockets.
(4). Attach heatsink to the CEM312/313, refer to section Installing
Thermal Solution.
(5). Install the CEM312/313 onto COM Express
CEB94006 baseboard.
(6). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(7). Firmly attach power supply to the baseboard's power connector.
(8). Turn on the system power.
(9). Press power button on the baseboard to start CEM312/313.
4
TM
baseboard, for example,
9418D312010E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A2 November 2018
Printed in Taiwan
CEM312/313 Quick Installation Guide
Checklist
CEM312/313 Board x1 Product Information CD x1
Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information CD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.

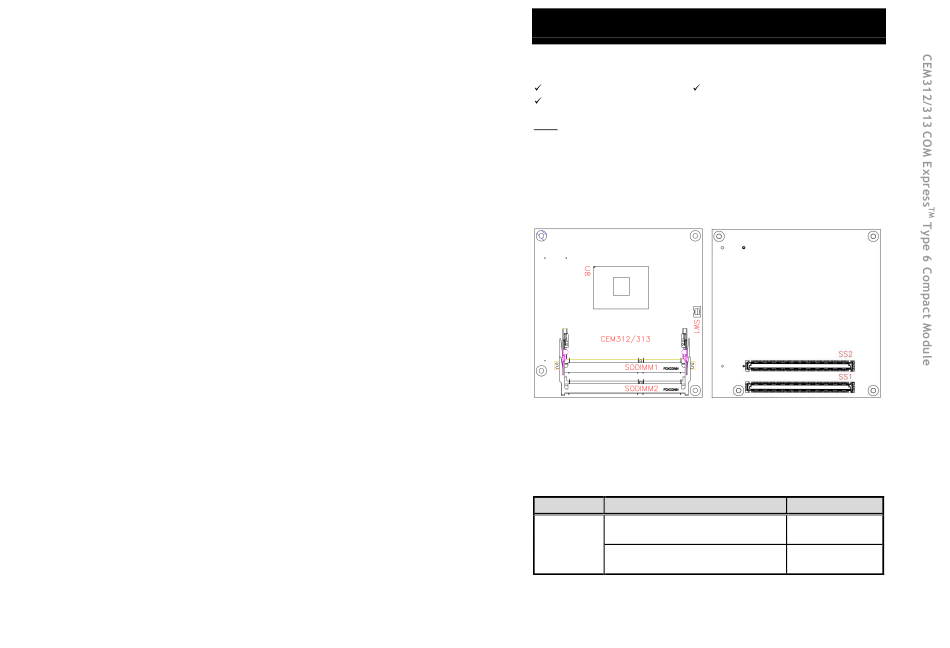

Module Layout
Top View
Switch Settings
Before applying power to the CEM312/313, please make sure all of the
switches are in factory default positions.
Switch Description
Auto Power On
Default: Disable
SW1
Restore BIOS Optimal Defaults
Default: Normal Operation
9418D312010E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A2 November 2018
Printed in Taiwan
Bottom View
Setting
SW1-1 OFF
SW1-2 OFF
1
