AXIOMTEK CEM530 Quick Installation Manual

Quick Start
The basic procedures required to power on CEM530:
(1). Make sure the power is OFF before connecting the CEM530.
(2). Check to ensure the onboard switch SW1-1 and SW1-2 are set to
default (OFF position).
(3). Firmly install DDR4 SO-DIMM in DIMM1/DIMM2/optional SDIMM1 until
fully seated. For single memory channel configuration, install memory
module in channel 0 (DIMM1) or SDIMM1 DDR4 SO-DIMM socket. For
dual memory channel configuration, install memory modules of the
same size, chip width, density and rank in both channel 0 (DIMM1) and
channel 1 (DIMM2) DDR4 SO-DIMM sockets.
When using SDIMM1 memory socket, please use at least 8mm
height baseboard
(4). Attach heatsink with fan to the CEM530, refer to section Installing
Thermal Solution.
(5). Install the CEM530 onto COM Express
CEB94011
baseboard.
(6). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(7). Firmly attach power supply to the baseboard power connector.
(8). Turn on the system power.
(9). Press power button on the baseboard to start CEM530.
4
TM baseboard, for example,
942000000200
©
Copyright 2022 Axiomtek Co., Ltd.
Version 1.0 March 2022
Printed in Taiwan
CEM530 Quick Installation Guide
Checklist
 CEM530 Board x1
 Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
For user manual, drivers, certificates and technical
support, please visit our product website or scan
QR code.
https://www.axiomtek.com.tw/Default.aspx?Me
nuId=Products&FunctionId=ProductView&ItemI
d=26642&C=CEM530&upcat=332

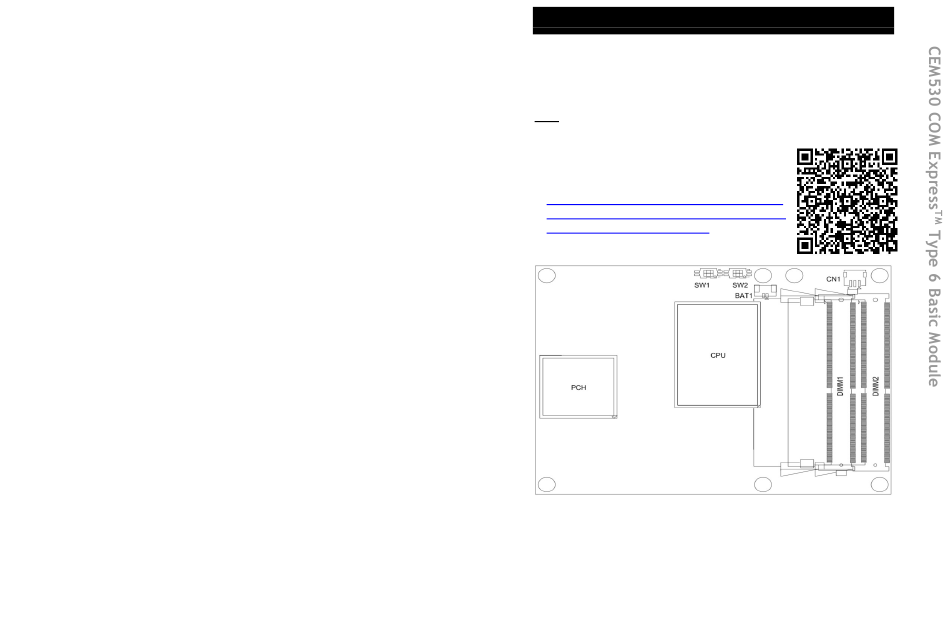

Module Layout
Top View
942000000200
©
Copyright 2022 Axiomtek Co., Ltd.
Version 1.0 March 2022
Printed in Taiwan
1
