CEM700 COM Express

Type 7 Basic Module



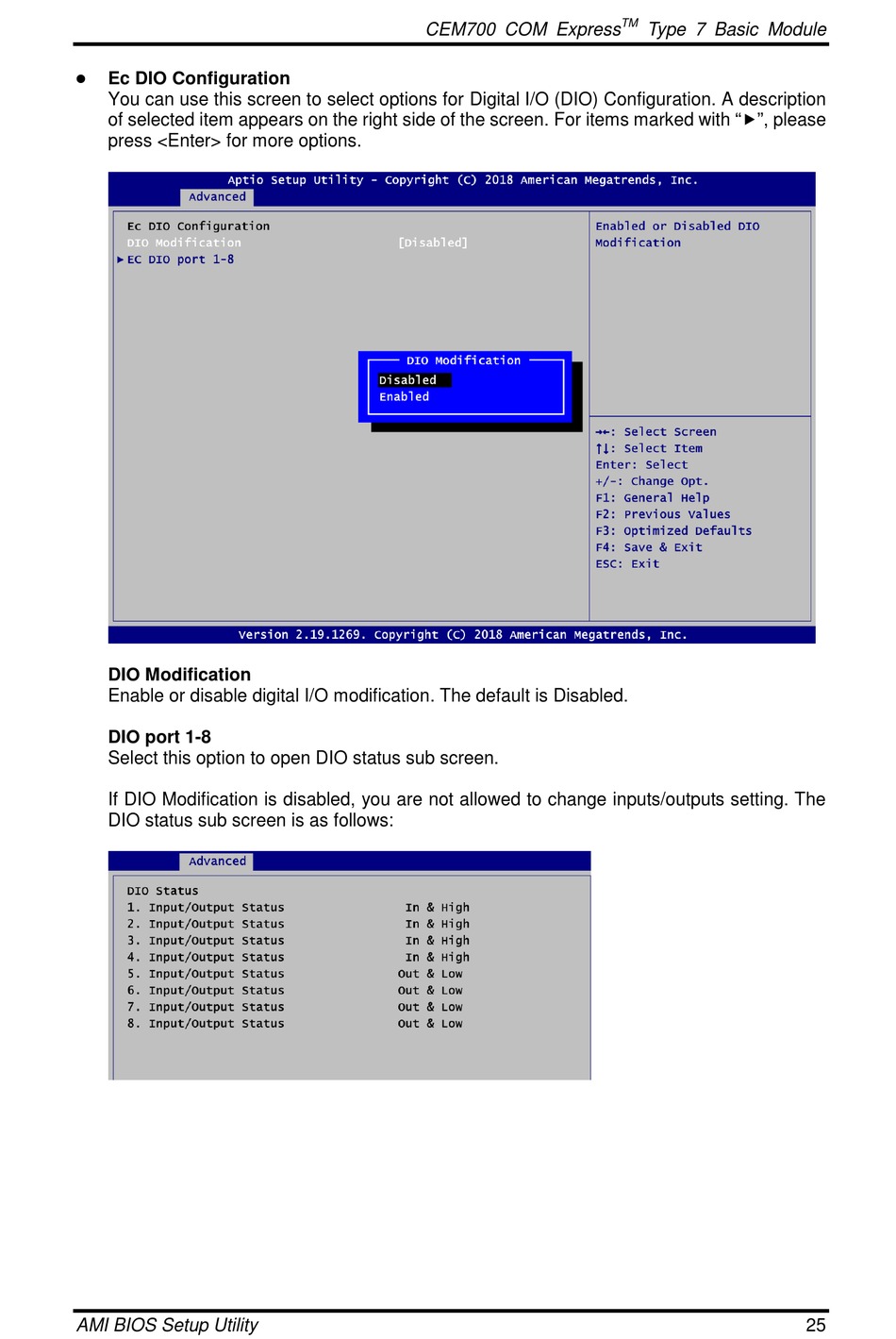

Ec DIO Configuration

You can use this screen to select options for Digital I/O (DIO) Configuration. A description

of selected item appears on the right side of the screen. For items marked with "", please

press <Enter> for more options.

DIO Modification

Enable or disable digital I/O modification. The default is Disabled.

DIO port 1-8

Select this option to open DIO status sub screen.

If DIO Modification is disabled, you are not allowed to change inputs/outputs setting. The

DIO status sub screen is as follows:

AMI BIOS Setup Utility
