AXIOMTEK CEM311 Quick Installation Manual

Quick Start
The basic procedures required to power on CEM310/311:
(1). Require DC +4.75V~20V power at minimum 6.75A (4.75V) and 1.6A
(20V). Make sure the power is OFF before connecting the
CEM310/311.
(2). Check to ensure the onboard switch SW1 is set to default (ON (up)
position).
(3). Attach thermal solution to the CEM310/311, refer to section Installing
Thermal Solution.
(4). Install the CEM310/311 onto COM Express
CEB94008 or CEB94017 baseboard.
(5). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(6). Firmly attach power supply to the baseboard power connector.
(7). Turn on the system power.
(8). Press power button on the baseboard to start CEM310/311.
4
All manuals and user guides at all-guides.com
TM
baseboard, for example,
9418D310000E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A3 October 2018
Printed in Taiwan
CEM310 / CEM311 Quick Installation Guide
Checklist
CEM310/311 Board x1 Product Information DVD x1
Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information DVD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.

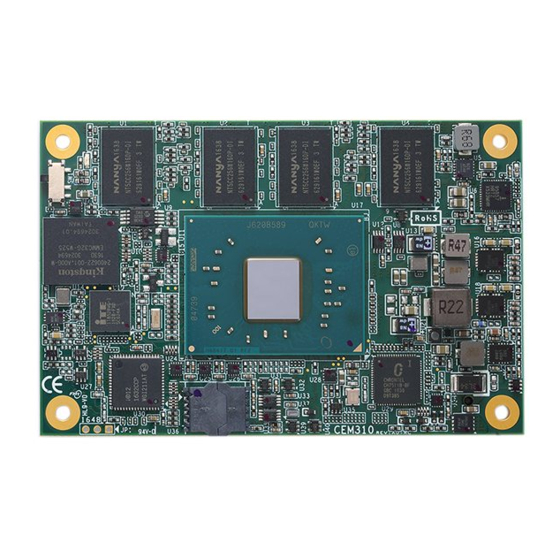

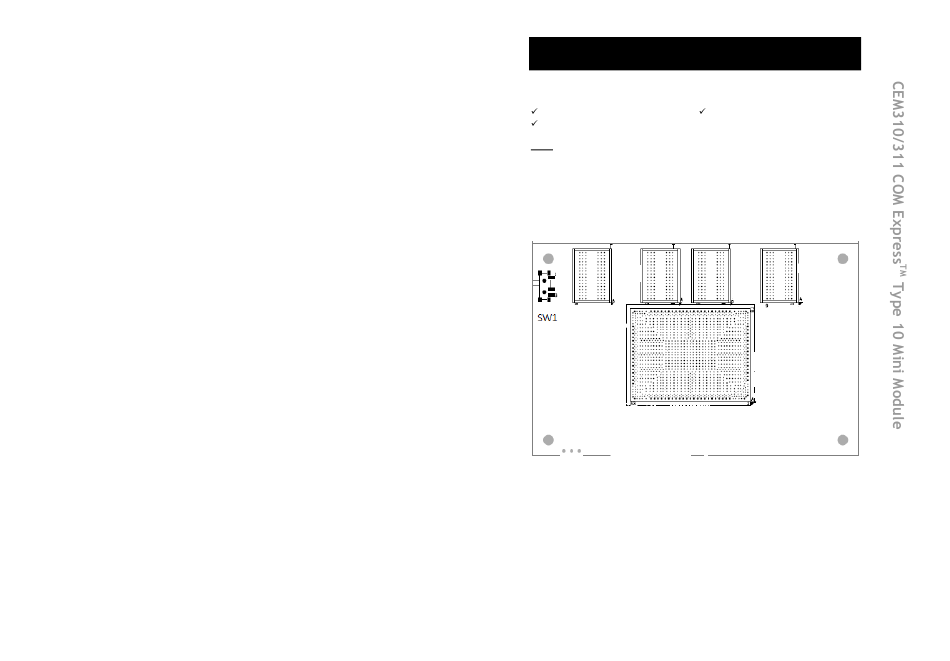

Module Layout
T op View
9418D310000E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A3 October 2018
Printed in Taiwan
1
