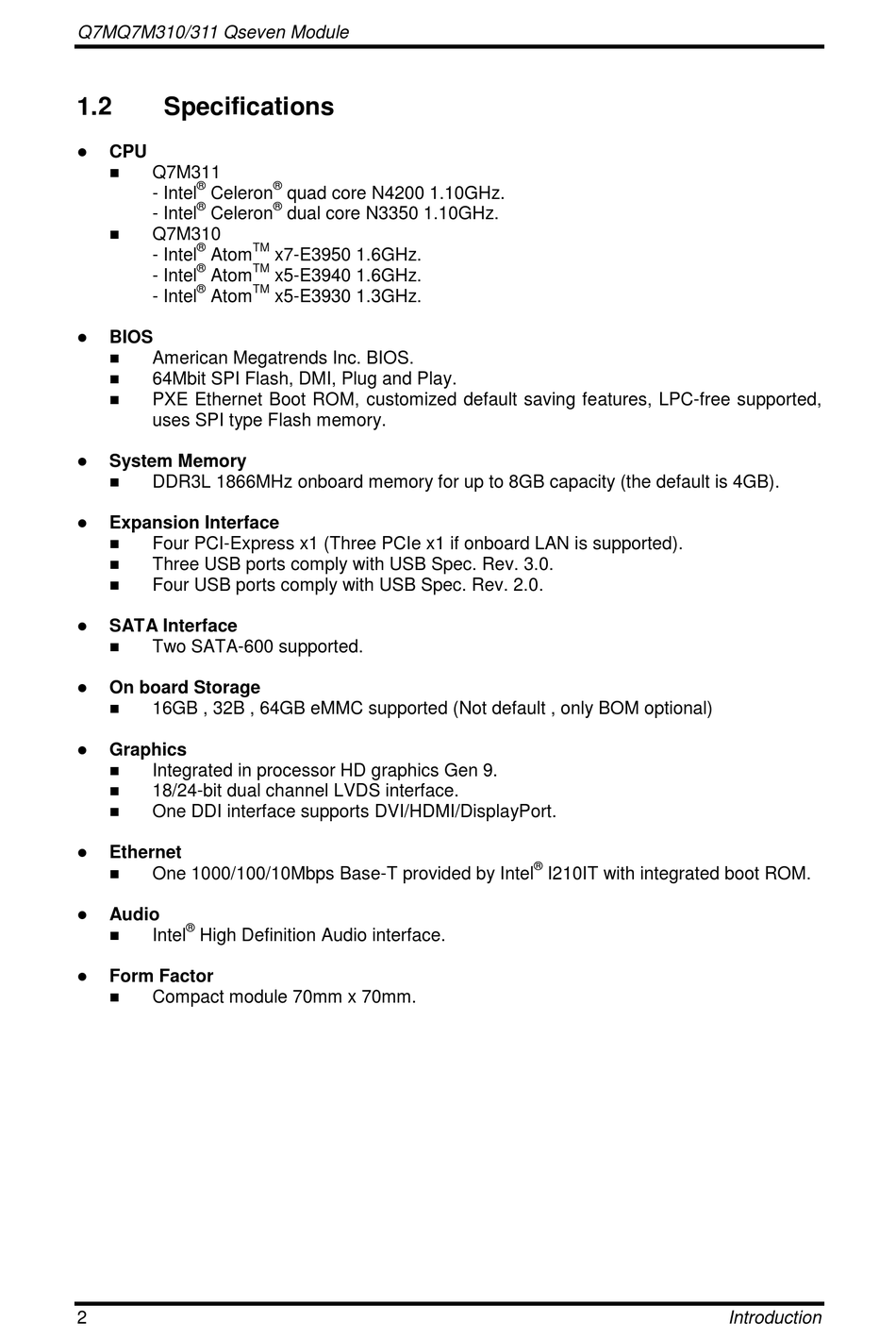

Q7MQ7M310/311 Qseven Module
1.2

Specifications

 CPU
 Q7M311
®
- Intel Celeron
®
- Intel Celeron
 Q7M310
®
- Intel Atom
®
- Intel Atom
®
- Intel Atom
 BIOS
 American Megatrends Inc. BIOS.
 64Mbit SPI Flash, DMI, Plug and Play.

PXE Ethernet Boot ROM, customized default saving features, LPC-free supported,
uses SPI type Flash memory.
 System Memory
 DDR3L 1866MHz onboard memory for up to 8GB capacity (the default is 4GB).
 Expansion Interface
 Four PCI-Express x1 (Three PCIe x1 if onboard LAN is supported).
 Three USB ports comply with USB Spec. Rev. 3.0.
 Four USB ports comply with USB Spec. Rev. 2.0.
 SATA Interface
 Two SATA-600 supported.
 On board Storage
 16GB , 32B , 64GB eMMC supported (Not default , only BOM optional)
 Graphics
 Integrated in processor HD graphics Gen 9.

18/24-bit dual channel LVDS interface.
 One DDI interface supports DVI/HDMI/DisplayPort.
 Ethernet
 One 1000/100/10Mbps Base-T provided by Intel
 Audio
®

Intel High Definition Audio interface.
 Form Factor
 Compact module 70mm x 70mm.
2
®
quad core N4200 1.10GHz.
®
dual core N3350 1.10GHz.
TM
x7-E3950 1.6GHz.
TM
x5-E3940 1.6GHz.
TM
x5-E3930 1.3GHz.
®
I210IT with integrated boot ROM.
Introduction
