4.3 Mechanical installation

The material for fixing the inverter and the installation mode vary with the different installation sites.
It is recommended to install the inverter vertically to the firm wall or metal bracket. Here we take
wall installation as an example to introduce the installation matters of the inverter.
As shown in Fig 4.7, the overall installation of the inverter should be vertical to the horizontal
surface.

4.3.1 Installation of three-phase inverter

Table 4-6 Instruction of installation bracket
12kW / 15kW / 17kW / 20kW-M / 20kW /
25kW / 30kW / 33kW / 35kW / 40kW
Installation steps of three-phase inverter:
(1) Use the punch positioning plate in the packaging box to determine the punch position. As
shown in Figure 4.8. Level the holes with a level ruler and mark it with a marking pen.

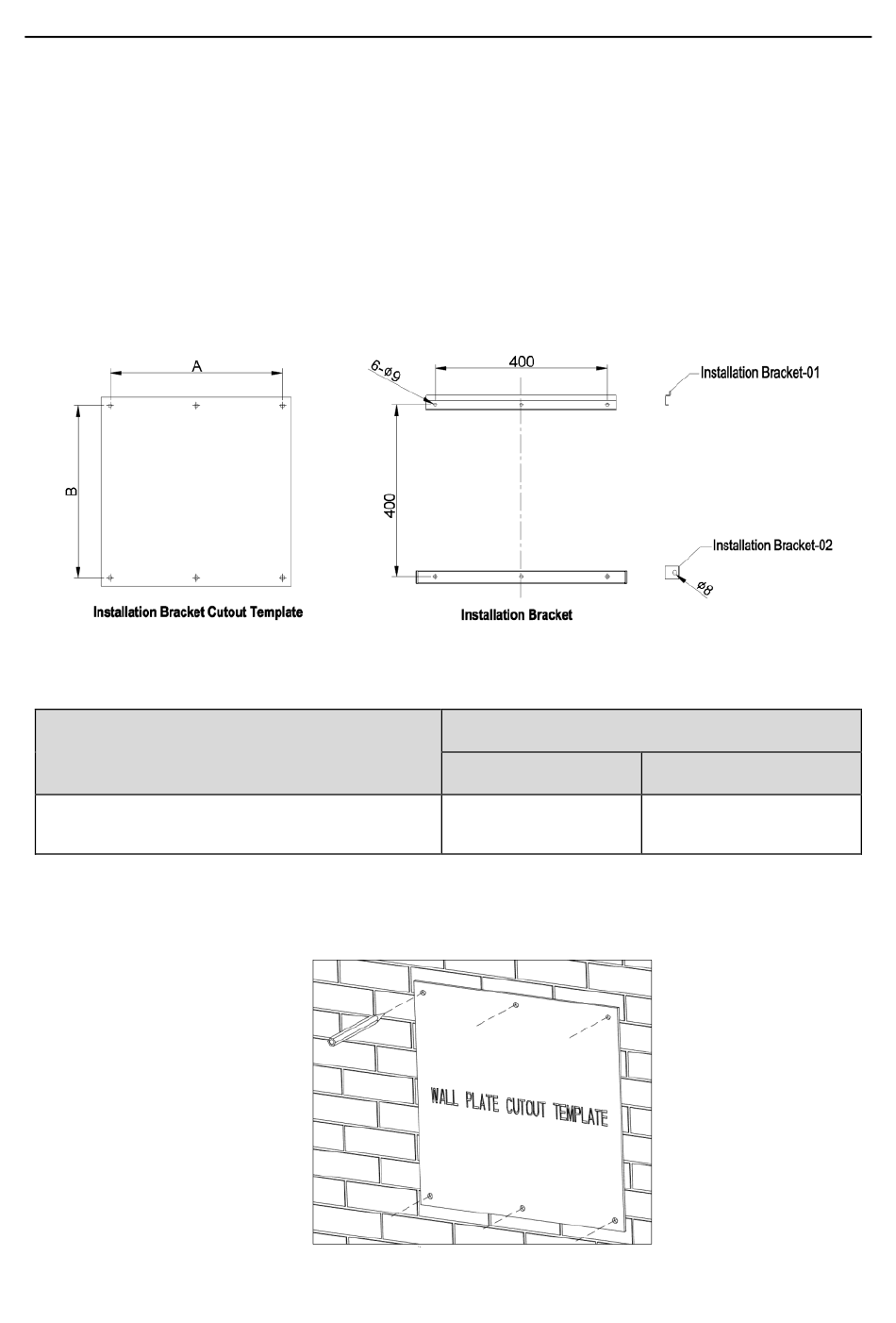

Figure 4.7 Installation bracket
Model
Figure 4.8 Mark the punch position
Installation hole
A(mm)
400
25
Installation
B(mm)
400
