Table 6-5 Inverter control
Control item
On/Off control
Restart
Record clear
Restore to
factory

6.4.8 Mode settings

The default mode of series grid-tied solar inverter is "independent". But if the current of solar
modules are joined into the inverter as figure 6.12 shows, it is necessary to switch the mode into
"parallel".
The mode 12kW / 15kW /17kW / 20kW / 25kW / 30kW / 33kW / 35kW / 40kW Please refer to
section 6.4.4 for detailed setting.

6.5 Grid Certification Choice

Power on the inverter by DC input for the first time or after Restore factory settings, it will appear
on the LCD screen prompts as follows:
LCD display
O n / O f f C t r l
O N
O F F
R e s t a r t
P r e s s E N T t o e x e c u t e .
P r e s s E S C t o c a n c e l .
C l e a r a l l R e c o r d : S u r e ？
P r e s s E N T t o e x e c u t e .
P r e s s E S C t o c a n c e l .
R e s t o r e t o F a c t o r y
P r e s s E N T t o e x e c u t e .
P r e s s E S C t o c a n c e l .

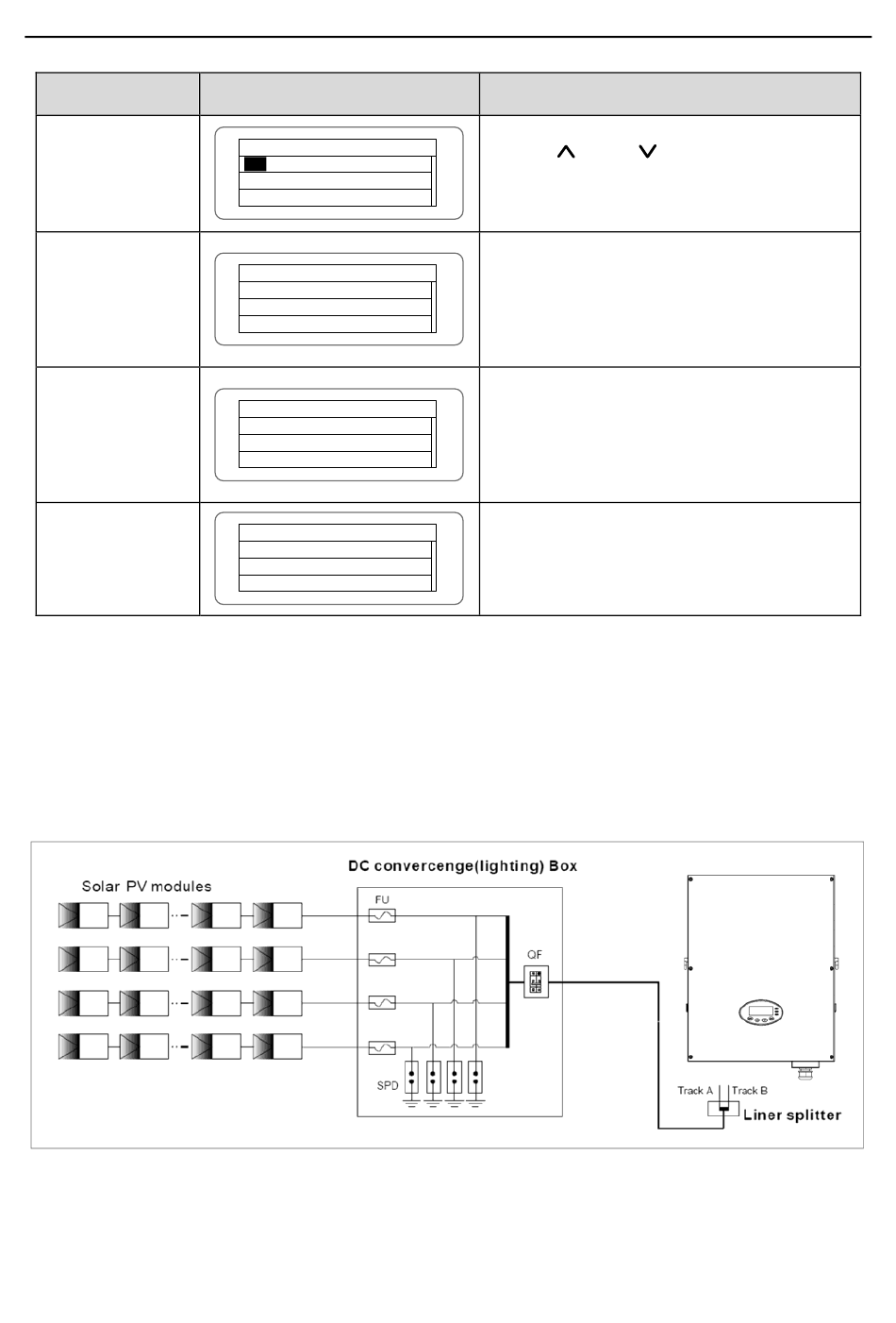

Figure 6.12 "Parallel" input mode
Control the "On/Off" through the panel.
Press " " and "
interface to select the operation. Press
"ENT" to ensure the operation and press
"ESC" to return.
Restart the inverter through the panel.
And save the all settings and operation
record.
Press "ENT" to ensure restarting and the
inverter will begin to self-inspect or press
"ESC" to return.
Press "ENT" to ensure clear all records or
press "ESC" to return.
"Record clear" is to clear all setting
parameters through the panel, restore to
the factory setting and save all history
operation records.
"Restore to factory" is to clear all setting
parameters and history operation records
through the panel, restore to the factory
setting. Press "ENT" to ensure clear or
press "ESC" to return.
