INVT iMars Operation Manual page 53

iMars grid-tied solar inverters
Setting item

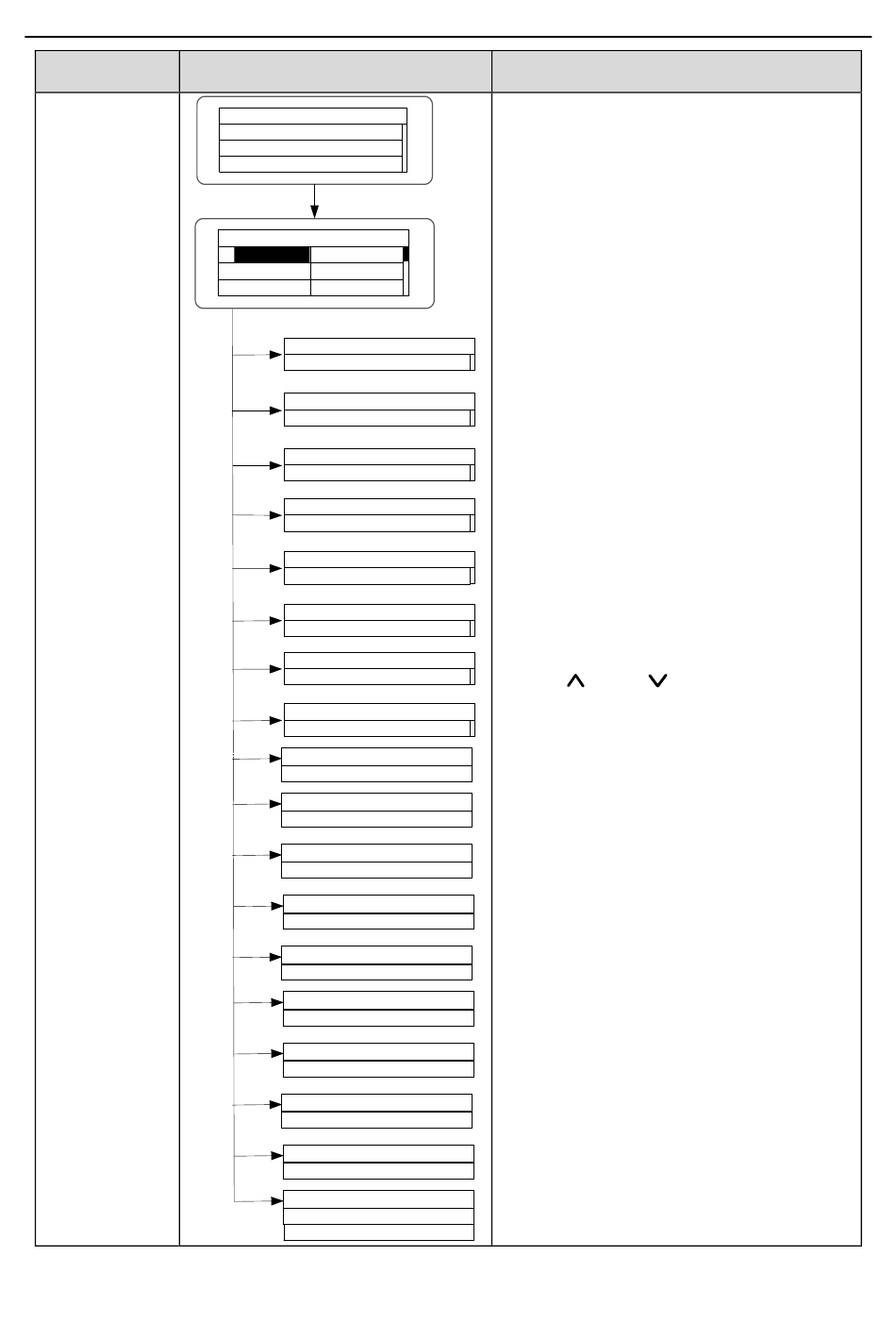

Run Param
LCD display
Input Password
0000
Run Param
UV volt 1 OV time 1
UV time 1 UF Freq 1
OV volt 1 UF time 1
ACUV Volt(phase volt)
115V
ACUV Time
00.04s
ACOV Volt(phase volt)
309V
ACOV Time
00.02s
ACUF Frequency
47.99Hz
ACUF Time
00.12s
ACOF Frequency
50.50hz
ACOF Time
00.12s
ACUV Volt(phase volt)
196V
ACUV Time
0.19s
ACOV Volt(phase volt)
252V
ACOV Time
01.90s
ACUF Frequency
49.49Hz
ACUF Time
595s
ACOF Frequency
50.2Hz
ACOF Time
115s
Run Restart Time
060s
Island protect:on
OFF
ON
There are 2 protections under
G83/G59(UK) and PEA(Thailand)
standards, and there is only one
protection under other grid tied
standard.
Set ACUV Volt, ACUV time and others
under the related submenus, and then
press " " and "
finally press "ENT" to confirm.
Generally, it is only necessary to set
ACUV and ACUF value for ACUV and
ACUF protection. And it is necessary to
set ACOF1 and ACOF2 together for
ACOF protection.
51
Display panel
Instruction
" to modify, and
