iMars grid-tied solar inverters
Installation

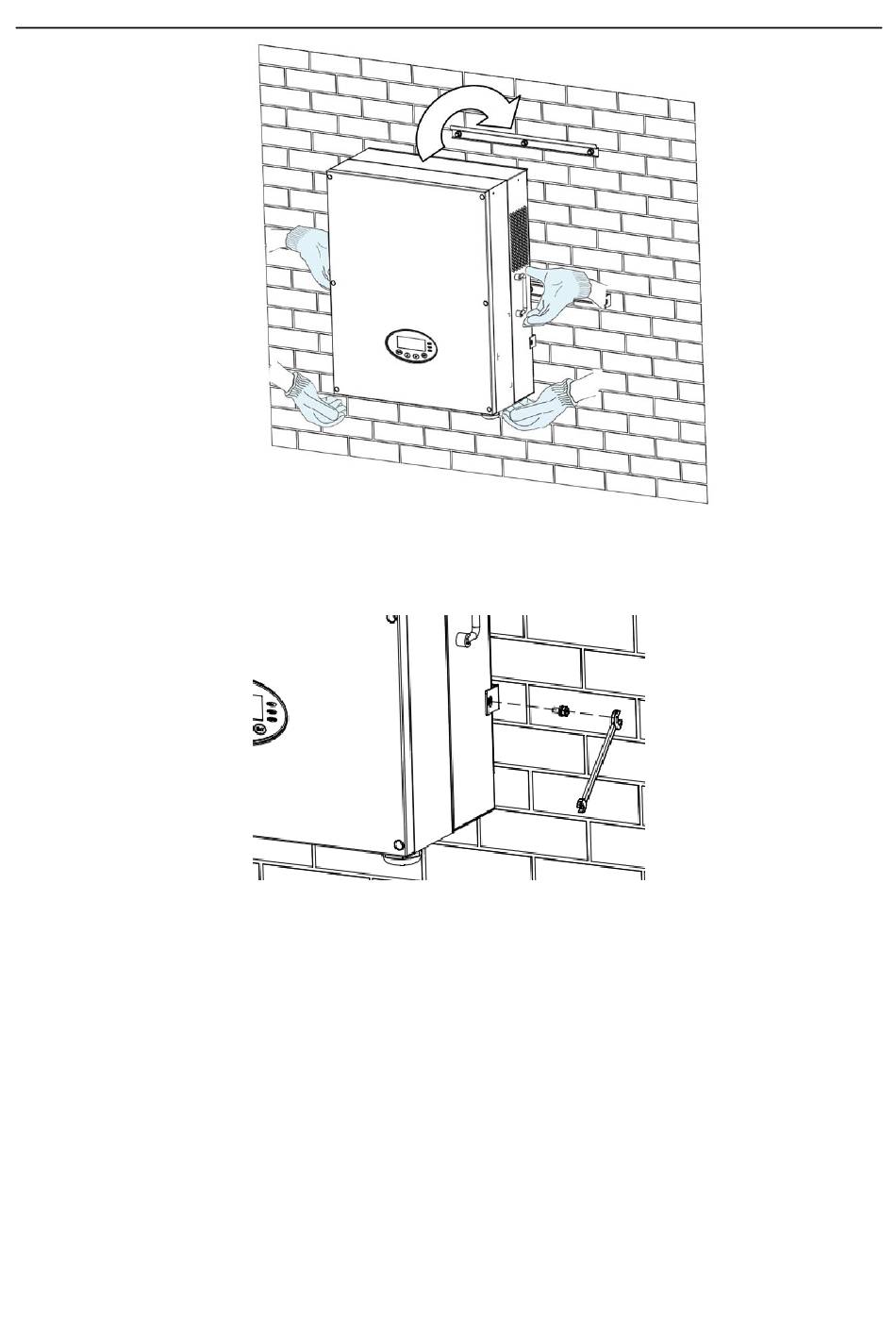

Figure 4.12 Installation of inverter
(6) Ensure the inverter is installed properly and tighten the M6X16 bolts into the screw holes
on the left and right side of inverter(tightening torque is 4N•m). As shown in Figure 4.13.
Figure4.13 Installation of M6X16 bolts
27
