iMars grid-tied solar inverters

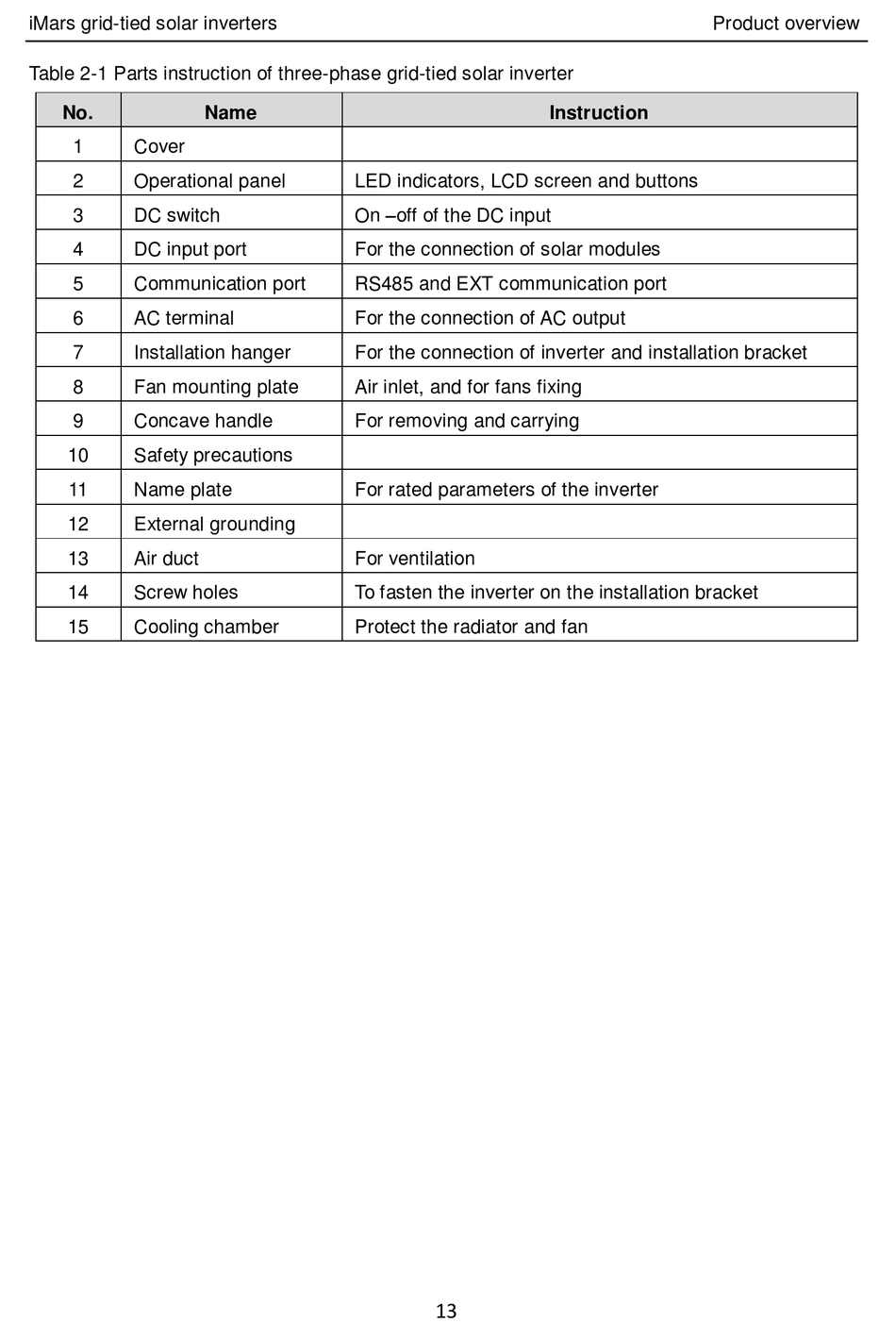

Table 2-1 Parts instruction of three-phase grid-tied solar inverter
No.
1 Cover
2 Operational panel
3 DC switch
4 DC input port
5 Communication port
6 AC terminal
7 Installation hanger
8 Fan mounting plate
9 Concave handle
10 Safety precautions
11 Name plate
12 External grounding
13 Air duct
hole
14 Screw holes
15 Cooling chamber
Name
LED indicators, LCD screen and buttons
On –off of the DC input
For the connection of solar modules
RS485 and EXT communication port
For the connection of AC output
For the connection of inverter and installation bracket
Air inlet, and for fans fixing
For removing and carrying
For rated parameters of the inverter
For ventilation
To fasten the inverter on the installation bracket
Protect the radiator and fan
Instruction
13
Product overview
