iMars grid-tied solar inverters
(2) Drill 6 installation holes on the wall with electric drill. As shown in Figure 4.9.
(3) Fix the expansion bolts to the 6 installation holes with hammer, as shown in Figure 4.10.
(4) Fix the installation bracket onto the expansion bolts and ensure the installation is firm
enough(tightening torque is 13N•m) . As shown in Figure 4.11.
(5) Hang the inverter onto the installation bracket and ensure the installation is firm enough.
As shown in Figure 4.12.

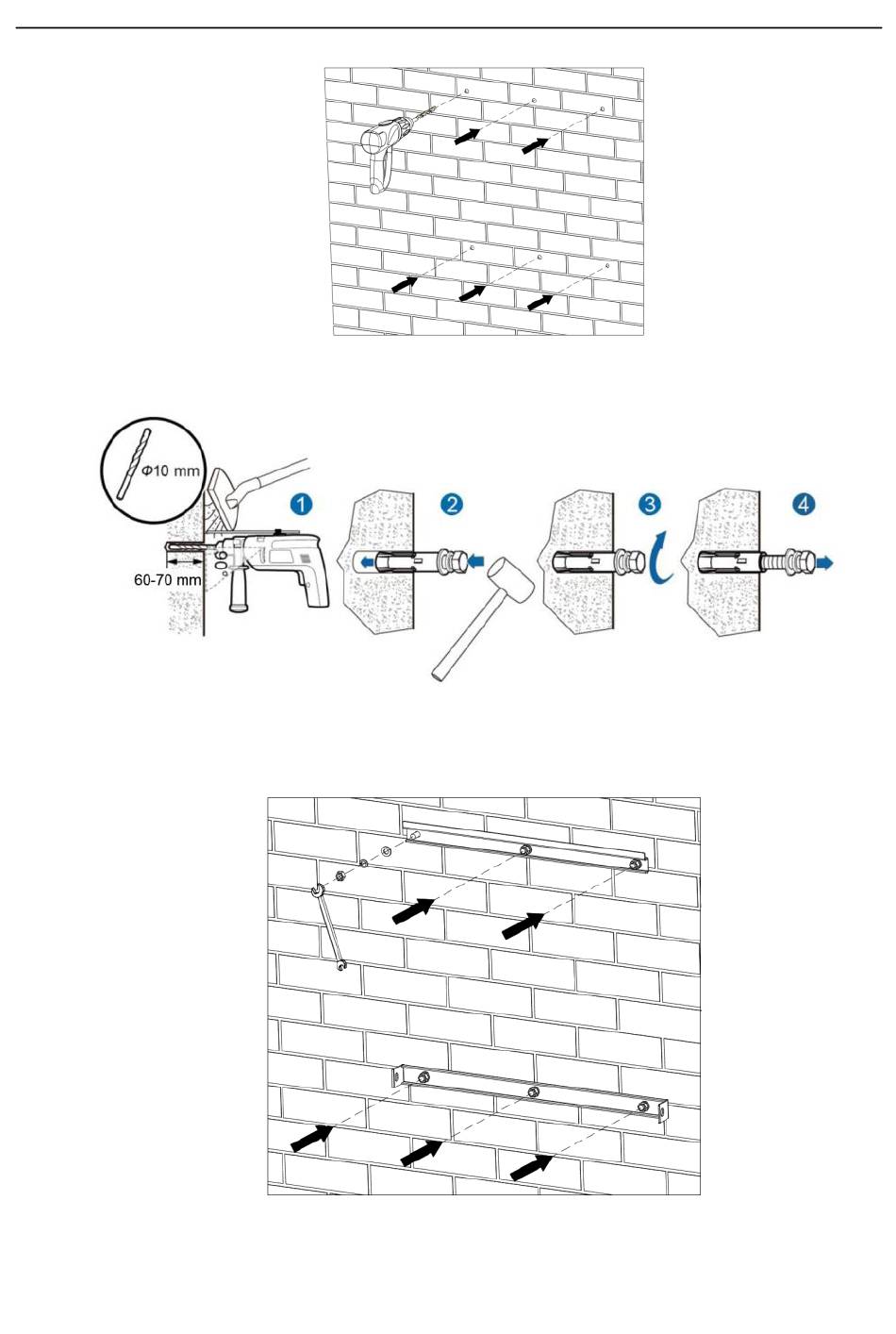

Figure 4.9 Drilling
Figure 4.10 Install expansion bolts
Figure 4.11 Fix the installation bracket
26
Installation
