3.3

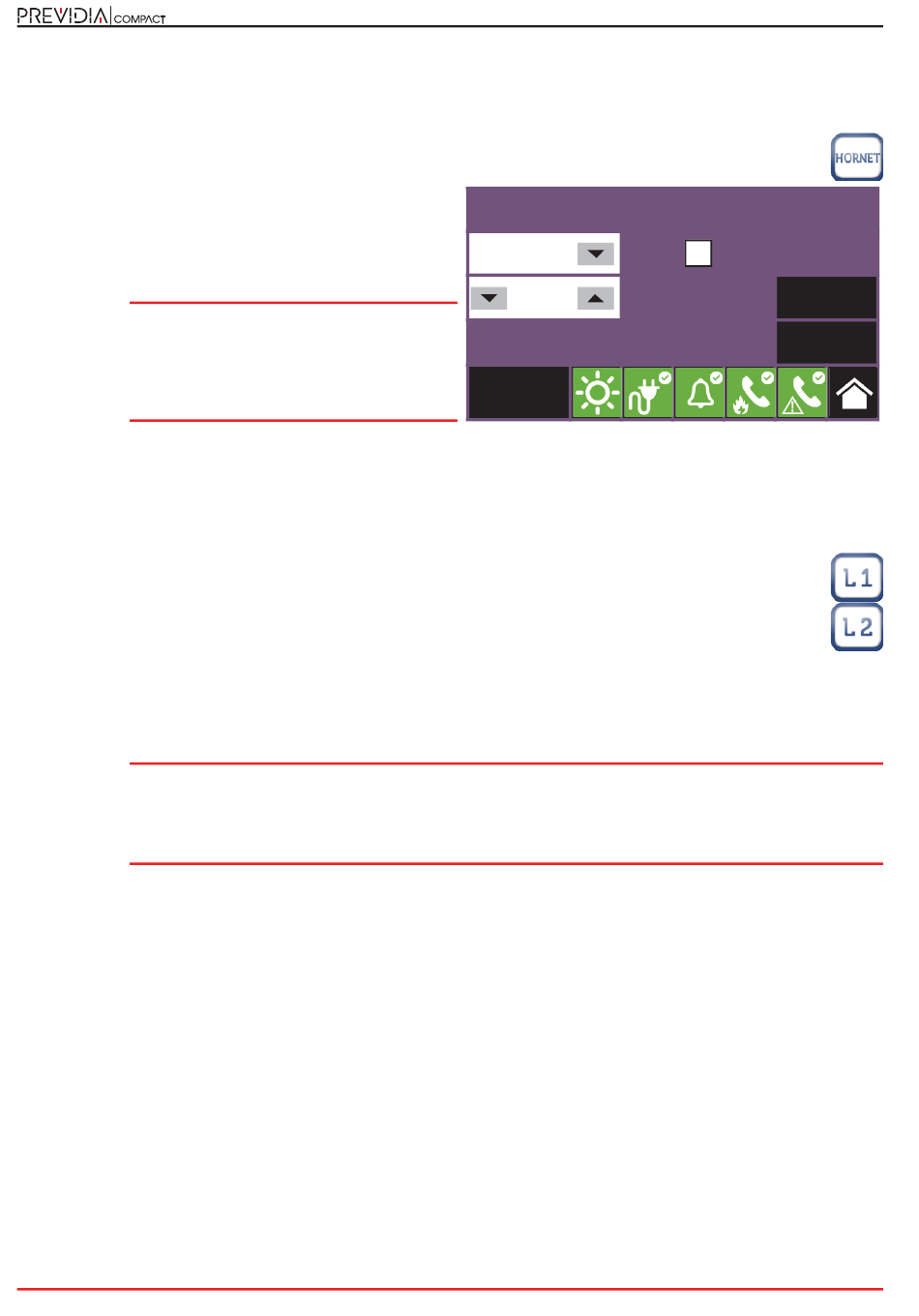

Configuring the Hornet+ network

If the installation has control panels connected in a Hornet+ network, it will be necessary to assign the network address
to each control panel.
To set the network parameters you must enter the programming phase of the control panel (paragraph 2.2)
and then tap on the appropriate icon inside the control panel configuration screen.
The available parameters are:
• Bit rate (bps)
• Network Address
• Hornet gateway, option that, if activated, will set the
control panel as the gateway to the network
Note:
Only one point can be set as the gateway to
a Hornet+ network.
Each control panel in the same Hornet+
network must be set with the same bit rate
and univocal address.
The Esc and Set buttons will allow you to exit the section without changing the programming or saving it.
3.4

Configuring the loops

The operations for the configuration of the loops and the devices connected to them can be reached by first
accessing the control panel programming section (paragraph 2.2) and then by tapping on the icon of the loop
you wish to configure.
The section reached in this way provides the following buttons:
• Auto-configure, button to access the automatic loop-configuration procedure (refer to paragraph 3.4.1).
• Diagnostics, button to access the section for loop diagnostics (refer to paragraph 3.4.2).
• Parameters, button to access the section for the selection of the type of devices installed on the loop (refer to
paragraph 3.4.3).
• Esc, button to step back.
Note:
For the first configuration of the system, it is recommended that you run the loop configuration after
appropriate addressing of the devices as per the following order of access to the sections:
• Parameters
• Auto-configure
• Diagnostics
.
3.4.1 Auto-configuration of the loop
Auto-configure
Pressing the
• Enroll
• Readdress
• Update
• Add/Change
12
button provides you with the following buttons for access to the relative subsections:
Fire detection and extinguishant system
Hornet Configuration
57600 bps
000 Address
Access level:3
Hornet gateway
Esc
Set
System Parameters
