Chapter 5 Commissioning; Testing The Control Panel - INIM Electronics Previdia Compact Manual For System Configuration, Commissioning And Maintenance

Commissioning
The commissioning phase is a set of tests and verifications which are necessary to ensure the full efficiency and proper
functioning of the system as specified in the executive project. This phase is essential and must be performed in a
scrupulously in accordance the regulatory requirements of the country where the system is installed and in full respect of
the recommendations herein.
Ensure the test and verification procedures are performed only after securing the system and after having verified that
any device activations controlled by the system will not cause any conditions of danger, and that all the building
occupants who can be reached by the audible and visual signalling have been preventively informed.
Ensure that the person who is responsible for the security of the building where the tests and inspections are being
carried out has taken countermeasures to avoid any situations of panic or distress for the building occupants.
5.1

Testing the Control panel

It is necessary to check the functionality status of the front plate by first checking the information supplied on the screen
and LEDs and then by inspecting the efficiency of the command devices (user-interface buttons, access keys, etc.):
• Check the functionality status of the screen and ensure that the information provided is clear.
• Ensure that the descriptions of the various zones, points and system elements entered during the data-entry phase are
correct, and that the information provided on the screen clearly indicates any detectable conditions of danger.
• Check that there are no indications present of faults, alarms or anomalies of any type whatsoever. In the event of such
indications, proceed with the removal of the causes of faults and anomalies.
• Check the status the functionality of the LEDs and buzzer. The front panel provides a button for the simultaneous
activation of all the LEDs and buzzer thus allowing evaluation of their efficiency (refer to the description of the User
Interface).
• Check the efficiency of the front-plate buttons and keys.
• Check the status of the power-supply sources (mains and batteries) and the control panel current draw.
For control of the power-supply parameters you can:
- access the configuration menu (refer to paragraph 2.3) and touch the appropriate icon on the
configuration screen of the control panel.
- tap on the power grid icon on the status bar

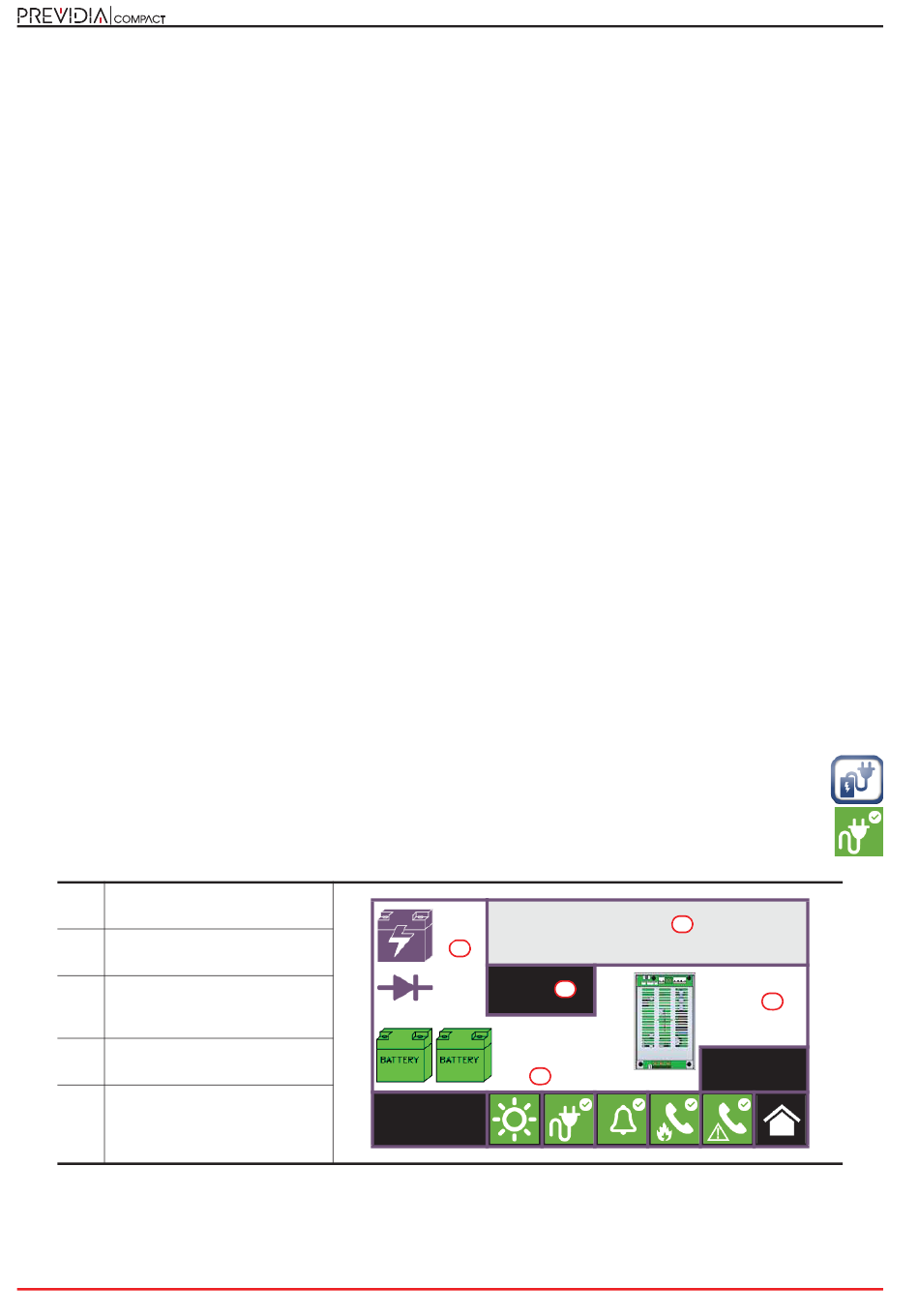

The sections show the voltages, currents and temperatures of the various elements:
Internal temperature and battery
[A]
charge voltages
Section containing a list of
[B]
current faults
Battery parameters (internal
[C]
resistance, voltage, status and
Voltage and output current of
[D]
the power supply
Button, available only for Access
Level 3 (installer), allows
[E]
immediate battery tests (which
normally runs every 10 minutes)
