3.9 Factory Cal

The XMTC comes completely preprogrammed from the factory for your particular application. Should it become
necessary to reprogram the meter, you can use the Factory Cal option.
IMPORTANT:
Do not use the Factory Cal option without referring to the Calibration Data Sheet enclosed with your
XMTC. Varying from the parameters on the sheet can result in problems with the XMTC and other
equipment.
From the Edit Functions menu (shown in Figure 10 on page 20), click on the Factory Cal option. A window similar to
Figure 39 below opens.
The option permits you to edit the number of points and the value of each individual point.

3.9.1 Edit # of Points

To edit the number of available points, click on Edit # of Points. A window similar to Figure 40 below opens.
Click on Add once for each point you wish to add, or on Delete once for each point you wish to remove. Then click on
Next Item/Enter to confirm the entry. (Click Previous Item or Exit Page to close the window without changing the
number of points.) You are then returned to the Factory Cal window, which displays the new number of points.
XMTC User's Manual

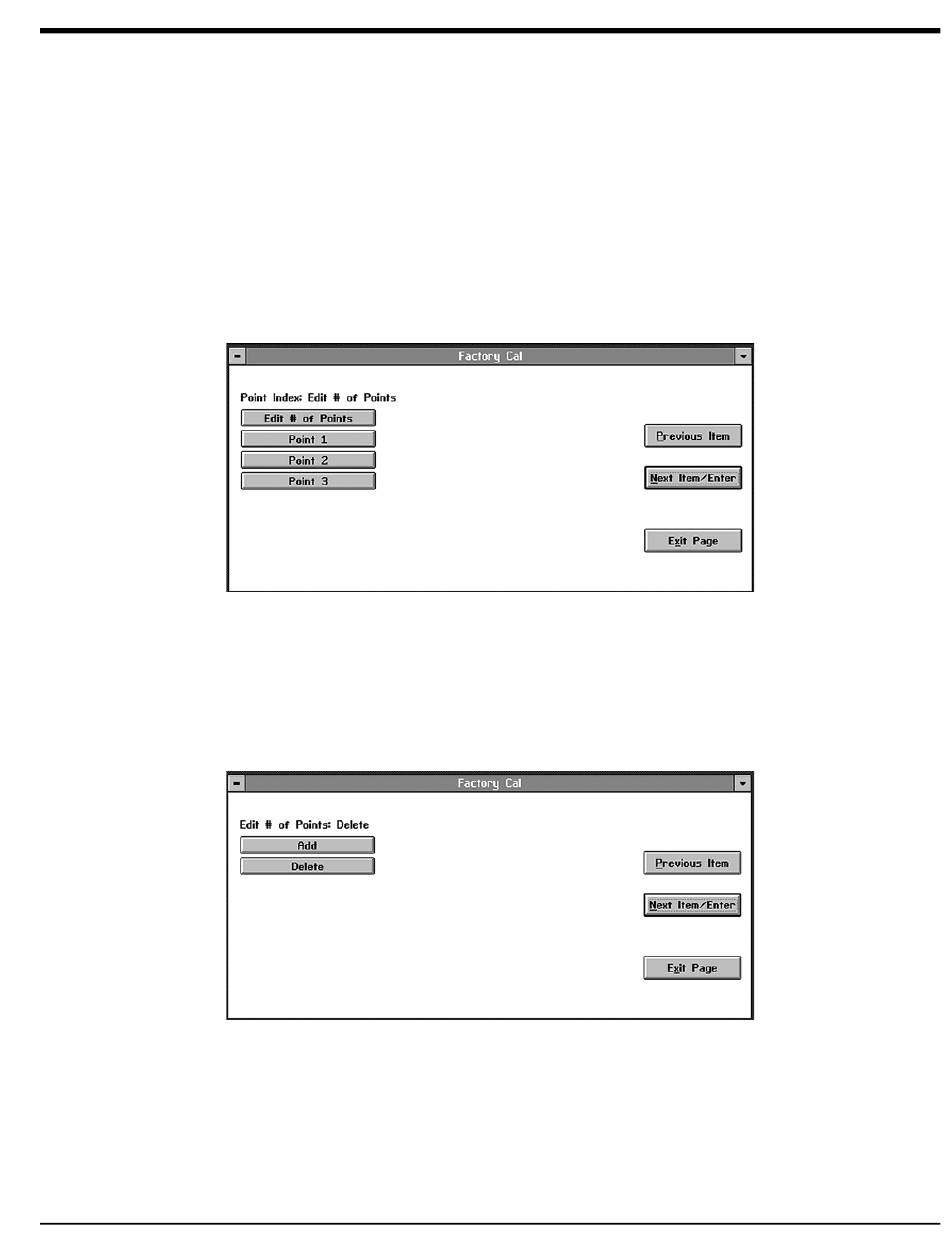

Figure 39: Factory Cal Window
Figure 40: Edit # of Points Window
