2.5 Connecting to Other Components

This section gives interconnection details for using other GE devices in conjunction with your XMTC.

2.5.1 PS5R-C24 Power Supply

The GE 24-Volt power supply converts 100/120/220/240 VAC to 24 VDC for use with the XMTC. Figure 9 below
shows an interconnection diagram for the XMTC and the PS5R-C24 power supply.
XMTC User's Manual
XMTC Transmitter
+Vin RTN 4-20+ 4-20-
TB1-1 TB1-2 TB1-3 TB1-4
Red Black White Green
GND
+24
VDC
PS5R-C24
24 Volt
Power Supply
Neut Line
AC2
GND AC1
Green White Black
Line
Neut
GND
AC2
AC1
AC Input

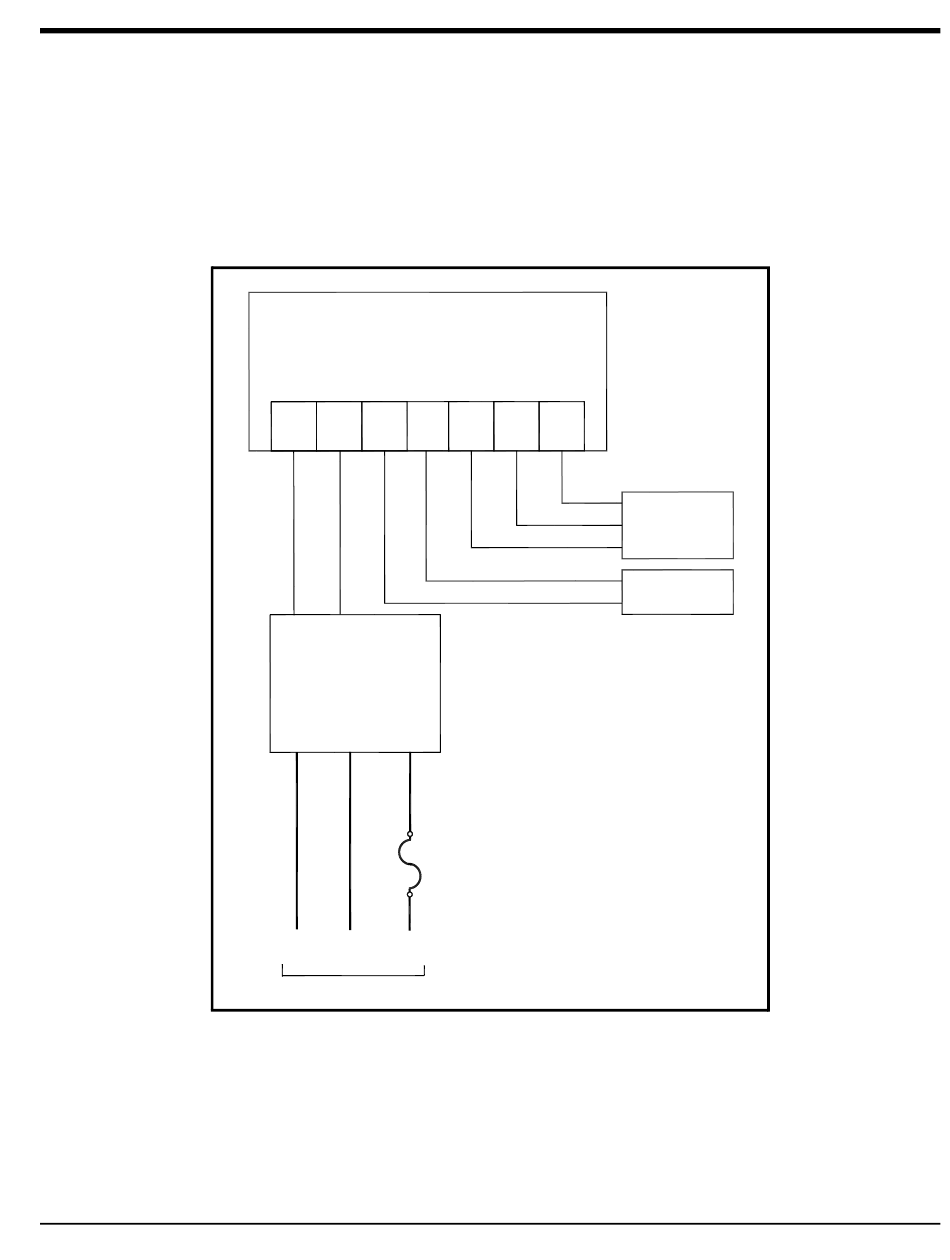

Figure 9: Interconnection Diagram
RX TX GND
TB2-1 TB2-2 TB2-3
Red White Green
Chapter 2. Installation
RS232
Terminal
or PC
Output
Device
