3.6.2 Configure Cal

The Configure Cal command enables you to change the field calibration type and parameters: the percentage of zero or
span gas, delay time before or after, and maximum total drift and drift of calibration. When you click on Configure Cal,
a window similar to Figure 15 below opens. Clicking on any option opens the window for that option, while clicking
on Next Item/Enter opens the menu listed on the status line above the options.

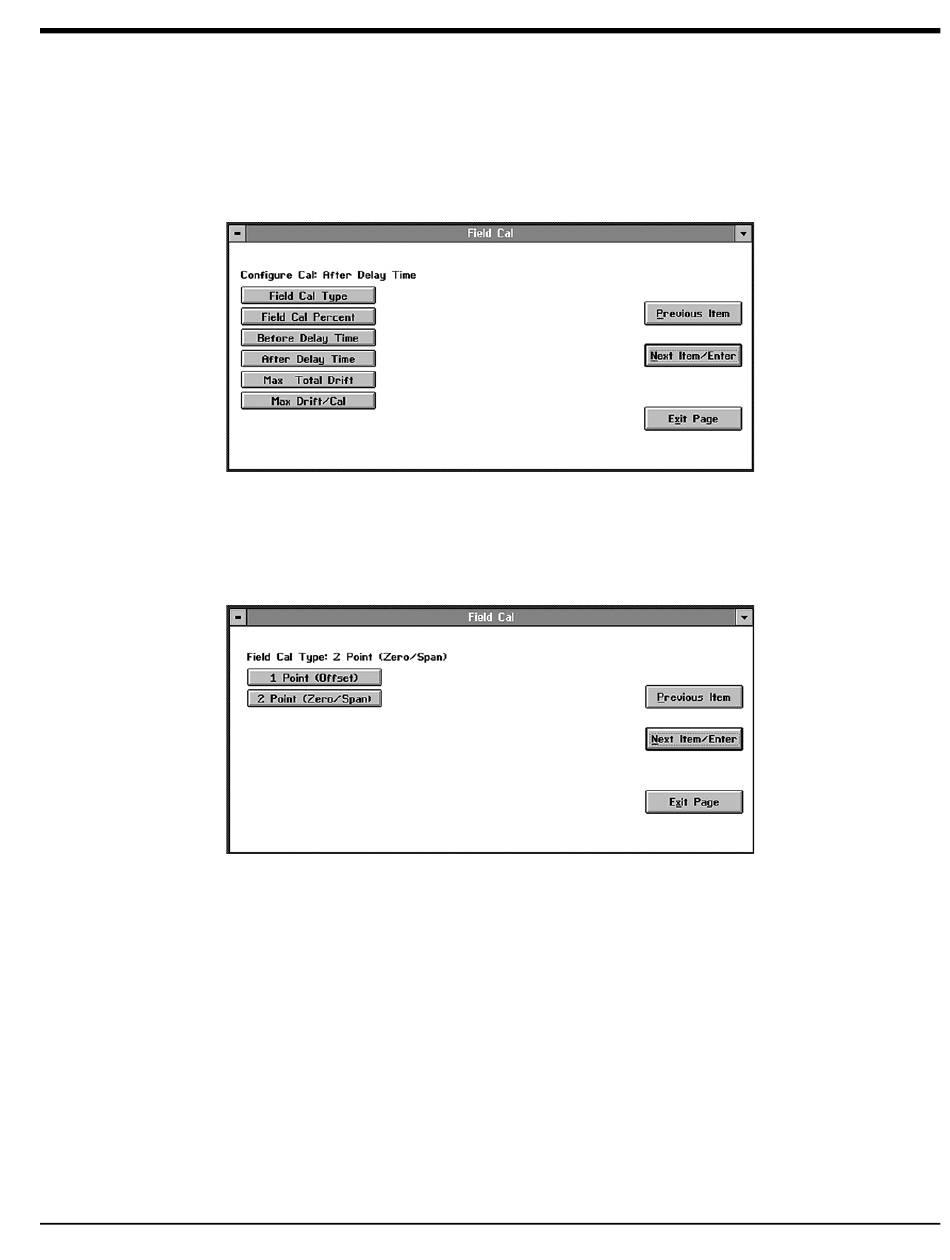

Figure 15: Configure Cal Window
3.6.2a Field Cal Type
The window for Field Cal Type is similar to Figure 16 below.
Figure 16: Field Cal Type Window
Click on 1 Point to select 1-Point (offset, or 1-gas) calibration, or on 2-Point to select 2-Point (zero/span, or 2-gas)
calibration. Then, click on any button on the right to return to the Configure Cal window.
