Appendix D. The Enhanced Advanced Option
D.5 Temperature Comp. (cont.)

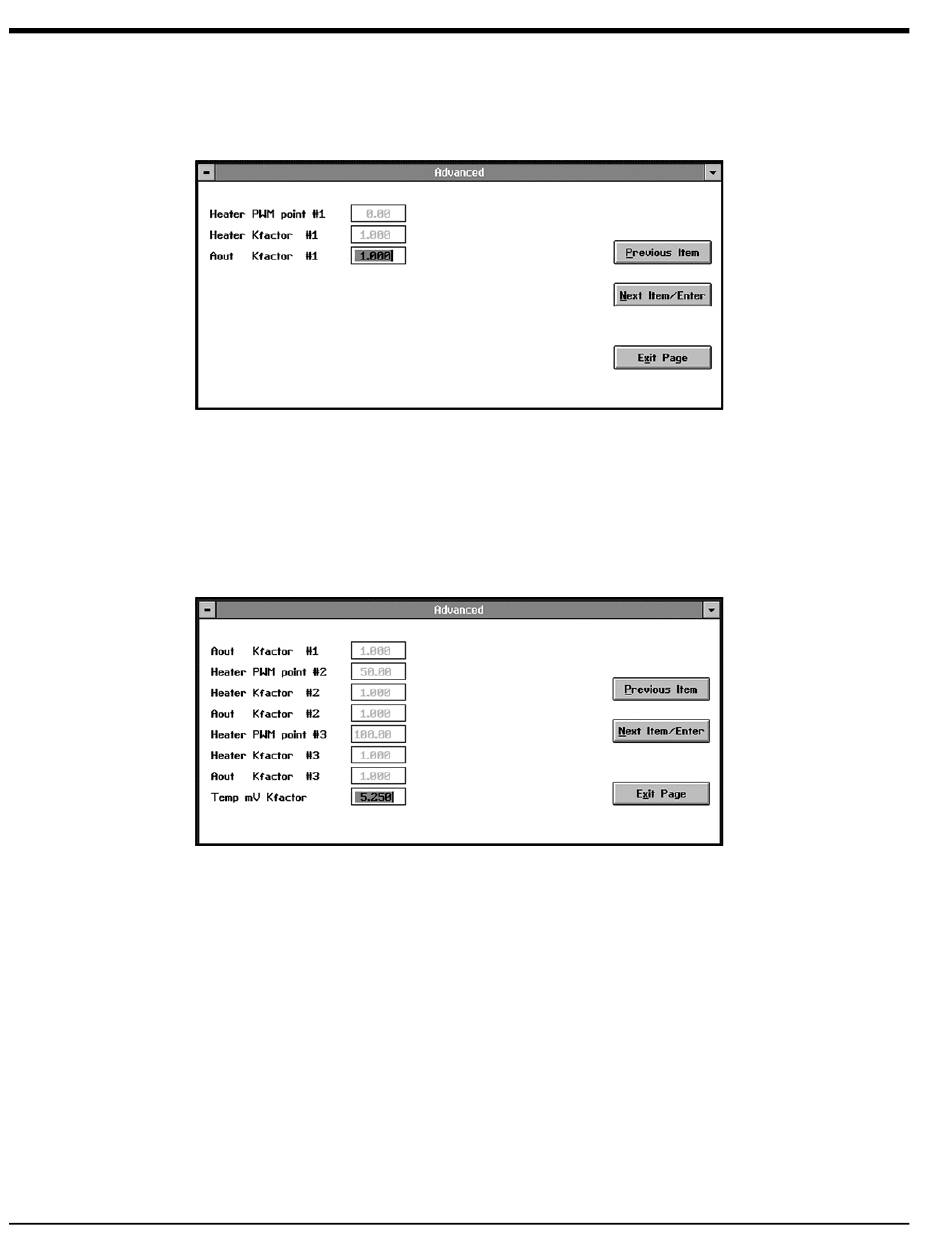

At the next prompt, enter the K factor for the analog output, as shown in Figure 86 below.
Figure 86: Aout K-factor Window
At the following series of prompts, enter the PWM point, the K-factor and the Aout K-factor for points #2 and #3. In
each case, enter the desired value and click on Next Item/Enter to confirm the entry.
temperature mV K-factor
At the final prompt, as shown in Figure 87 below, enter the , a compensation to the bridge
reading during ambient temperature transitions.
Figure 87: Temperature mV Kfactor Window
Enter the desired number and click on Next Item/Enter to confirm the entry. You are then returned to the Advanced
menu.
