3.6 Field Cal

When you select the Field Cal command, a window similar to the one in Figure 11 below opens.
The Field Cal command offers five options:
•
Perform Cal — enables you to calibrate the XMTC with IDM
•
Configure Cal — enables you to set the calibration type and parameters
•
Calibration Drifts — indicates drift percentages for the zero and span gases
•
Clear Calibration — enables you to clear the last calibration
•
Hold Last Value — causes the XMTC to hold the last value calibrated.
Clicking on any option opens that option, while clicking on Next Item/Enter opens the menu listed on the status line
above the options.

3.6.1 Perform Cal

Click on Perform Cal to open a window similar to Figure 12 below.
XMTC User's Manual

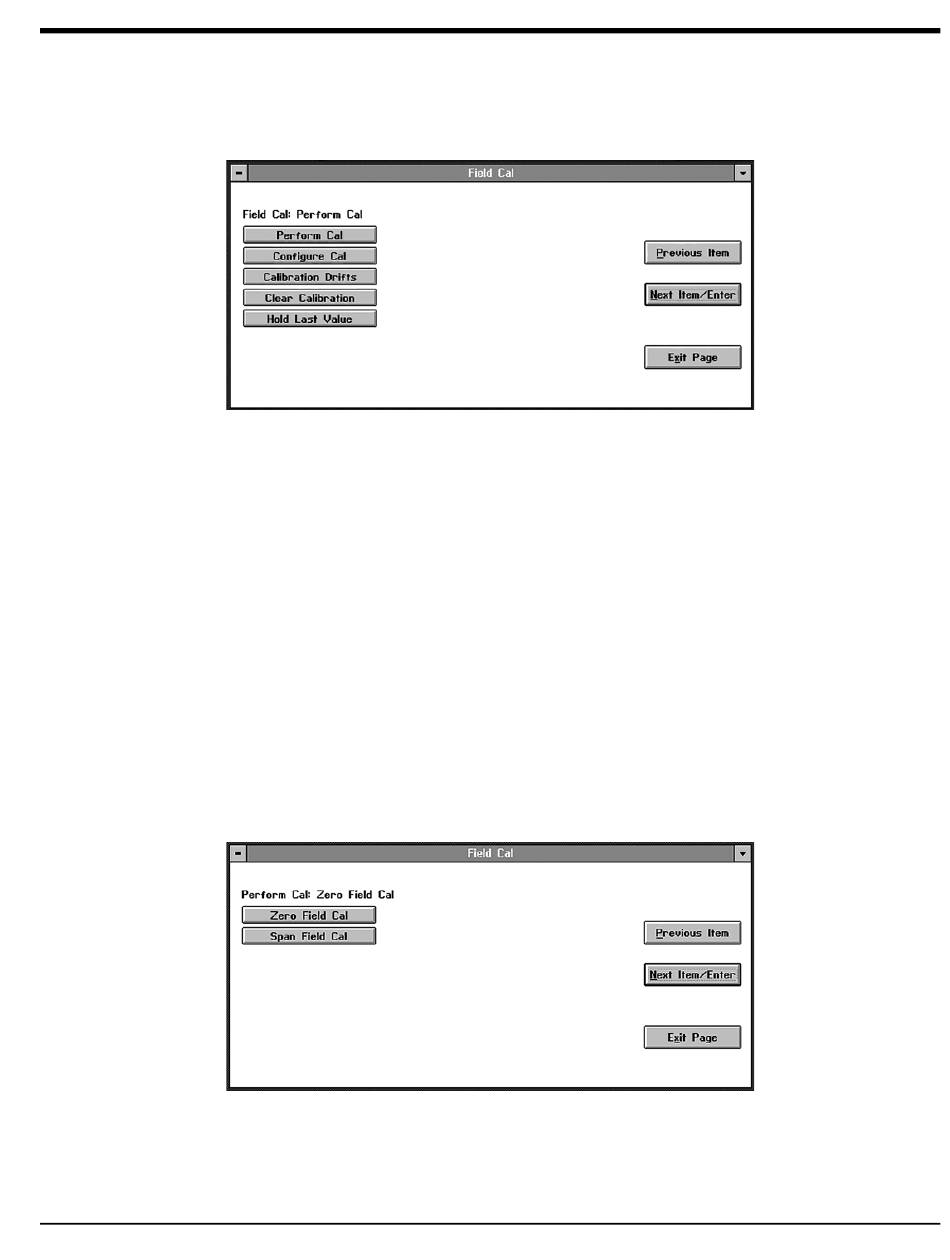

Figure 11: Field Cal Window
Figure 12: Perform Cal Window
