Chapter 3. Operation and Programming
3.6.2c Before Delay Time and After Delay Time

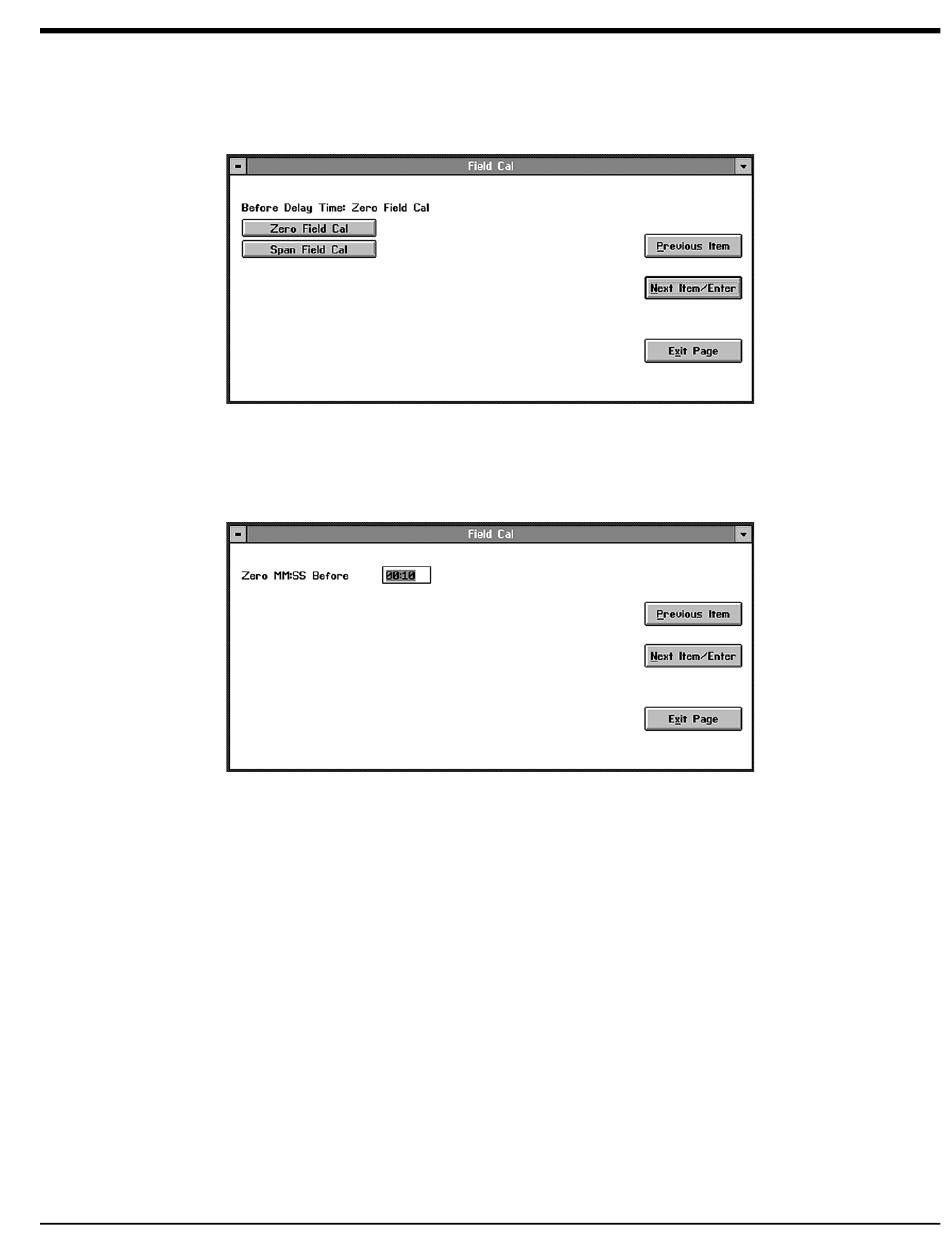

The windows for both Before Delay Time and After Delay Time are similar to Figure 19 below.
Figure 19: Before Delay Time Window
For either time, click on Zero Field Cal to enter the delay time for the zero calibration, or on Span Field Cal to enter the
time for the span calibration. A window similar to Figure 20 below opens.
Figure 20: Delay Time Entry Window
Enter the desired number of minutes and seconds in the text box, and click Next Item/Enter to confirm the entry. (Click
Previous Item or Exit Page to close the window without changing the percentage.) You are then returned to the
Configure Cal window.
