2.3 Energy Meter (Optional)

The Sungrow Energy Meter is installed next to the main switch to detect the
electrical measured values at the grid-connected point. It communicates with
the inverter via an RS485 connection. The dimensions are shown below.

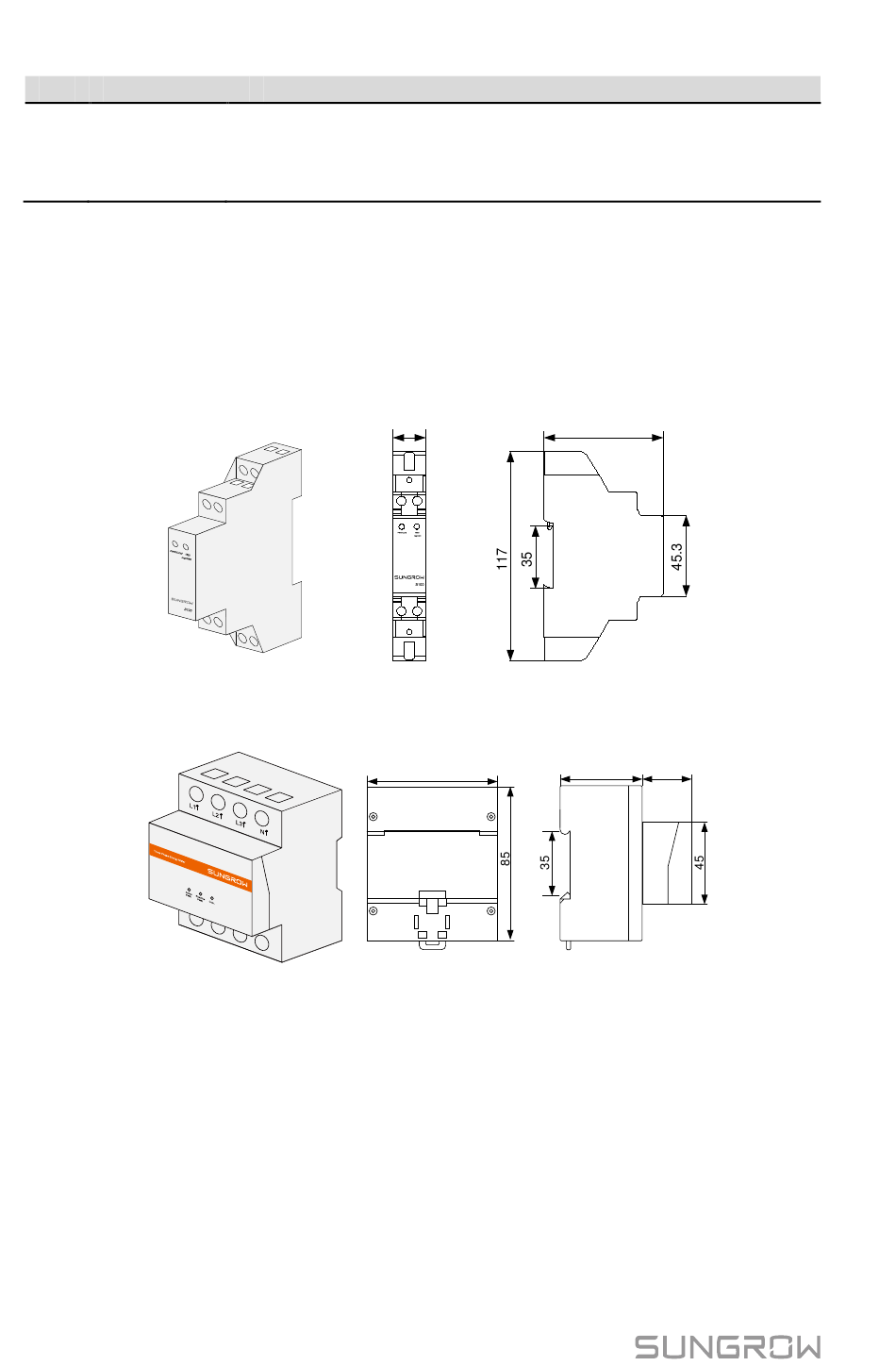

Fig. 2-5 single-phase Meter Dimensions (unit: mm)
Fig. 2-6 Three-phase Meter Dimensions (unit: mm)
8
Description
Green / red.
User can observe the colour and blinking frequency to get
the current state of the inverter. For detailed definition, see
Tab. 6-2.
18
Front view
Back view
65
Side view
72 45
Side view
