2 Product Introduction
1 2

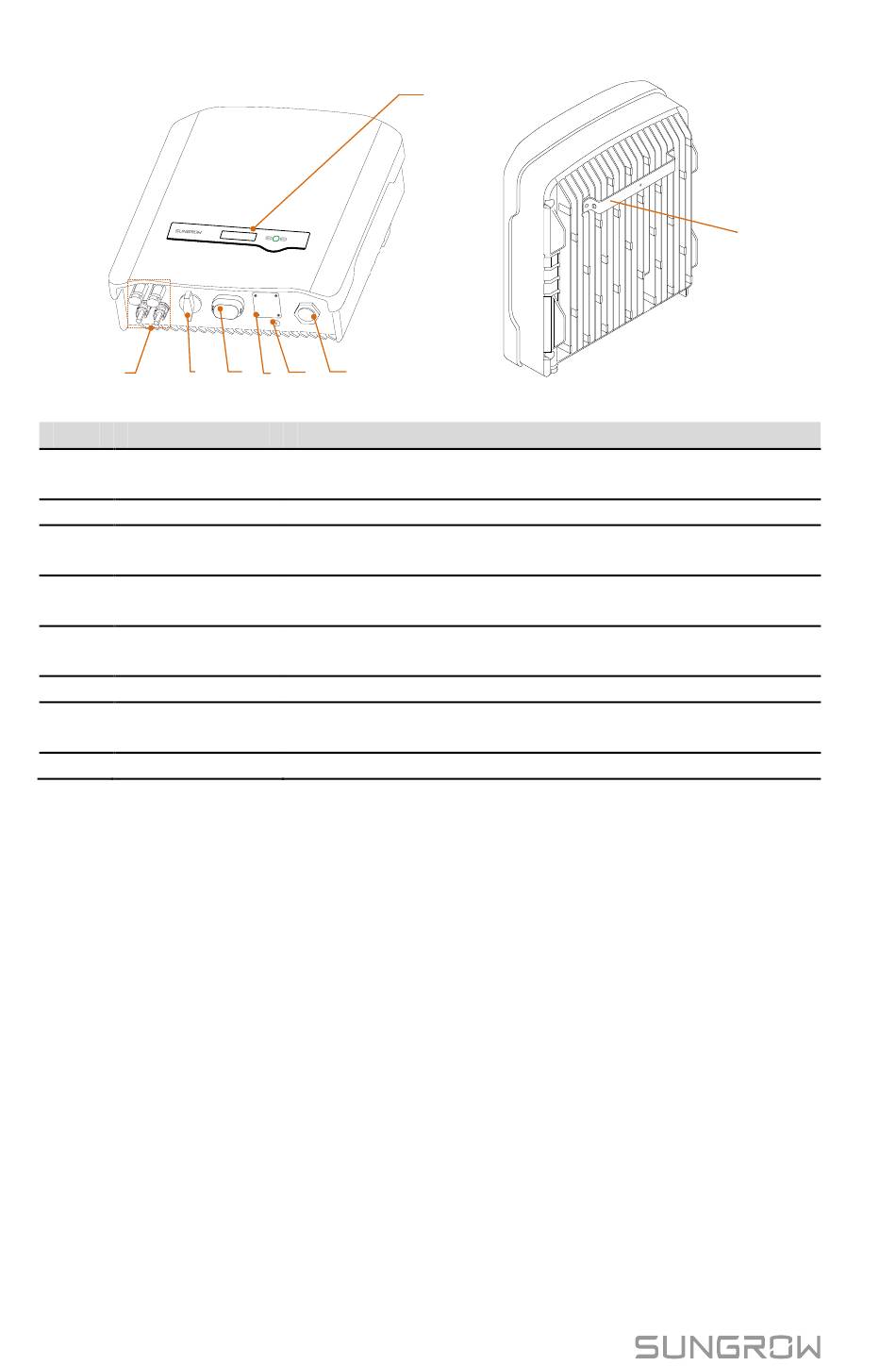

Fig. 2-2 Inverter Appearance (SG5K-D for reference)
Item Name
1 PV terminals
2 DC switch
RS485
3
terminal
Meter | DRM
4
terminal
Second PE
5
terminal
6 AC terminal
7 LCD panel
8 Mounting rack
6
6
3
5
4
Description
Positive and negative DC input connectors.
One or two or three pairs, depending on inverter type.
To disconnect the DC current safely.
Can be connected to Wi-Fi communication module.
Left connector is intended for energy meter, right
connector is reserved.
For reliable grounding.
To feed power into the utility grid.
The display and two buttons can be used to access
current operating data or change inverter settings.
For mounting the inverter to the wall mounting bracket.
7
